Configuring the RADIUS server (IMCv5)
The following takes the IMC (the IMC versions are IMC PLAT 5.0 and IMC UAM 5.0) as an example
to illustrate the basic configurations of the RADIUS server.
1. Add an access device:
a. Click the Service tab in the IMC Platform.
b. Select User Access Manager > Access Device Management from the navigation tree.
c. Click Add.
d. On the page that appears, enter 12345678 as the Shared Key, keep the default values for
other parameters, select or manually add the access device with the IP address 10.18.1.1,
and click OK.

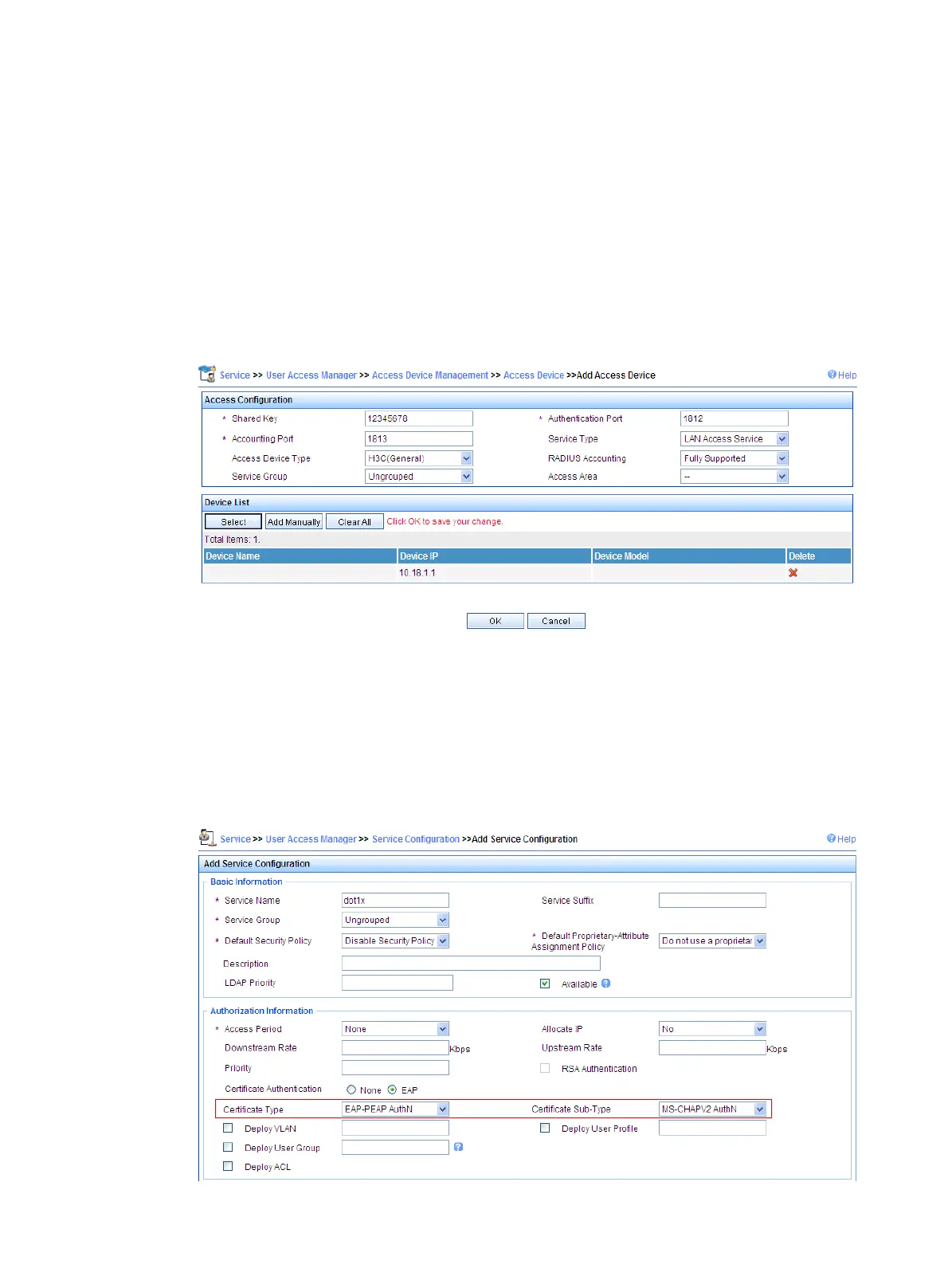

Figure 84 Adding access device
2. Add a service:
a. Click the Service tab.
b. Select User Access Manager > Service Configuration from the navigation tree.
c. Click Add.
d. On the page that appears, set the service name to dot1x, select EAP-PEAP AuthN as the
Certificate Type, and MS-CHAPV2 AuthN as the Certificate Sub-Type, and click OK.
Figure 85 Adding a service
