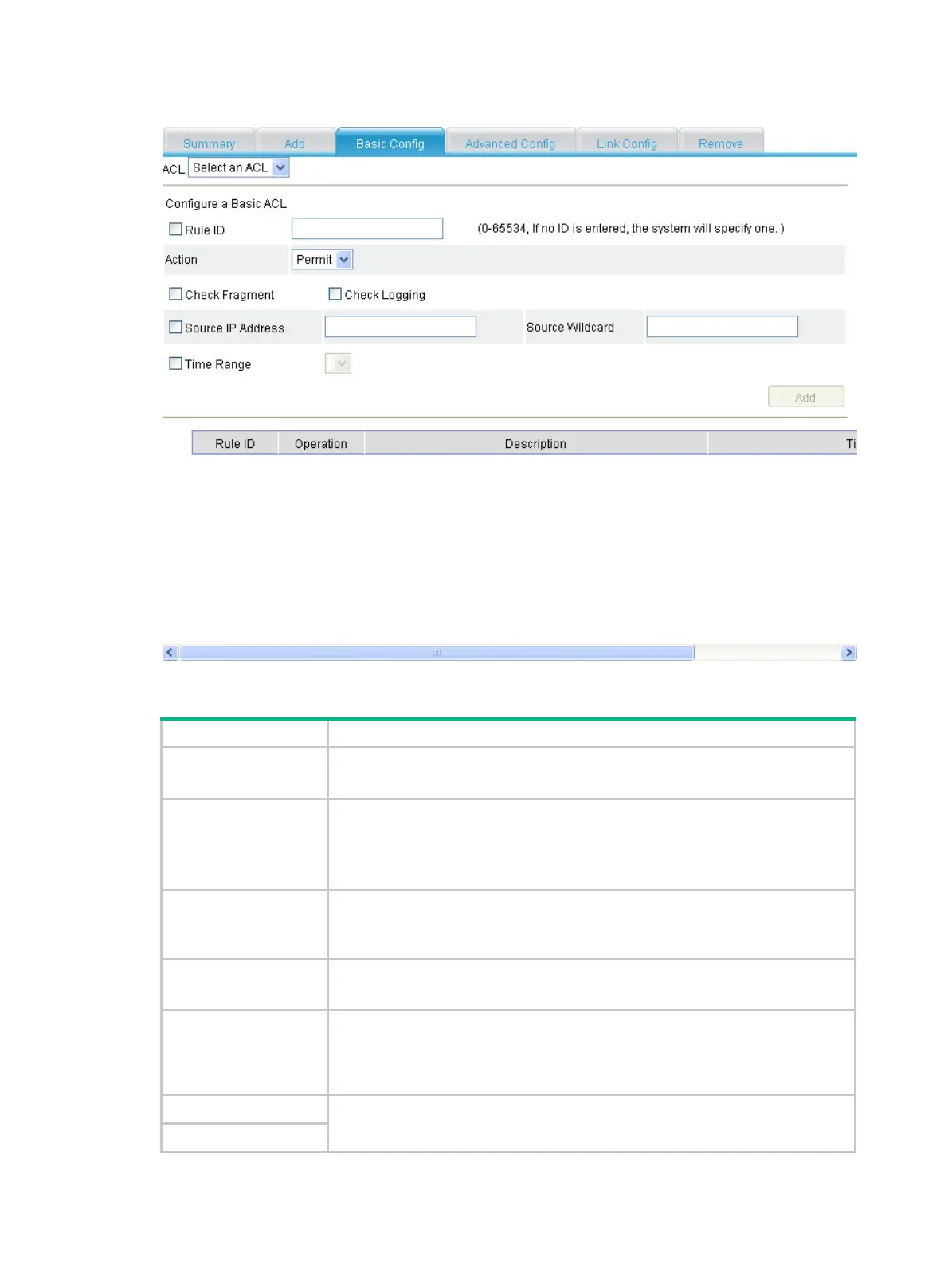

Figure 236 The page for configuring an basic IPv4 ACL
Table 112 Configuration items
Item Description
ACL
Select the basic IPv4 ACL for which you want to configure rules.
ACLs available for selection are basic IPv4 ACLs.
Rule ID
Select the
Rule ID
box, and enter a number for the rule.
If you do not specify the rule number, the system will assign one automatically.
If the rule number you specify already exists, the following operations modify the
configuration of the rule.
Action
Select the action to be taken on the IPv4 packets matching the rule:
• Permit—Allows matched packets to pass.
• Deny—Drops matched packets.
Check Fragment
Select this box to apply the rule only to non-first fragments.
If you do not select this box, the rule applies to all fragments and non-fragments.
Check Logging
Select this box to keep a log of matched IPv4 packets.
A log entry contains the ACL rule number, action on the matched packets,
protocol that IP carries, source/destination address, source/destination port
number, and number of matched packets.
Source IP Address
Select the
Source IP Address
box, and enter a source IPv4 address and source
wildcard, in dotted decimal notation.
Source Wildcard
