230

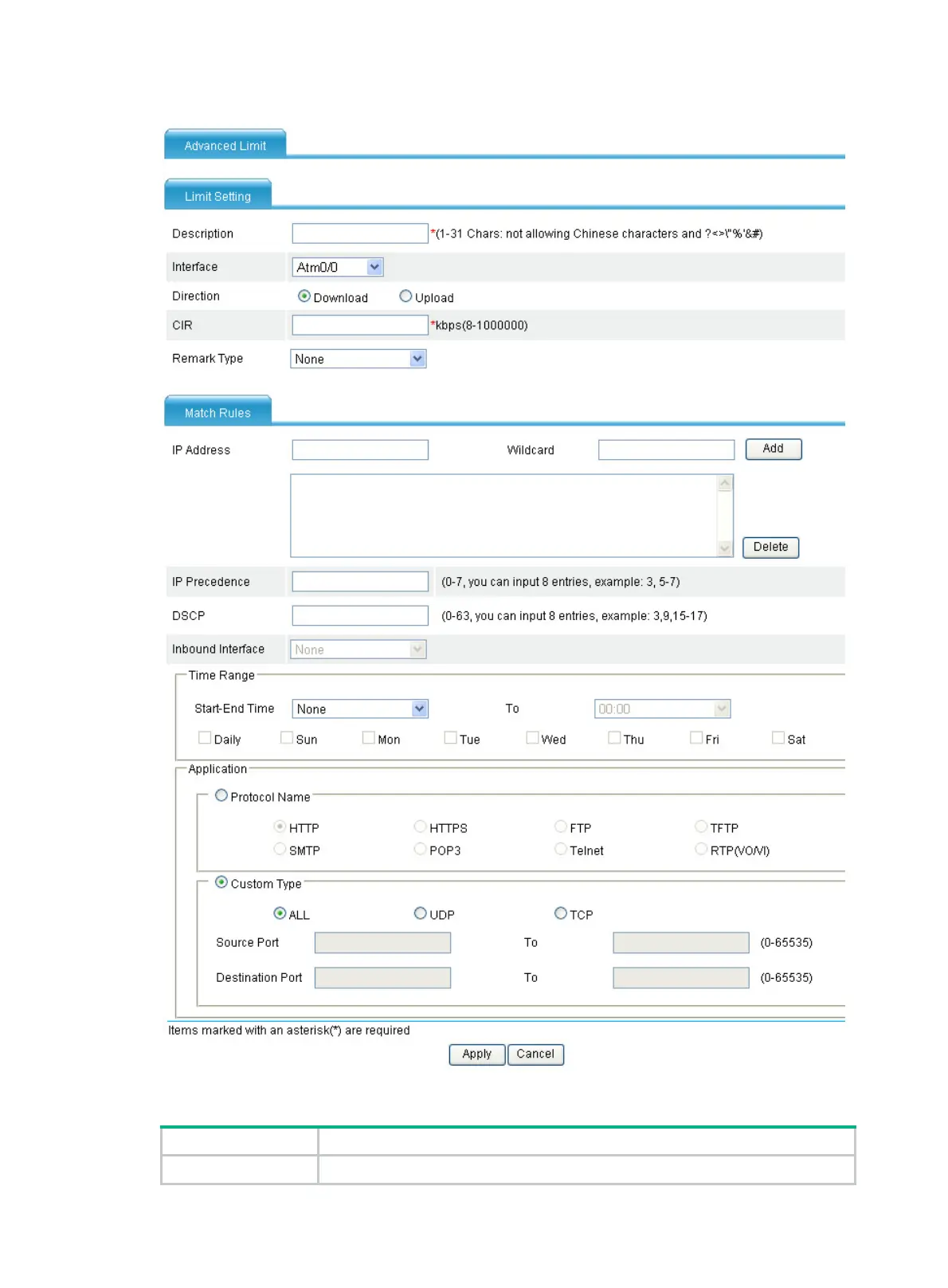

Figure 242 Advanced limit setting

Table 116 Configuration items

Item Description

Description Configure a description for the advanced limit policy for management sake.
