157

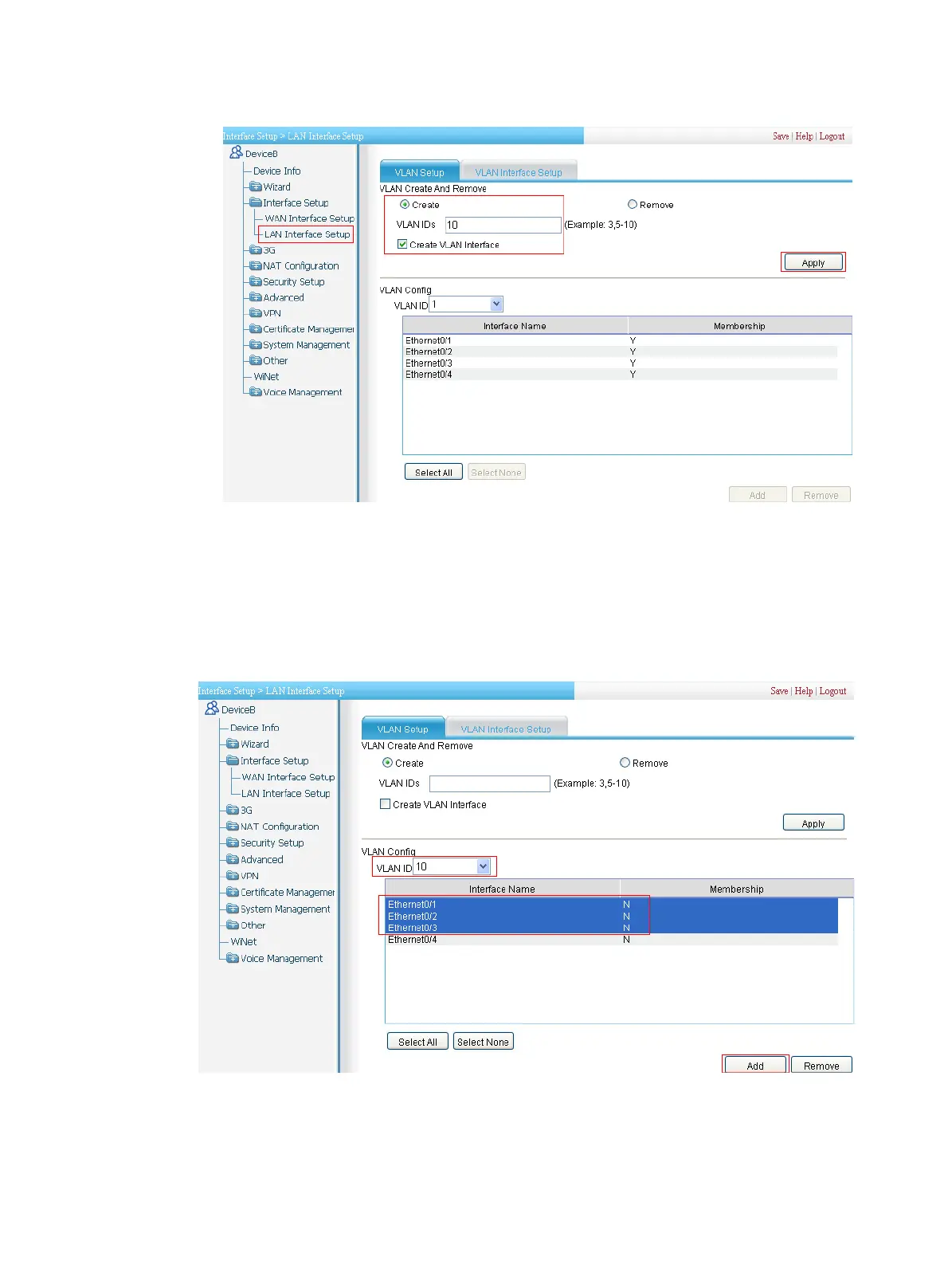

Figure 544 Creating VLAN 10 and VLAN-interface 10
a. Select the Create option.
b. Enter 10 for VLAN IDs.
c. Select the Create VLAN Interface box.
d. Click Apply.
# Assign Ethernet 0/1, Ethernet 0/2, and Ethernet 0/3 to VLAN 10.
Figure 545 Assigning interfaces to VLAN 10
a. On the VLAN Setup page, select 10 in the VLAN Config field.
b. Select Ethernet0/1, Ethernet0/2, and Ethernet0/3 from the list.
c. Click Add.
