409

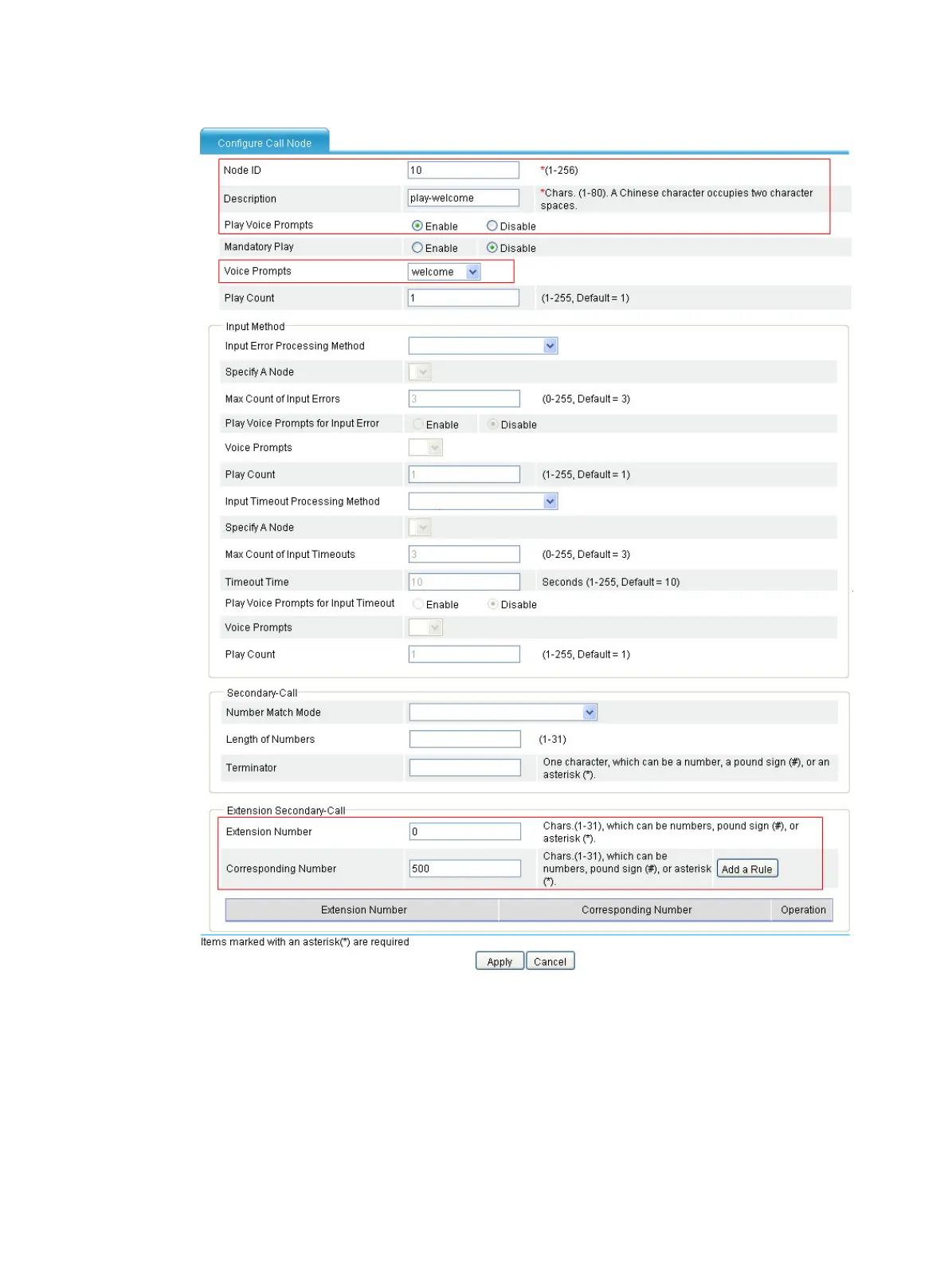

Figure 802 Configuring a call node

a. Type 10 for Node ID.

b. Type play-welcome for Description.

c. Select Enable for Play Voice Prompts; select welcome from the Voice Prompts list.

d. Select 0 for Extension Number.

e. Select 500 for Corresponding Number.

f. Click Apply.

For other settings, see Configuring Router B.
