5. Remove the four shipping brackets that secure the router to the shipping crate platform using a
9/16-in. (14 mm) socket wrench, and a number 2 Phillips screwdriver, and set them aside.
6. Align the left router transport mounting plate and wheel assembly (indicated by left arrow) with the
holes on the left side of the chassis (see Figure 104 on page 267).
7. Using a number 3 Phillips screwdriver tighten the captive screws to secure the router transport mounting
plate and wheel assembly to the chassis.
8. Align the right router transport mounting plate and wheel assembly (indicated by right arrow) with the
holes on the right side of the chassis (see Figure 104 on page 267).
9. Using a number 3 Phillips screwdriver tighten the captive screws to secure the router transport mounting
plate and wheel assembly to the chassis.

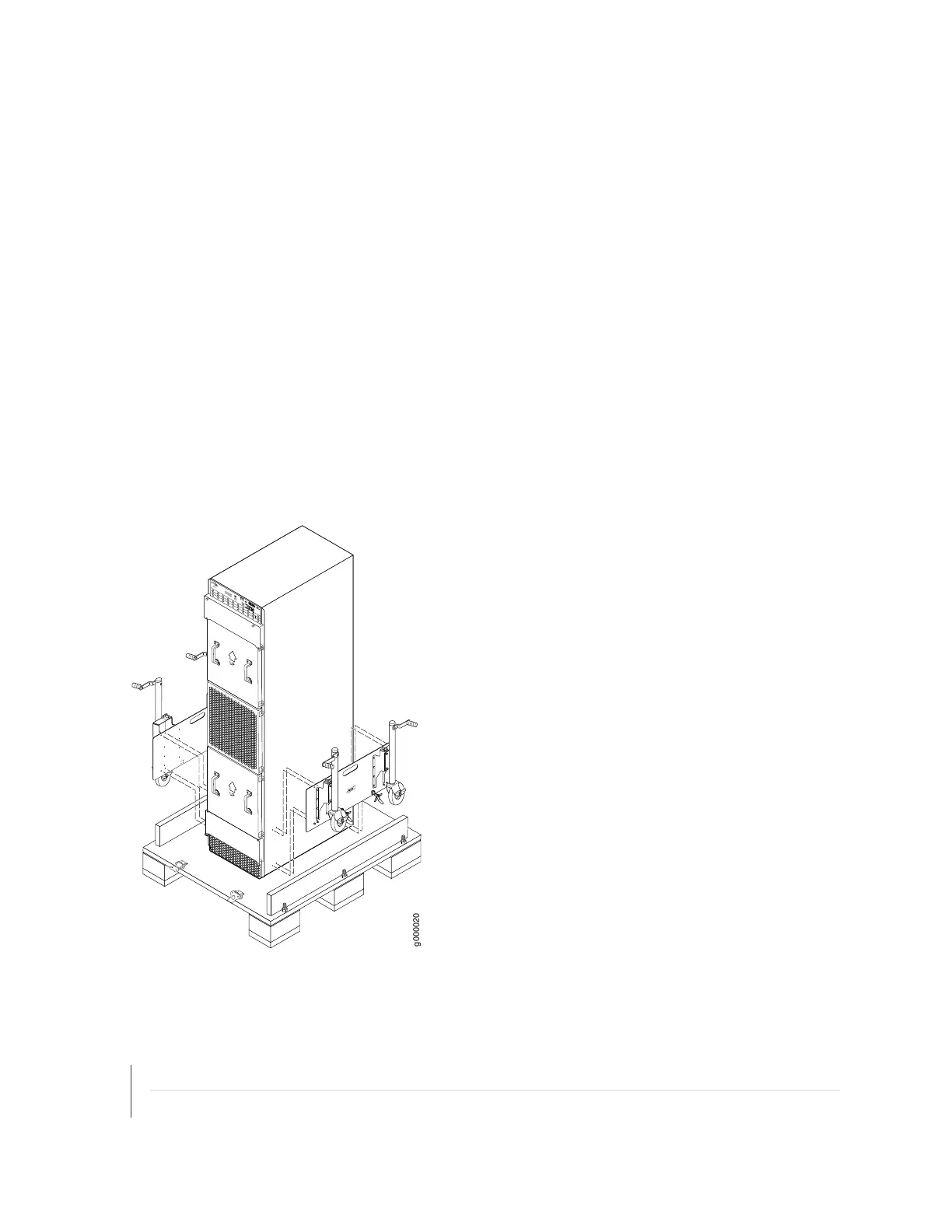

Figure 104: Installing the Router Transport Kit onto the MX2020
RE0
RE1
MASTER
ONLINE
OFFLINE
PSM
1
2
3
4
5
6
7
8
0
10
11
12
13
14
15
16
17
9
MX2200
LC
CB-RE
LC
SFB
10
0
0
11
0
1
12
1
2
13
2
3
14
3
4
15
4
5
16
5
6
17
6
7
18
7
8
19
1
9
LC
CB-RE
LC
SFB
g000020
RELATED DOCUMENTATION
Overview of Preparing the Site for the MX2020 Router | 121
Installing the MX2020 Router Using a Router Transport Kit | 270
267
