CAUTION: Before front mounting the router in a rack, have a qualified technician
verify that the rack is strong enough to support the router's weight and is adequately
supported at the installation site.
To install the MX2020 using a router transport kit:
1. Install the winch strap plate to the rear of the router using the four captive screws, and tighten (see
Figure 107 on page 271).

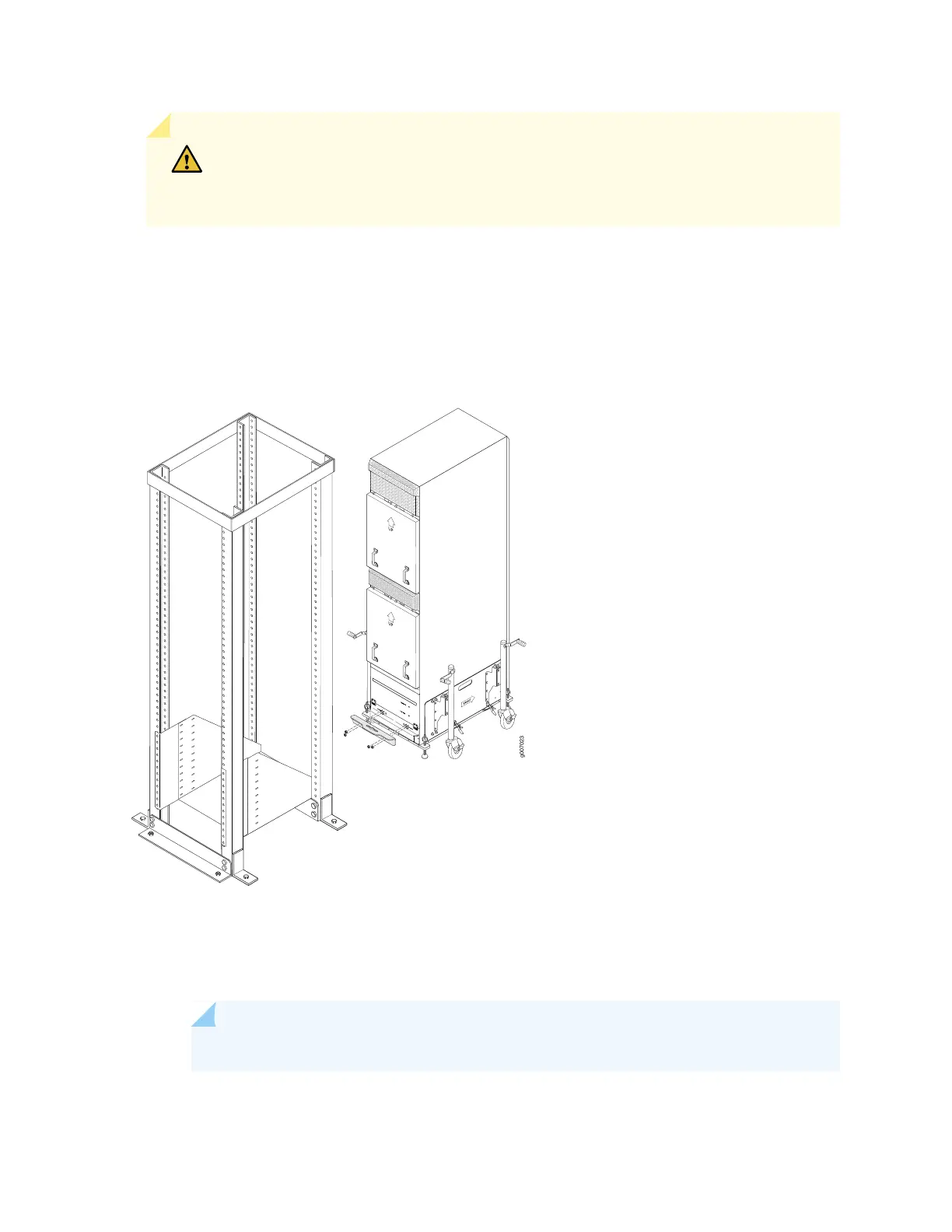

Figure 107: Installing Winch Strap Plate
2. Using a four person team, transport the router to the rack installation location and center it in front of
the mounting shelf. See “MX2020 Moving Requirements and Guidelines Using a Router Transport Kit”
on page 142.
NOTE: A minimum of 38 in. (96.5 cm) of clearance is required to roll the chassis sideways.
