KAESER SIGMA CONTROL 2 User Manual

1.2 Display elements

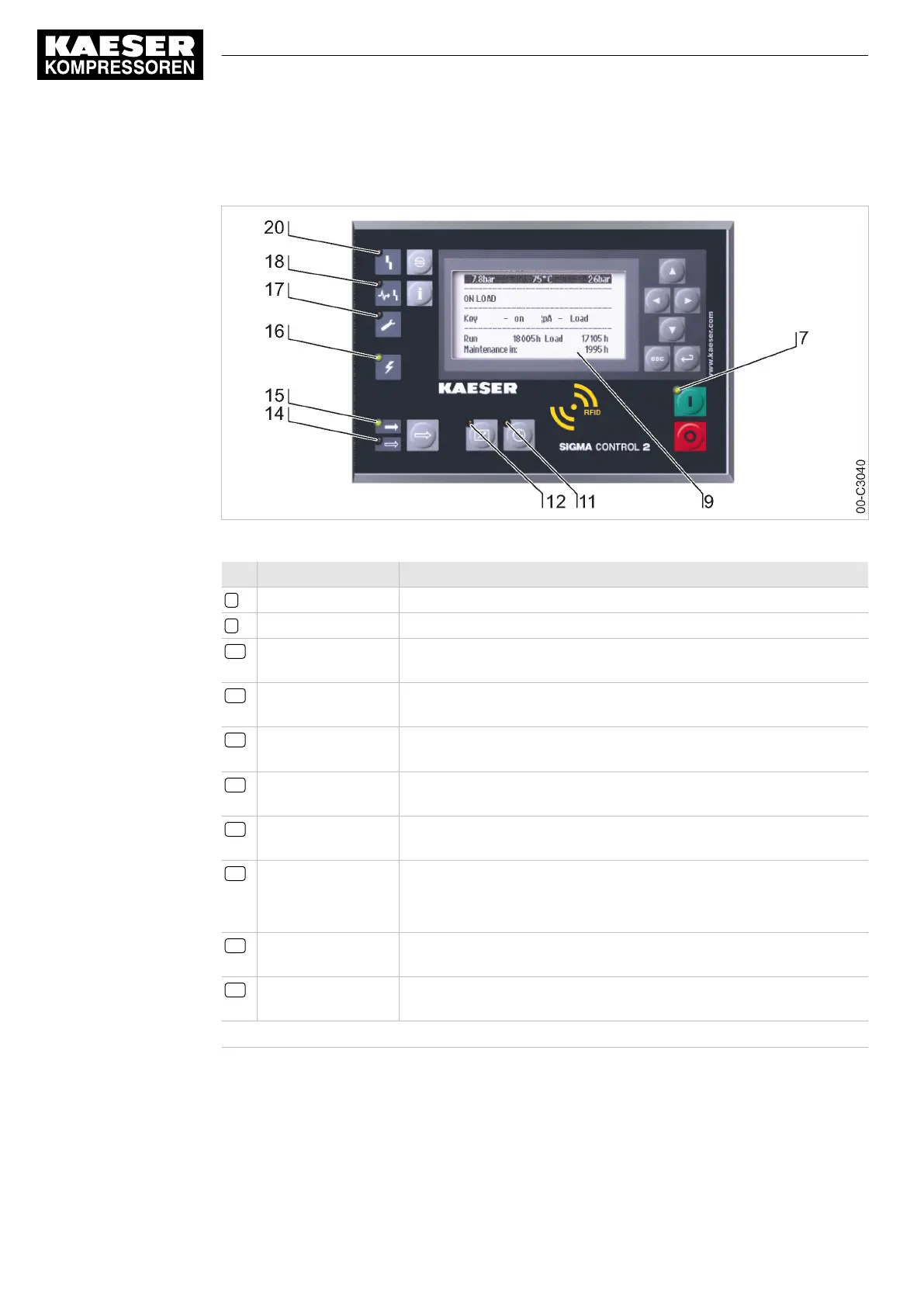

Fig. 2 Display elements
Item Designation Function
7 ON Indicator illuminates in green when the machine is switched on.
9 Display Graphic display with 8 lines and 30 characters per line.
11 Timer control Illuminates continuously in green when the machine is controlled by
the timer.
12 Remote control Illuminates continuously in green when the machine is controlled re‐
motely.
14 IDLE Illuminates continuously in green when the machine is running in IDLE.
Flashes when the «LOAD/IDLE»
12)
key is pressed
15 LOAD Illuminates continuously in green when the machine is running
in LOAD.
16 Controller voltage Illuminates continuously in green when voltage is supplied to the con‐
troller.
17 Warning Flashes yellow in the following situations:
■ Maintenance required
■ Warning message
18 Communication
error
Illuminates continuously in red to indicate an error with a communica‐
tion connection, without shutting the machine down.
20 Alarm Flashes red to indicate a fault with the machine.
Illuminates continuously in red after message has been acknowledged.
12)
not on AIRTOWER
Tab. 2 Display elements
1 SIGMA CONTROL 2 Quick reference guide
1.2 Display elements
2
User Manual Controller
SIGMA CONTROL 2 SCREW FLUID ≥5.1.2 No.: 9_9450 13 USE

KAESER SIGMA CONTROL 2 Specifications

General

Controller Type	Microprocessor-based
Model	SIGMA CONTROL 2
Manufacturer	KAESER
Input Voltage	24 V DC
Protection Class	IP54
Communication Protocols	Modbus, Profibus
Data Logging	Comprehensive data logging
Remote Monitoring	Yes
Communication Interface	Ethernet
