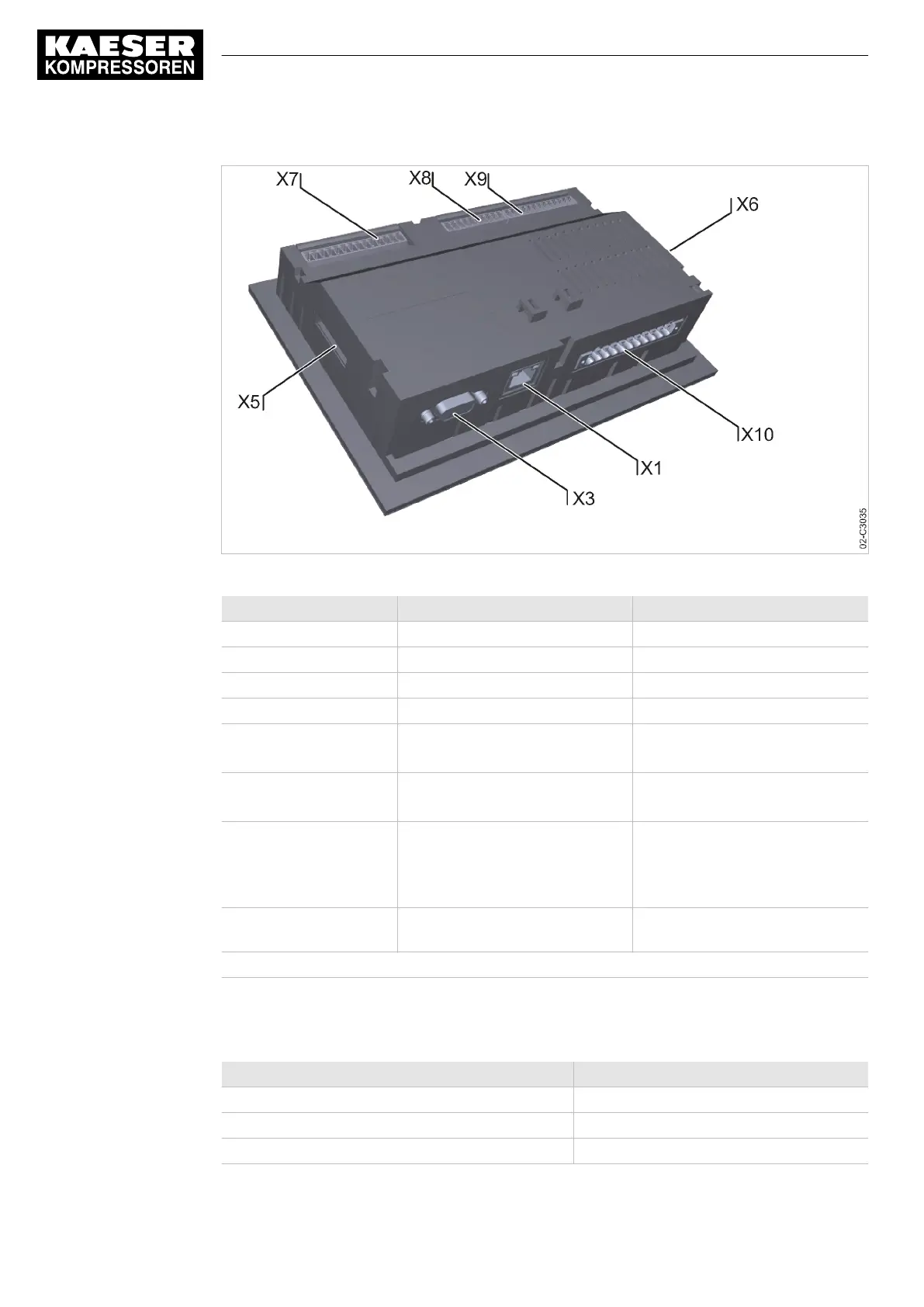

Fig. 4 MCSIO interfaces
Identification Interface Connection
X1 Ethernet 10/100 Base T RJ 45 socket
X3 RS485–FC (USS interface) 9-pole SUB-D socket
X5 SD card, SD card slot SD/SDHC card
X6 FG Functional ground (FG)
X7 24 VDC, DII Power supply 24 VDC
Digital inputs DII1.00–DII1.05
X8 DII/DOT Digital inputs DII1.06–DII1.07
Digital outputs DOT1.00–DOT1.01
X9 AII/AIR Analog input current 0–20 mA,
AII1.00–AII1.01
Analog input resistor AIR1.00–
AIR1.01
X10 DOR Digital output relay 250 VAC, 4 A
DOR1.00–DOR1.04
The positions of the interfaces X1–X10 are marked on the rear of the controller.
Tab. 12 MCSIO interfaces
Identification with RFID Equipment Card
Feature Value
Hardware on the SIGMA CONTROL 2 controller RFID write/read device
Hardware (external) RFID Equipment Card
Recognition distance [in.] Max. 2
3 Technical Data
3.1 Controller SIGMA CONTROL 2
12
User Manual Controller
SIGMA CONTROL 2 SCREW FLUID ≥5.1.2 No.: 9_9450 13 USE

KAESER SIGMA CONTROL 2 Specifications

General

Controller Type	Microprocessor-based
Model	SIGMA CONTROL 2
Manufacturer	KAESER
Input Voltage	24 V DC
Protection Class	IP54
Communication Protocols	Modbus, Profibus
Data Logging	Comprehensive data logging
Remote Monitoring	Yes
Communication Interface	Ethernet
