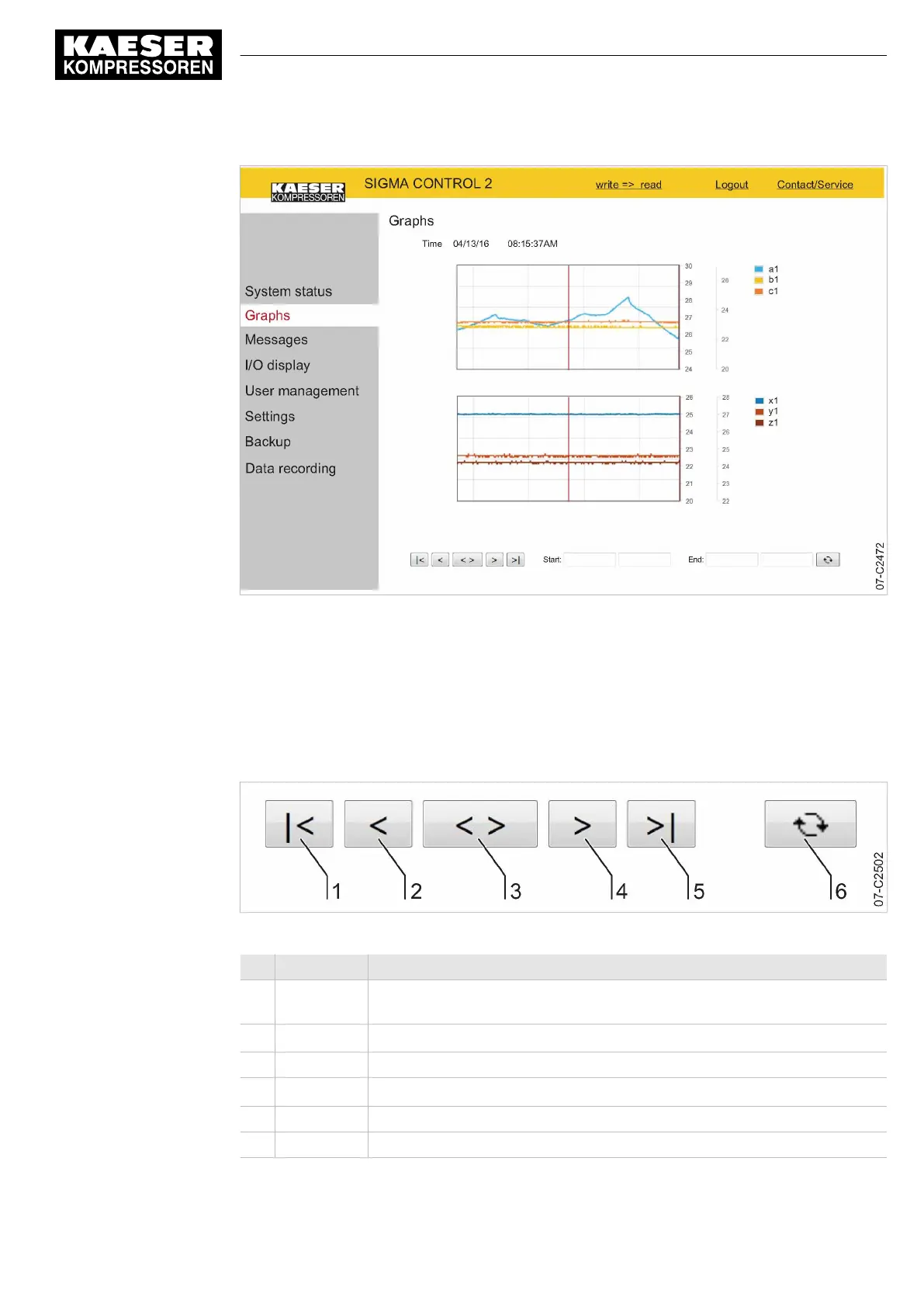

Fig. 20 Graphs (illustration similar)
2. Check the displayed data.
8.3.3.1 Zoom function
Use the Zoom function to enlarge significant curve developments:
Highlight a specific area within the graph by drawing a rectangle with the mouse pointer pressed.
The selected area will be enlarged as soon as the mouse pointer is released.
Fig. 21 Arrow keys
Item Description Function
1 «Start» Display the oldest data in the cache memory or load the data from the previ‐
ous 20 minutes from the SD card
2 «Scroll left»
Shift the display area by
1
/
3
to the left
3 «Zoom-out» Time range is enlarged
4 «Scroll right»
Shift the display area by
1
/
3
to the right
5 «End» Display of newest data
6 «Refresh» Load and display the entered machine data from start time to end time
Tab. 52 Arrow key functions
8 Initial Start-up
8.3 Using KAESER CONNECT
No.: 9_9450 13 USE
User Manual Controller
SIGMA CONTROL 2 SCREW FLUID ≥5.1.2
77
