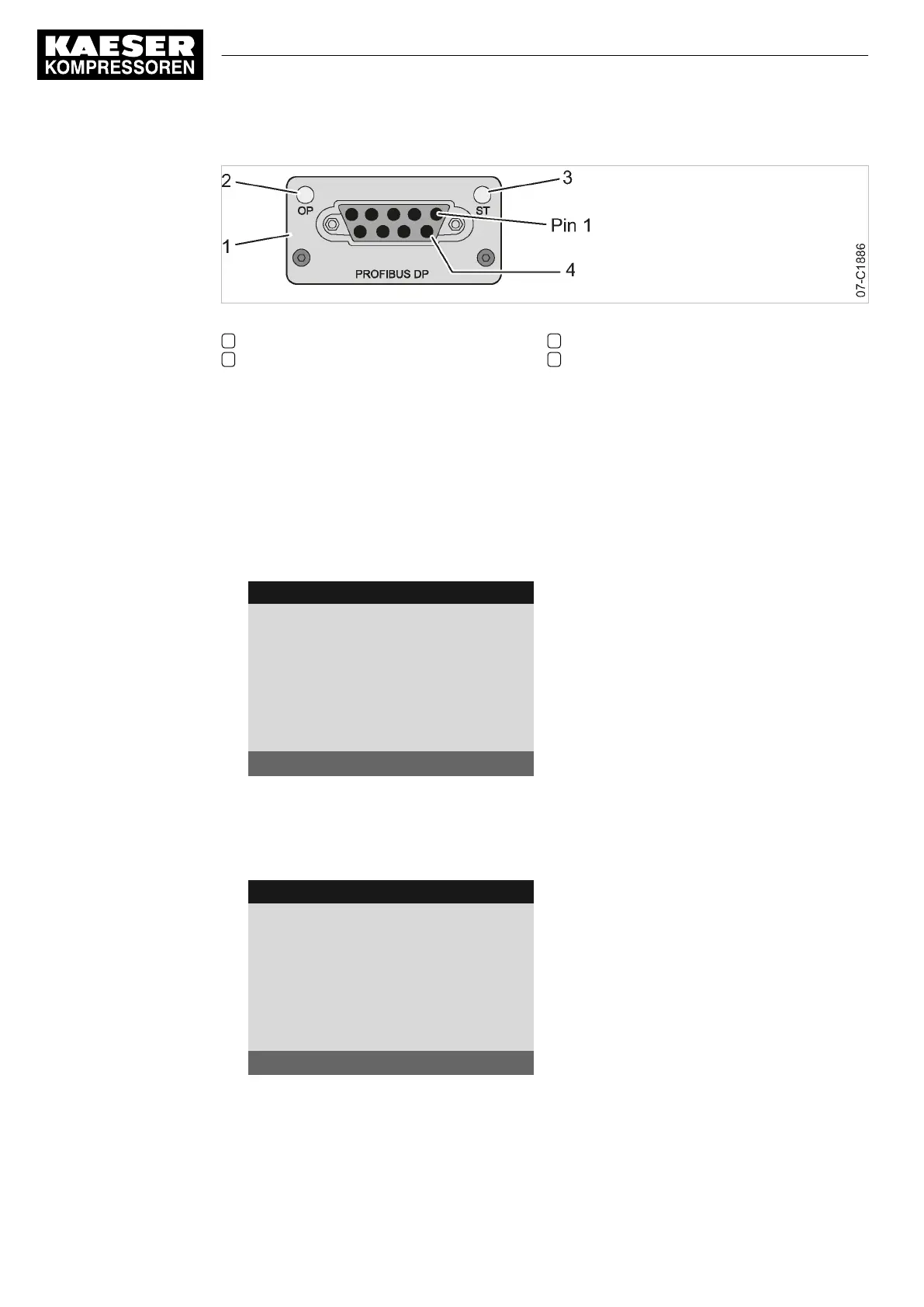

Fig. 34 Front plate communication module PROFIBUS
1 Communication module PROFIBUS
2 Operation LED
3 Status LED
4 PROFIBUS-Interface
➤ Proceed as shown.
Activate the communications module
1. Open the 8.2 <Communication – Com-Module> menu.
The Com-Module menu is displayed
2. Use «Up» or «Down» to select the Com-Moduleactive line.
3. Press «Enter».
The Com-Module active check box flashes.
8 8 p s i 0 8 : 1 5 A M 1 7 6 ° F
Header
8.2 Com-Module
Menu
Status Counter 1
Com-Module deactivated
------------------------------
Type None
Send/receive
Com-Module active : ☐
Active line
4. Press the «Up» key.
The check box is activated.
5. Press «Enter».
The communication module is activated.
8 8 p s i 0 8 : 1 5 A M 1 7 6 ° F
Header
8.2 Com-Module
Menu
Status Counter 1
Com-Module deactivated
------------------------------
Type PROFIBUS
Send/receive
Com-Module active : ☑
Active line
6. Press «Escape» repeatedly to leave this menu.
8 Initial Start-up
8.10 Configuring the machine for master control
128
User Manual Controller
SIGMA CONTROL 2 SCREW FLUID ≥5.1.2 No.: 9_9450 13 USE
