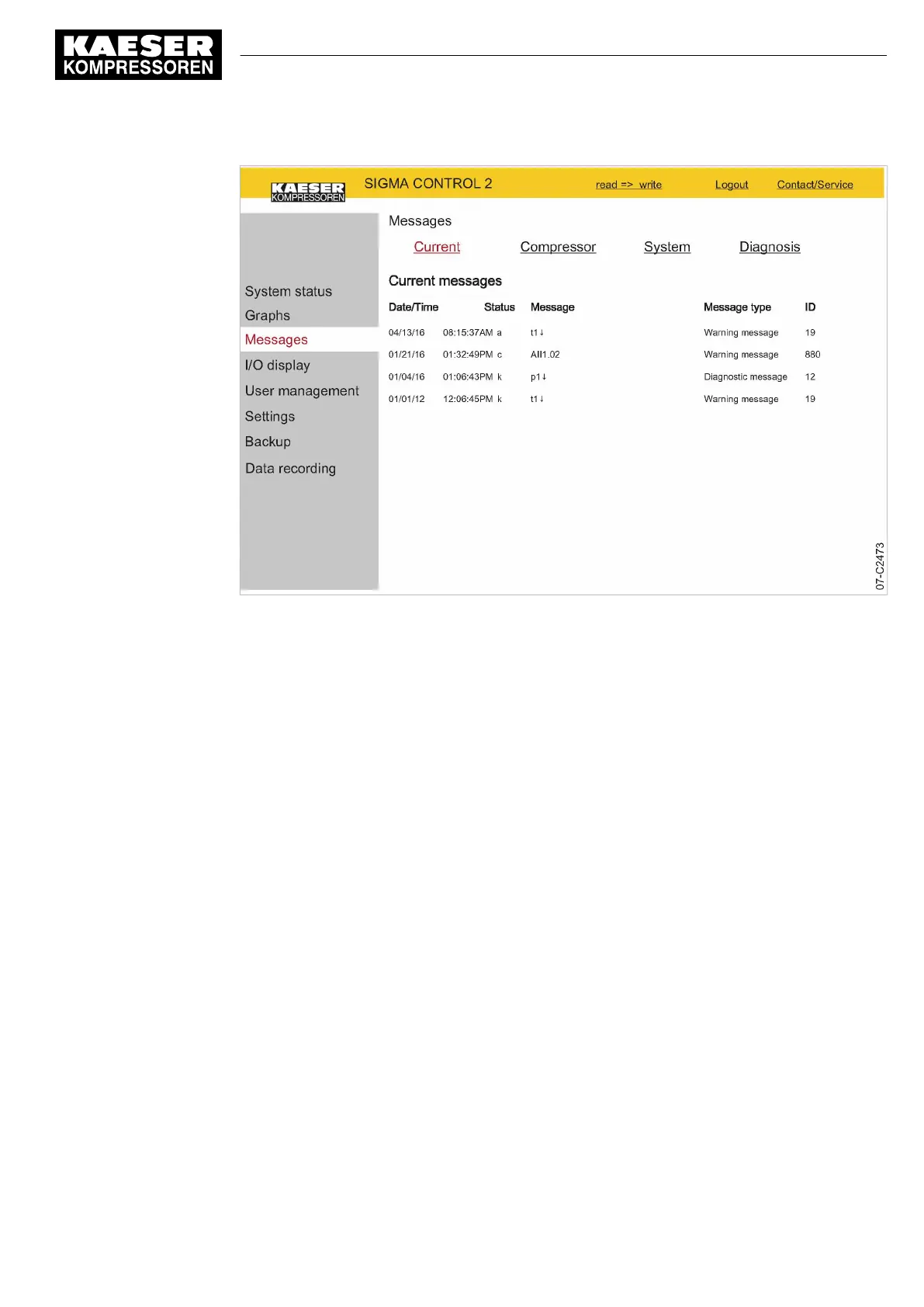

Fig. 22

Messages

1. Open the

Messages

menu.

The

Messages

menu is displayed.

2. Click the required message type.

3. Check messages.

8.3.5 I/O display menu

The measured values of the analog inputs and the states of the digital inputs and outputs are dis‐

played in the

I/O display

menu. Depending on the machine options, you may select from further

IOM module tabs.

Precondition KAESER CONNECT for SIGMA CONTROL 2 is displayed.

8 Initial Start-up

8.3 Using KAESER CONNECT

No.: 9_9450 13 USE

User Manual Controller

SIGMA CONTROL 2 SCREW FLUID ≥5.1.2
