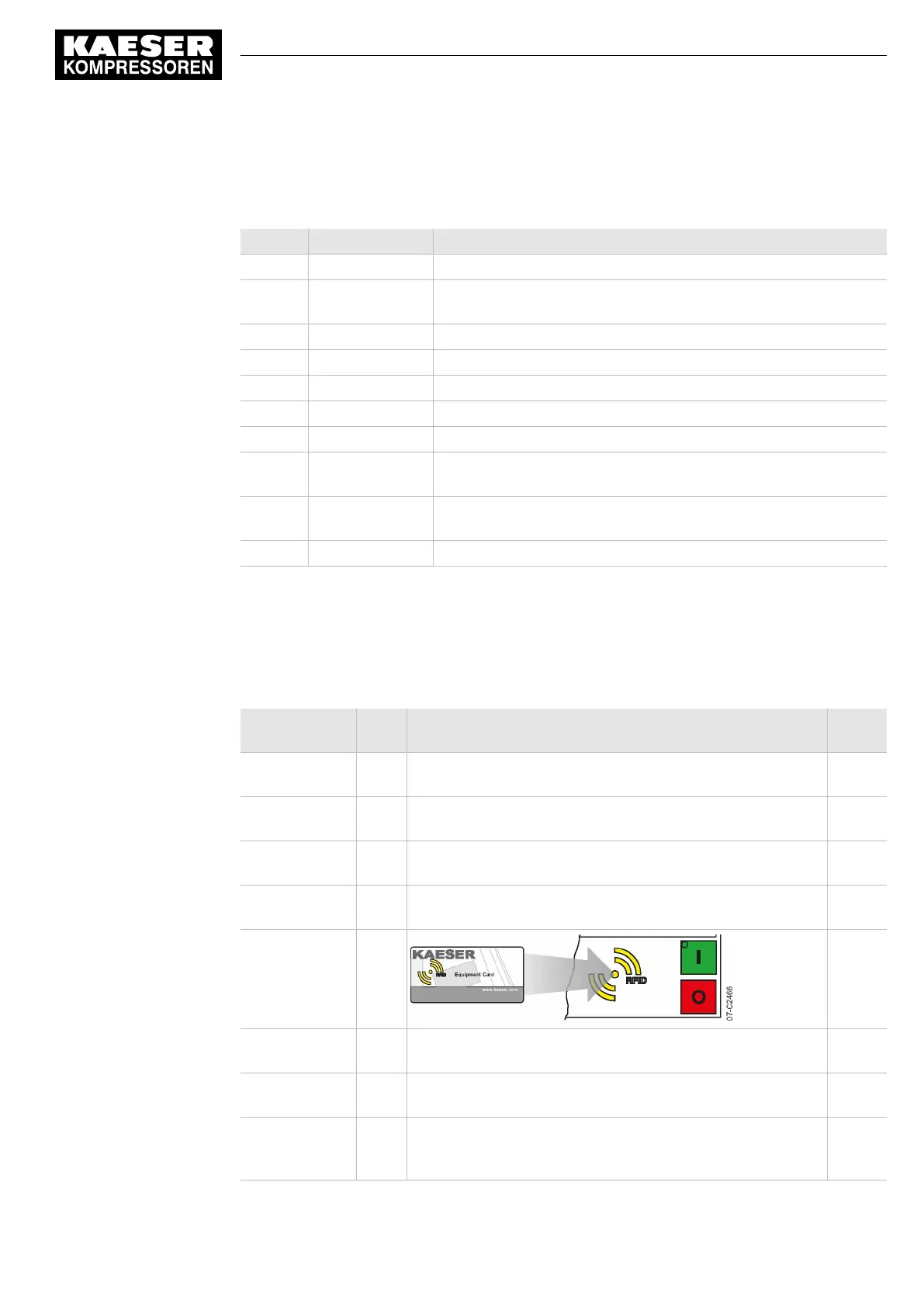

1.3 Main menu overview
Press «Up» / «Down» / «Enter» to open the main menu.
Menu no. Menu name Function
1 Status Displays messages, statistics and status information
2 Performance data Displays measured data from the machine and its components (e.g.
motors)
3 Operating data Displays operating hours, switching cycles and energy data
4 Maintenance Displays maintenance data from the machine and its components
5 Configuration Sets machine parameters, compressed air system and accessories
6 Compressor clock Timer control settings
7 User Manual user log-in and password administration
8 Communication Sets the Ethernet interface, COM modules and control technology
connection
9 Machine test Checks the safety relief valve / temperature sensor and shutdown in
the event of excess temperature
10 Components Displays machine component settings, e.g. power switching
Tab. 3 Main menu overview
See chapter 5.6.2 for the complete menu structure
1.4 Functions overview
Function Menu
no.
Action steps Chapter
Set contrast Main
menu
Press and hold down «Information» – «Up» / «Down» 8.2.12
Set brightness Main
menu
Press and hold down «Information» – «Left» / «Right» 8.2.12
Set language Main
menu
«Enter» – «Up» – «Enter» – «Up» / «Down» 8.2.2
Set date, time
and time zone
5.1
<Configuration – General>
8.2.8
User log-in with
RFID Equipment
Card
– 8.2.4
Set pressure pa‐
rameters
5.2.2
<Configuration – Pressure control – Pressure settings – pA/pB>
8.4
Set
«Timer control»
6
<Compressor clock – Set timing program>
8.5.1
Activate
«Timer control»
key
6
<Compressor clock – Key clock – ☑>
8.5.1.3
1 SIGMA CONTROL 2 Quick reference guide
1.3 Main menu overview
No.: 9_9450 13 USE
User Manual Controller
SIGMA CONTROL 2 SCREW FLUID ≥5.1.2
