KAESER SIGMA CONTROL 2 User Manual

Display
Feature Value
Graphical display [px] 255 x 128
Width [in.] 3.2
Height [in.] 1.6
Maximum number of lines/characters 8/30
Colors Black/white with grey scale
Lighting LED backlit
px ≙ pixel
Tab. 10 Display data

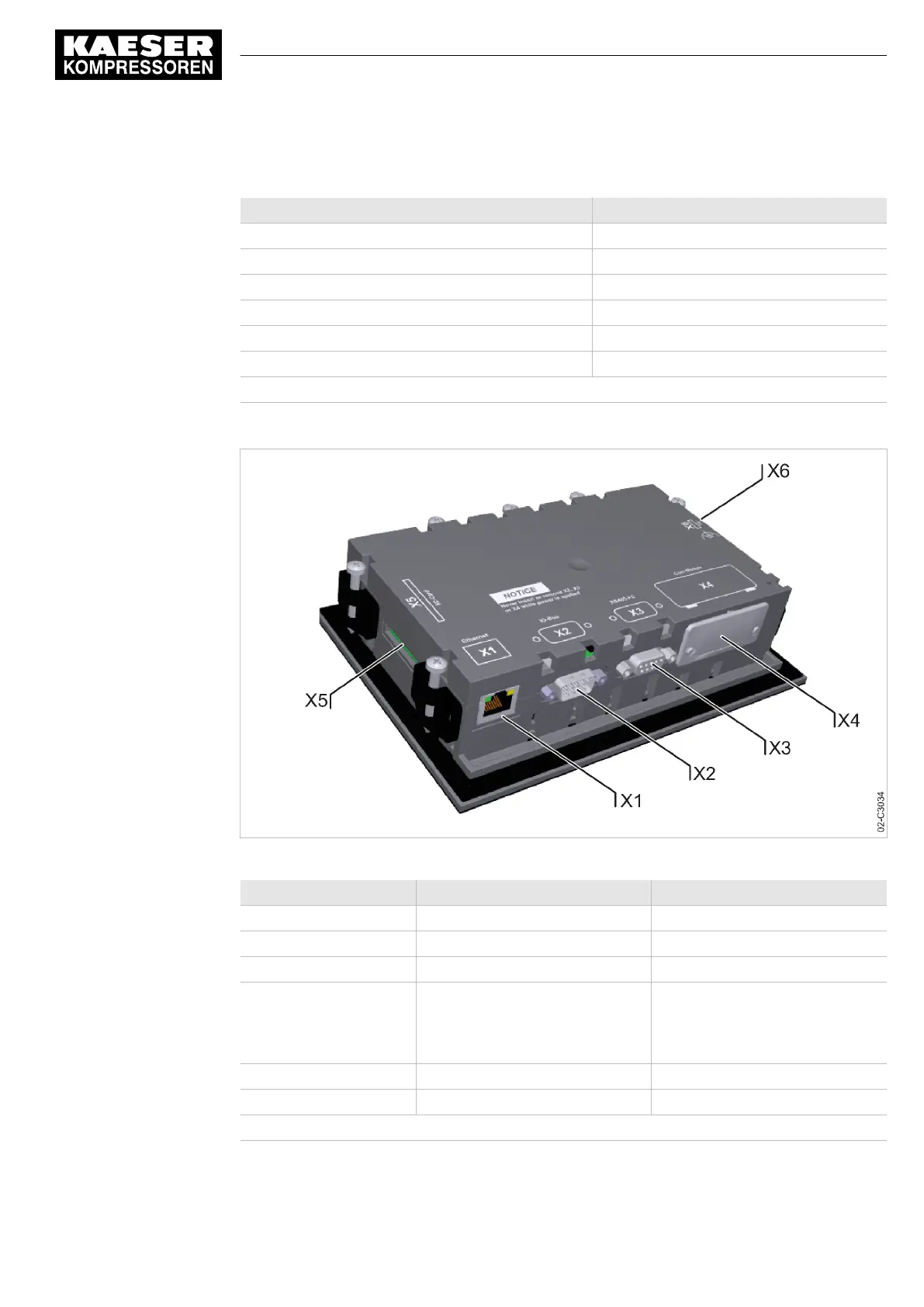

Fig. 3 MCS interfaces
Identification Interface Connection
X1 Ethernet 10/100 Base T RJ 45 socket
X2 I/O bus 9-pole SUB-D pins
X3 RS485–FC (USS interface) 9-pole SUB-D socket
X4 Com modules,
slot for communications module
Module optional for:
PROFIBUS, PROFINET,
Modbus RTU, Modbus TCP,
DeviceNet, EtherNet/IP
X5 SD card, SD card slot SD/SDHC card
X6 FG Functional ground (FG)
The positions of the interfaces X1–X6 are marked on the rear of the controller.
Tab. 11 MCS interfaces
3 Technical Data
3.1 Controller SIGMA CONTROL 2
No.: 9_9450 13 USE
User Manual Controller
SIGMA CONTROL 2 SCREW FLUID ≥5.1.2
11

KAESER SIGMA CONTROL 2 Specifications

General

Controller Type	Microprocessor-based
Model	SIGMA CONTROL 2
Manufacturer	KAESER
Input Voltage	24 V DC
Protection Class	IP54
Communication Protocols	Modbus, Profibus
Data Logging	Comprehensive data logging
Remote Monitoring	Yes
Communication Interface	Ethernet
