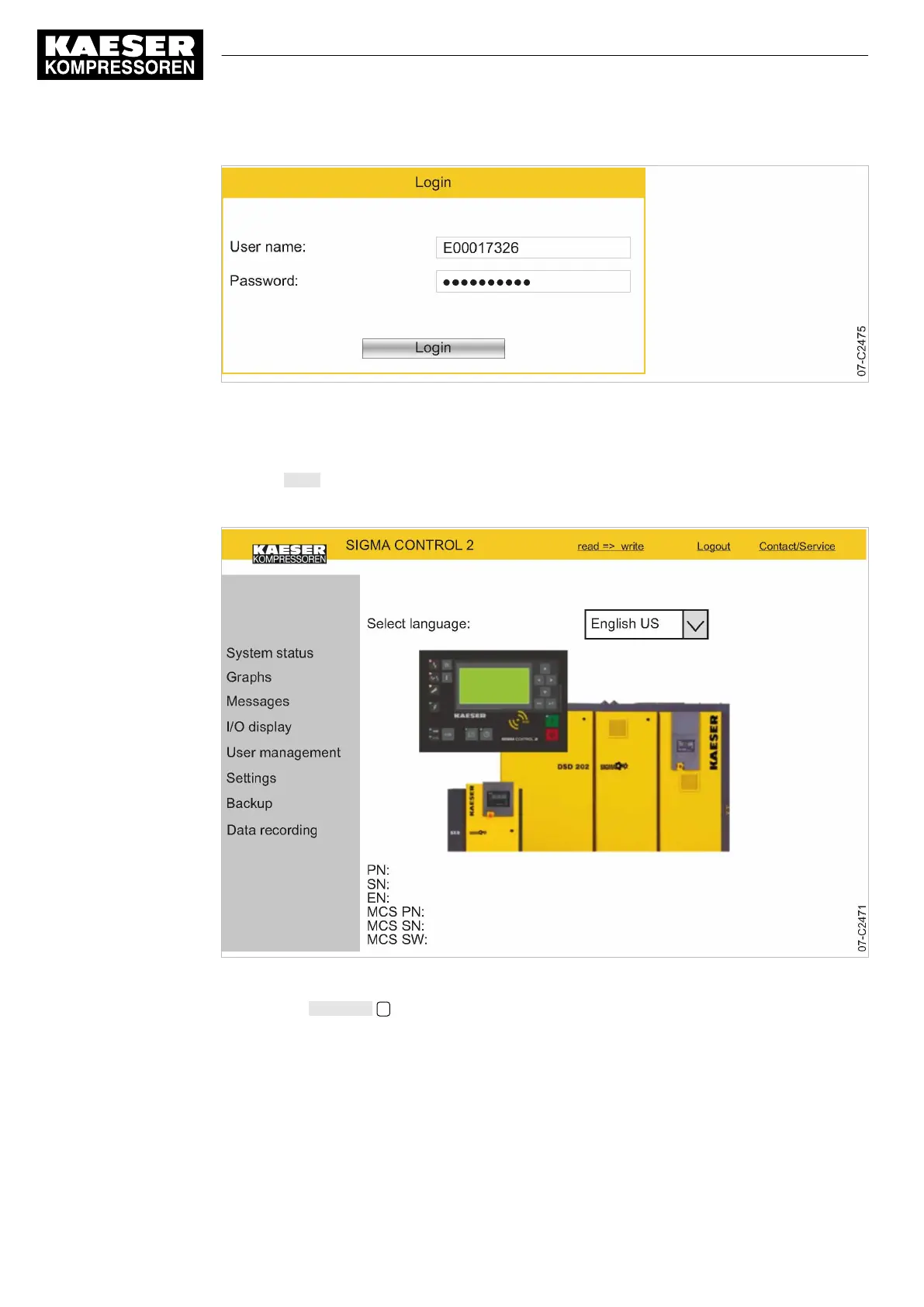

Fig. 15 Login window

3. Enter your user name in the

User name:

field.

4. Enter your password in the

Password:

field.

5. Click Login.

KAESER CONNECT for SIGMA CONTROL 2 is displayed.

Fig. 16 KAESER CONNECT for SIGMA CONTROL 2

6. Click the arrow key 1 to open Select language:.

The

Select language:

window is displayed.

8 Initial Start-up

8.3 Using KAESER CONNECT

User Manual Controller

SIGMA CONTROL 2 SCREW FLUID ≥5.1.2 No.: 9_9450 13 USE
