KAESER SIGMA CONTROL 2 User Manual

Item Designation Function
11 «Timer control» Switches timer control on and off.
12 «Remote control» Switches remote control on and off.
13 «LOAD/IDLE»
Switches between LOAD and IDLE operating modes
12)
19 «Information» Display message memory.
21 «Acknowledge» Confirms/acknowledges fault and warning messages.
When permissible: Reset the message history (RESET).
12)
not on AIRTOWER
Tab. 25 Operating elements

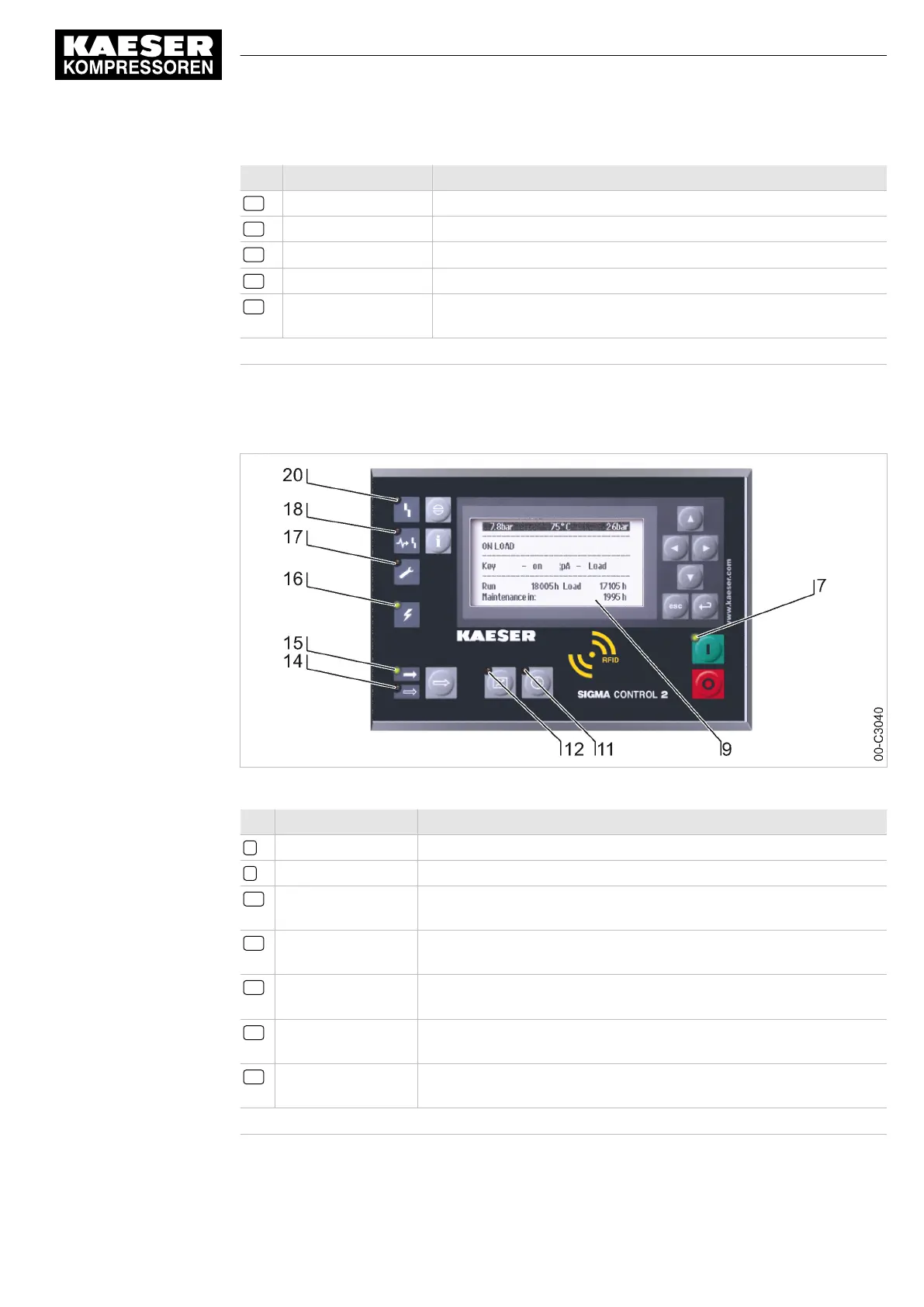

5.2.2 Display elements
Fig. 8 Display elements
Item Designation Function
7 ON Indicator illuminates in green when the machine is switched on.
9 Display Graphic display with 8 lines and 30 characters per line.
11 Timer control Illuminates continuously in green when the machine is controlled by
the timer.
12 Remote control Illuminates continuously in green when the machine is controlled re‐
motely.
14 IDLE Illuminates continuously in green when the machine is running in IDLE.
Flashes when the «LOAD/IDLE»
12)
key is pressed
15 LOAD Illuminates continuously in green when the machine is running
in LOAD.
16 Controller voltage Illuminates continuously in green when voltage is supplied to the con‐
troller.
12)
not on AIRTOWER
5 Design and Function
5.2 Operating panel
No.: 9_9450 13 USE
User Manual Controller
SIGMA CONTROL 2 SCREW FLUID ≥5.1.2
21

KAESER SIGMA CONTROL 2 Specifications

General

Controller Type	Microprocessor-based
Model	SIGMA CONTROL 2
Manufacturer	KAESER
Input Voltage	24 V DC
Protection Class	IP54
Communication Protocols	Modbus, Profibus
Data Logging	Comprehensive data logging
Remote Monitoring	Yes
Communication Interface	Ethernet
