8.10.5.1 Establish the electrical connection for remote LOAD contact (excerpt)
Machine (example)

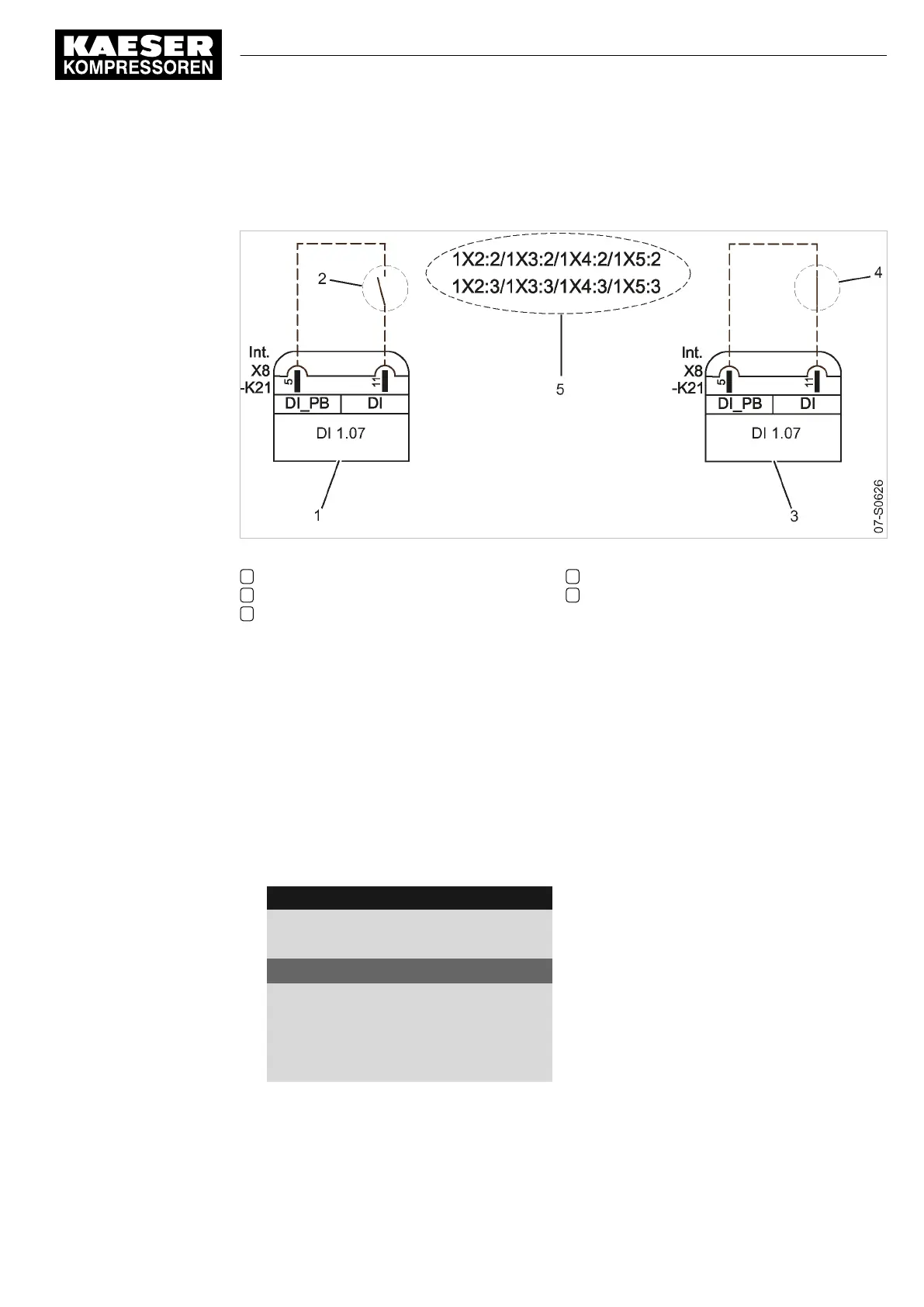

Fig. 36 LOAD remote contact
1 Electrical connection DI 1.07
2 LOAD remote contact open (IDLE)
3 Electrical connection DI 1.07
4 LOAD remote contact closed (LOAD)
5 SIGMA AIR MANAGER BASIC contacts
➤ Establish the electrical connection for DI 1.07 according to the wiring diagram.
8.10.5.2 Setting the remote LOAD contact operating mode and assigning the input for LOAD remote contact
Precondition Password access level 2 is activated.
Set the LOAD remote contact operating mode
1. Open the 5.2.3 <Configuration – Pressure control – Load control> menu.
2. Use «Up» or «Down» to select the Remote mode line.
3. Press «Enter».
The currently active operating mode Remote mode flashes.
8 8 p s i 0 8 : 1 5 A M 1 7 6 ° F
Header
5.2.3 Load control
Menu
Local mode: pA/pB Cycle
Remote mode: Load RC
Active line
------------------------------
▶1 pA/pB Clock
·········
pA/pB Cycle
4. Use «Up» or «Down» to set the Load RC input.
5. Press «Enter».
The LOAD remote contact operating mode is set.
8 Initial Start-up
8.10 Configuring the machine for master control
No.: 9_9450 13 USE
User Manual Controller
SIGMA CONTROL 2 SCREW FLUID ≥5.1.2
139

KAESER SIGMA CONTROL 2 Specifications

General

Controller Type	Microprocessor-based
Model	SIGMA CONTROL 2
Manufacturer	KAESER
Input Voltage	24 V DC
Protection Class	IP54
Communication Protocols	Modbus, Profibus
Data Logging	Comprehensive data logging
Remote Monitoring	Yes
Communication Interface	Ethernet
