116 Keysight E4980A/AL Precision LCR Meter
Configuring Measurement Conditions (Display and Function Related Settings)
CORRECTION page
4-

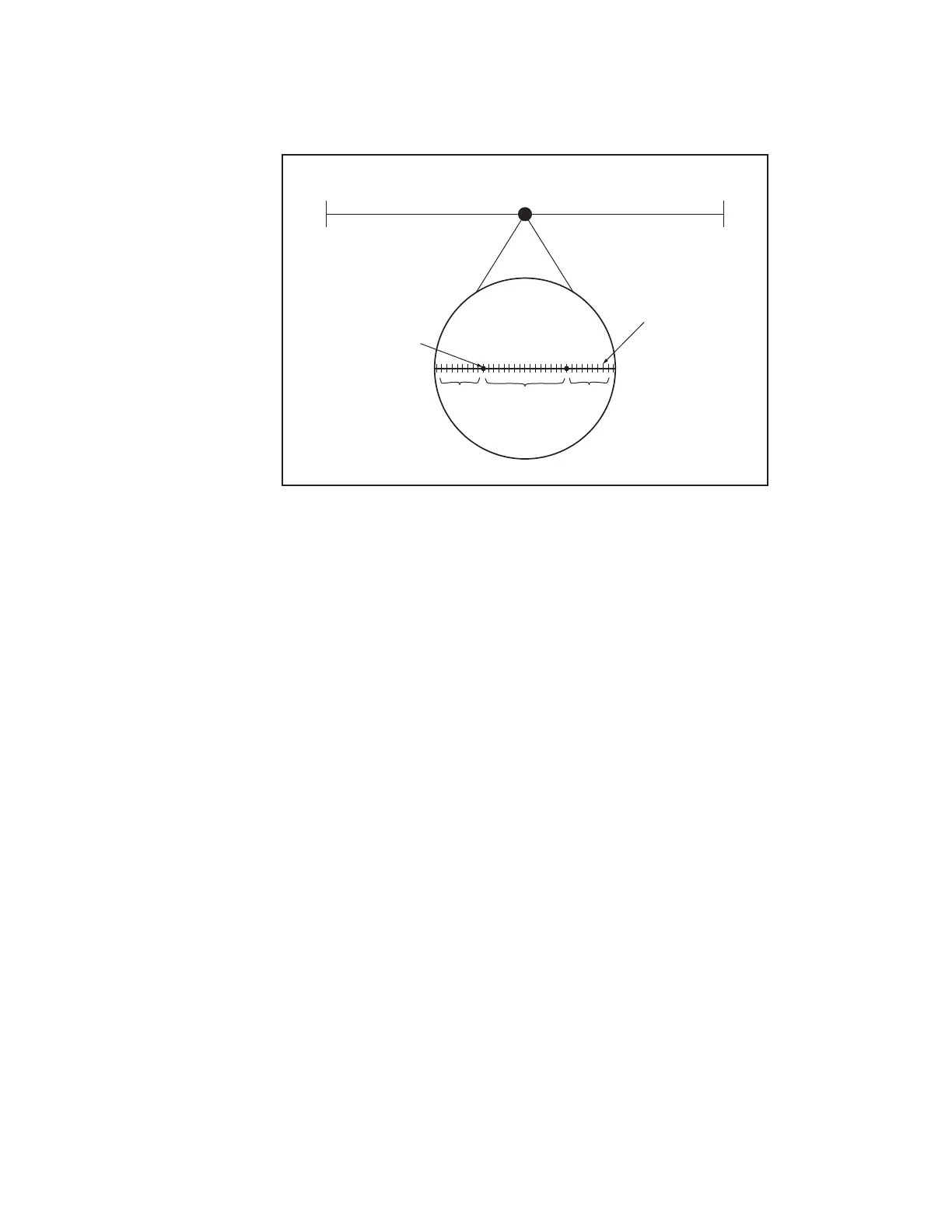

Figure 4-10 Open/short correction using the interpolation method
To carry out open correction based on all frequency points:
Step 1. Press [Meas Setup].
Step 2. Press the CORRECTION softkey.
Step 3. Using the cursor keys, select the OPEN field.
Step 4. Connect the UNKNOWN terminal and the text fixture with no DUT connected.
Step 5. Press the MEAS OPEN softkey. The E4980A/AL measures open admittances
(capacitances and conductances) at the 51 test frequency points.
• During the measurement, an “OPEN measurement in progress” message is
shown on the display.
• When the measurement has finished, the “OPEN measurement in progress”
message disappears.
• During the measurement, the ABORT softkey is shown. Use this key when
you want to abort open correction.
㪼㪋㪐㪏㪇㪸㫌㪼㪈㪇㪋㪐
㪦㪧㪜㪥㪆㪪㪟㪦㪩㪫 㪦㪧㪜㪥㪆㪪㪟㪦㪩㪫
㪉㪇㪟㫑 㪉㪤㪟㫑
㪛㪸㫋㪸 㪛㪸㫋㪸
㪦㪧㪜㪥㪆㪪㪟㪦㪩㪫㩷㪻㪸㫋㪸㩷㪺㪸㫃㪺㫌㫃㪸㫋㪼㪻
㫌㫊㫀㫅㪾㩷㫋㪿㪼㩷㫀㫅㫋㪼㫉㫇㫆㫃㪸㫋㫀㫆㫅㩷
㫄㪼㫋㪿㫆㪻
㪧㫉㪼㫊㪼㫋㩷㪝㫉㪼㫈㫌㪼㫅㪺㫐㩷㪧㫆㫀㫅㫋㫊
㩿㪌㪈㩷㫇㫆㫀㫅㫋㫊㪀
㪫㪼㫊㫋㩷㪝㫉㪼㫈㫌㪼㫅㪺㫐㩷㪧㫆㫀㫅㫋㫊
