240 Keysight E4980A/AL Precision LCR Meter
Overview of Remote Control
USB Remote Control System
8-
Control using Keysight VEE
Keysight VEE allows you to control the E4980A/AL via the direct I/O interface.
The following example shows how to control the E4980A/AL, for which alias is
given as E4980_USBIF.

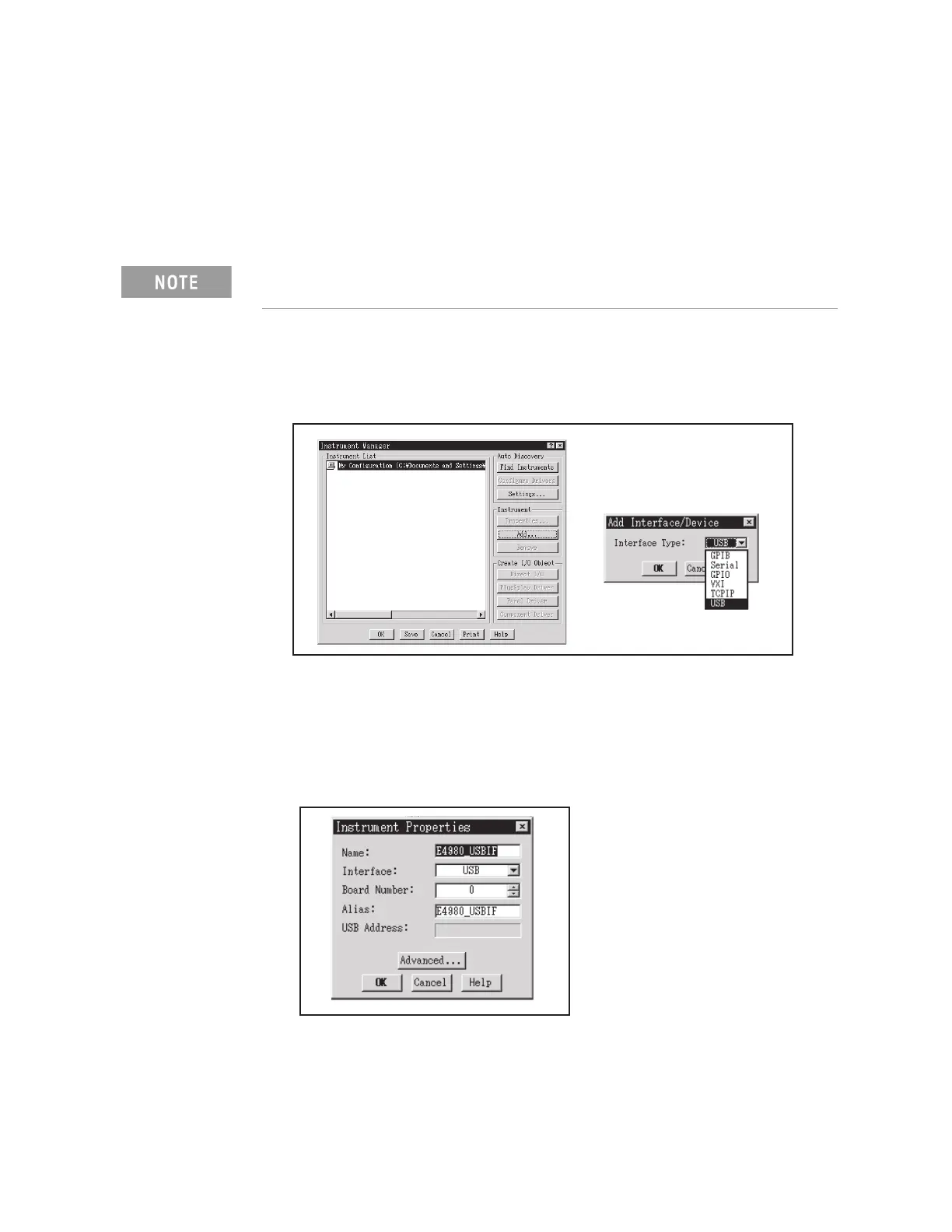

Step 1. On the Keysight VEE's I/O menu, click Instrument Manager...
Step 2. In the Instrument Manager setting screen, click Add... and in the Add
Interface/Device screen select USB.
Step 3. The Instrument Properties dialog box appears. Specify Name:
E4980_USBIF(any other name acceptable), Interface: USB, Board Number: 0
(USB port number), and Alias: E4980_USBIF (which is registered in the IO
Config setting screen), then click OK.
Figure 8-10 shows an example of control using the direct I/O interface that was
set in the above procedures.
When using Keysight VEE for PCs, use Keysight VEE Pro 7 for Windows or
a later version.
