- 462 Keysight E4980A/AL User’s Guide
Handler Interface
Signal Line Definitions
-

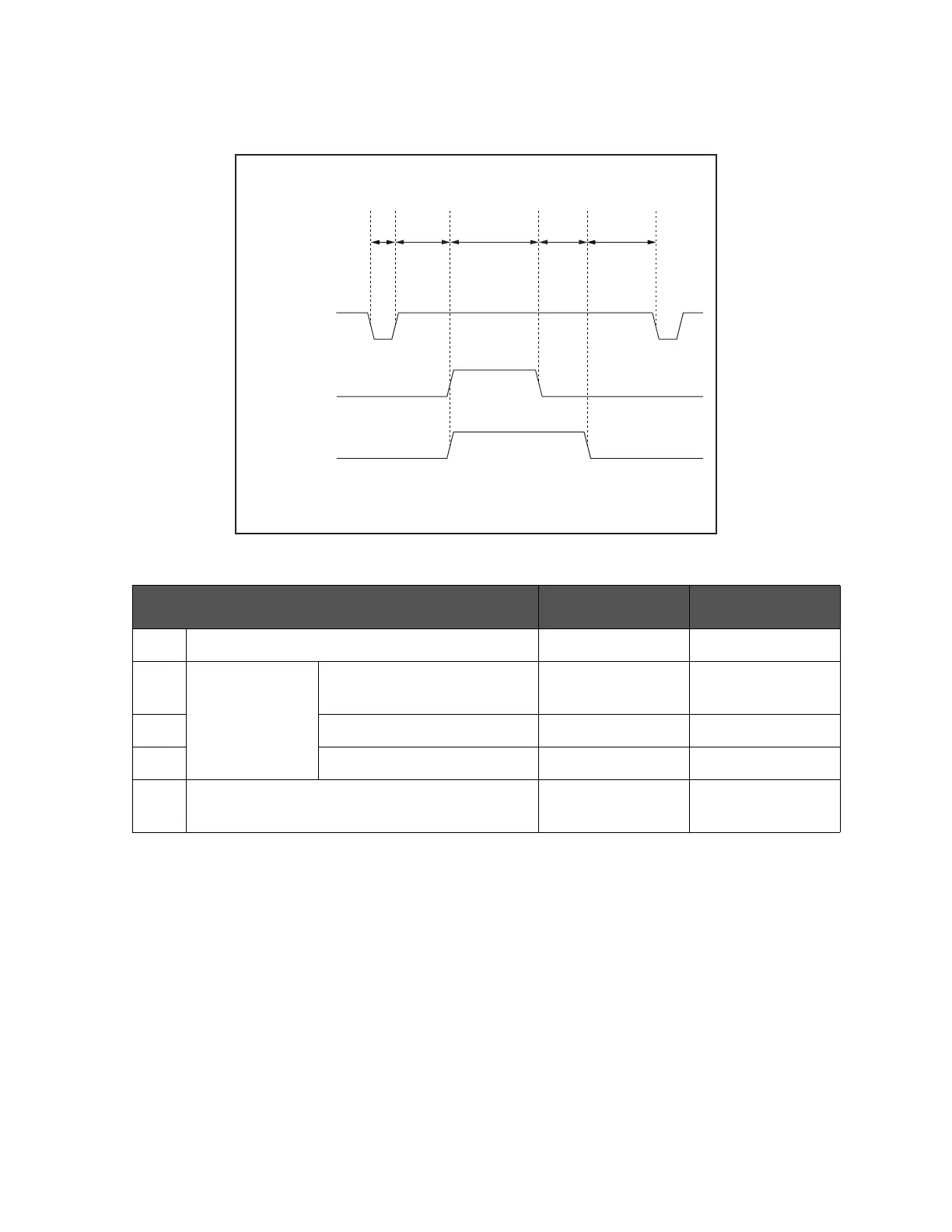

Figure E-3 Timing chart (for the comparator)
Table E-4 Time segments in the time chart
Time segment Minimum value
Typical
1
1. The measurement time is affected by the GPIB/USB/Network and Front panel processes.
T1 Trigger pulse width 1 sec -
T2 Measurement
cycle
/INDEX and /EOM response
time
0 Sec 350 msec
T3 Analog measurement time Depends on settings -
T4 Digital math time 0 Sec
T5 Trigger wait time after the output of /EOM,
/READY_FOR_TRIGGER
0 Sec -
㪼㪋㪐㪏㪇㪸㫌㫁㪈㪈㪈㪇
/EXT _ TRIG
/INDEX
/EOM,
/READY _ FOR _ TRIG
T1 T2 T3 T4 T5
