9. Insert two hooks of the connector cover
to the holes of base of the machine
each.
10. Install the connector cover by using a
M4 x 8 screw.

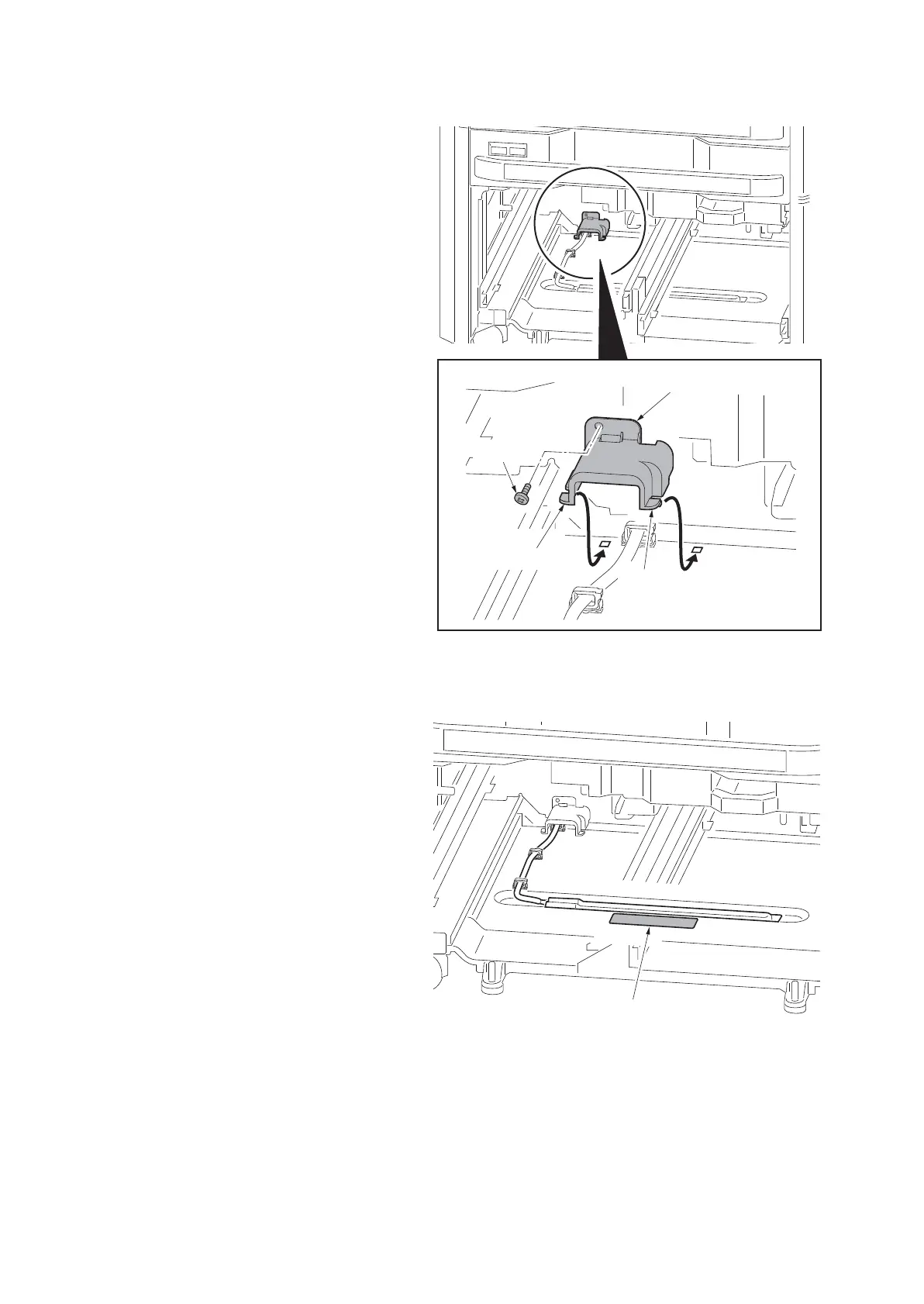

Figure 1-2-119
11. Adhere the caution label after wiping
the bottom frame of this side of cassette
heater with alcohol.
Figure 1-2-120
*: Perform the maintenance mode U327 to configure the cassette heater control settings after a cassette
heater was installed.
Screw
Connector cover
Hook
Hook
Caution label
To Next Page
