5. Fit three wire saddles on the bottom
frame of the machine.
6. Fit the cassette heater using two M3 x 8
screws.

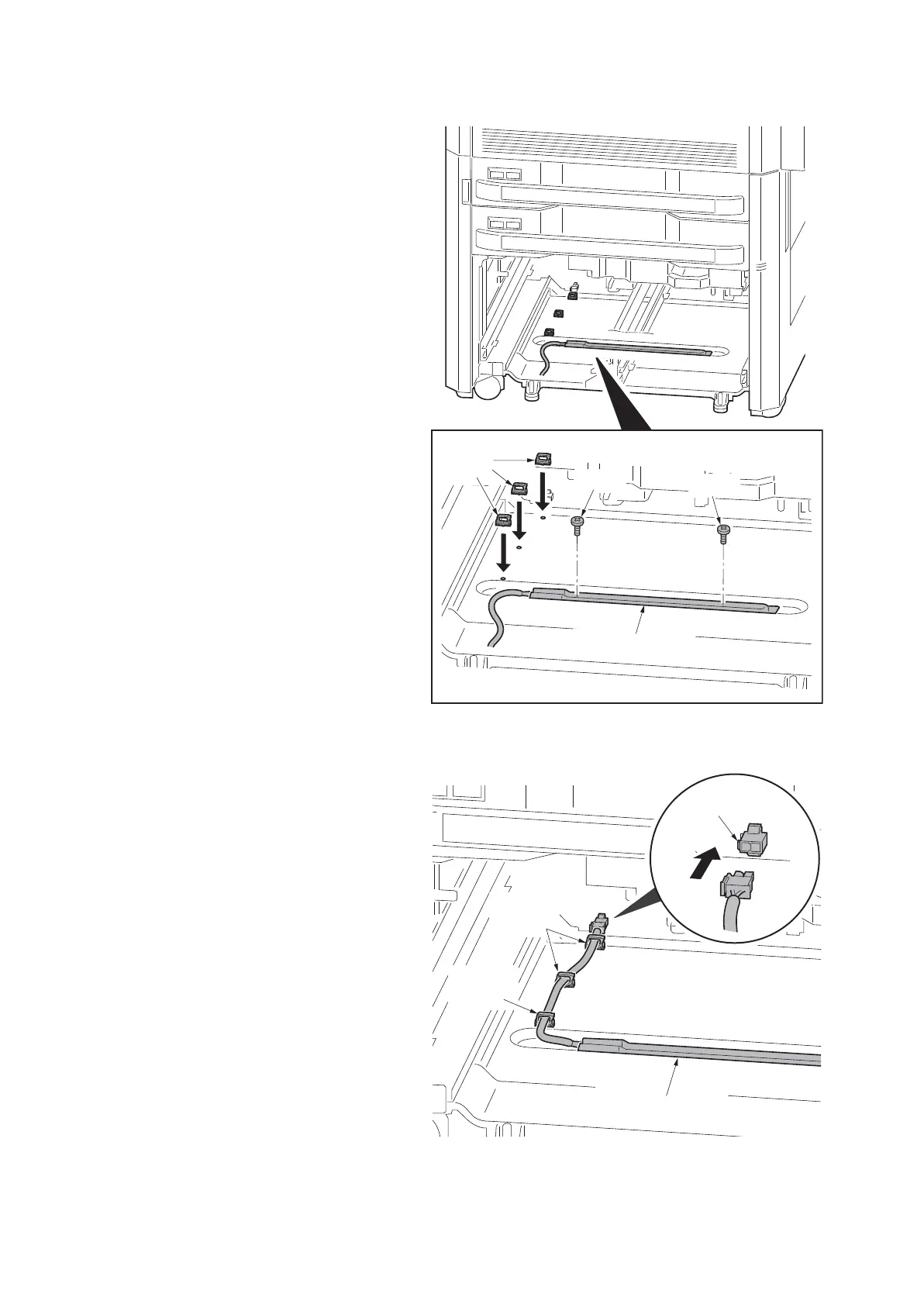

Figure 1-2-117
7. Pass the wire of the cassette heater
through three wire saddles and then
fasten the wire.
8. Connect the connector of the cassette
heater to the connector in the rear
frame of the machine.
Figure 1-2-118
Screw
Screw
Cassette heater
Wire
saddles
Cassette heater
Wire
saddles
Connector
Wire
saddle
