U246 Setting: [Booklet Pos]
1. Select [Booklet Pos1], [Booklet Pos2] or [Booklet Pos3].
2. Change the setting value using the +/- keys or numeric keys.
* : When the centerfold position too far right (sample 1), increase the preset value. When the
centerfold position too far left (sample 2), decrease the setting value.
Reference value A: A4, Letter: Length of paper × 1/2 ± 2 mm
A3, Ledger, B4: Length of paper × 1/2 ± 3 mm

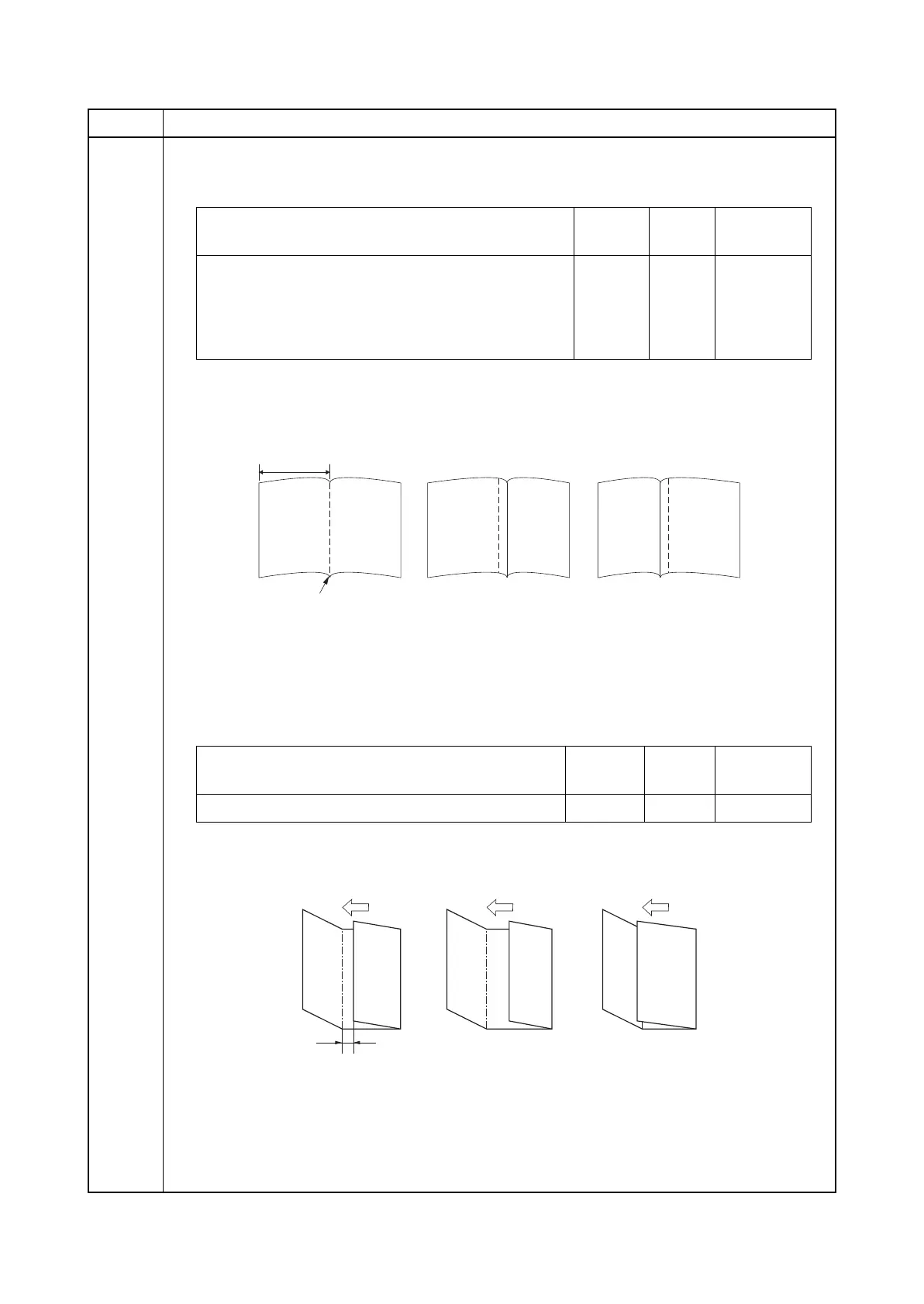

Figure 1-3-37
3. Press the start key. The value is set.
Setting: [Three Fold]
1. Select [Three Fold].
2. Change the setting value using the +/- keys or numeric keys.
* : When the tri-fold position too far right (sample 1), increase the preset value. When the tri-
fold position too far left (sample 2), decrease the setting value.
Reference value A: 7.0 ± 2 mm
Figure 1-3-38
3. Press the start key. The value is set.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
Description Setting
range
Initial
setting
Change in
value per step
Adjustment of center folding position for A4/Letter size -15 to 15 0 0.32 mm
Adjustment of center folding position for B4/Legal size -15 to 15 0 0.32 mm
Adjustment of center folding position for A3/Ledger/
8K size
-15 to 15 0 0.32 mm
Sample 2
Sample 1
A
Center line
Description Setting
range
Initial
setting
Change in
value per step
Adjustment of tri-folding position -15 to 15 0 0.32 mm
A
Sample 1 Sample 2
