Kyocera TASKalfa 6501i - Page 37

2N8/2N7-2
1-2-5

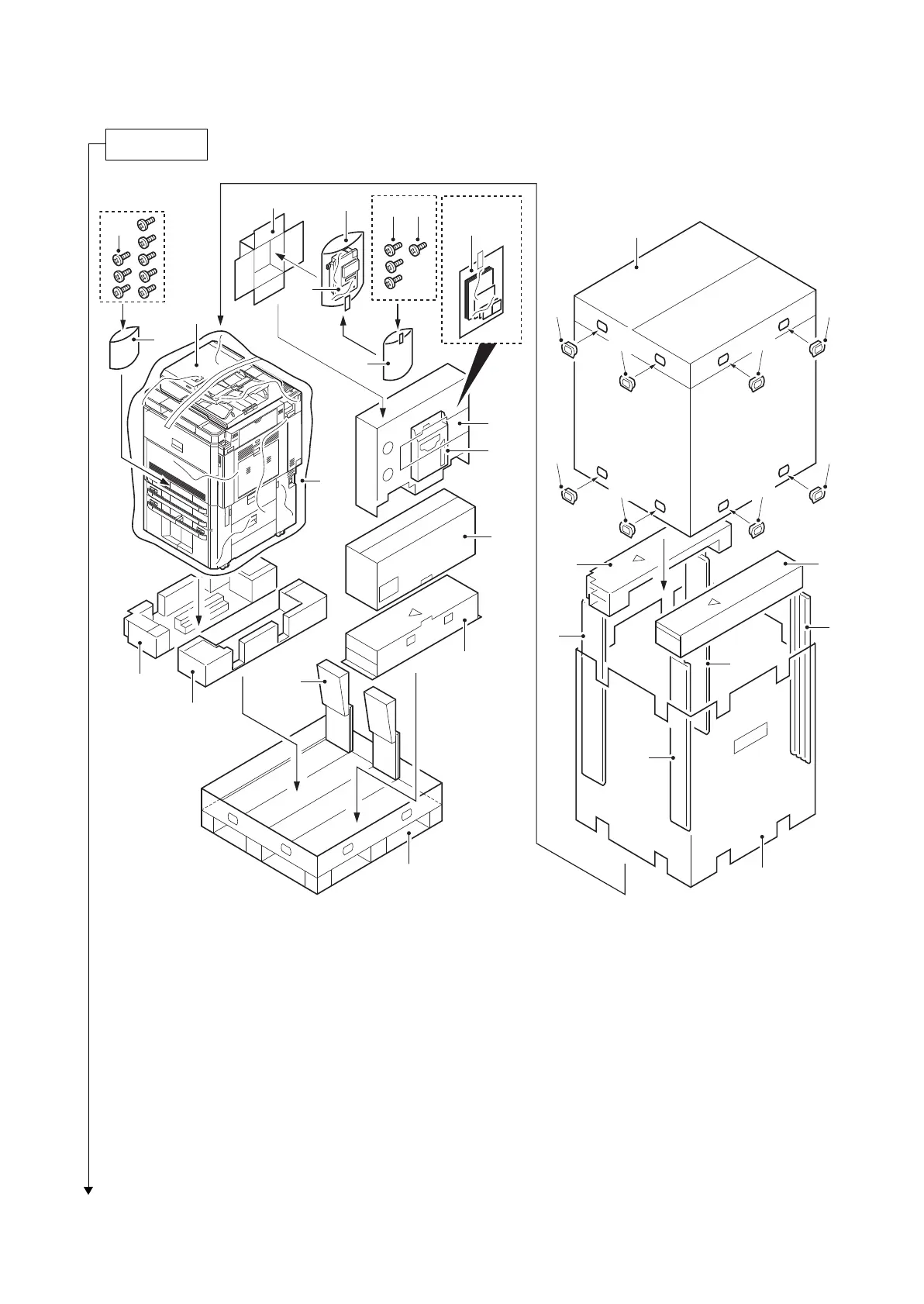

Figure 1-2-4
Place the machine on a level surface.
Unpacking
3
13
4
7
6
28
28
2
1
28
28
28
28
28
28
9
15
12
14
16
1
10
8
10
5
1 1
23
17,18,19
20,21
22
25
24
26 27
29
26
1. Machine
2. Outer case
3. Inner case
4. Skid
5. Slopes
6. Bottom left pad
7. Bottom right pad
8. Top left pad
9. Top right pad
10. Left stays
11. Right stays
12. Machine cover
13. Bottom spacer
14. Operation arm
15. Top spacer
16. Document tray
17. Plastic bag
18. Paper size plates
19. Paper media plates
20. Operation panel sheets
21. Operation guide etc.
22. Toner disposal box case
23. Air-padded bag
24. Toner disposal box
25. Plastic bag
26. M3 x 8 S tight screws
27. M3 x 8 P tight screw
28. Hinge joints
29. M3 x 8 screws
(120V model only)
