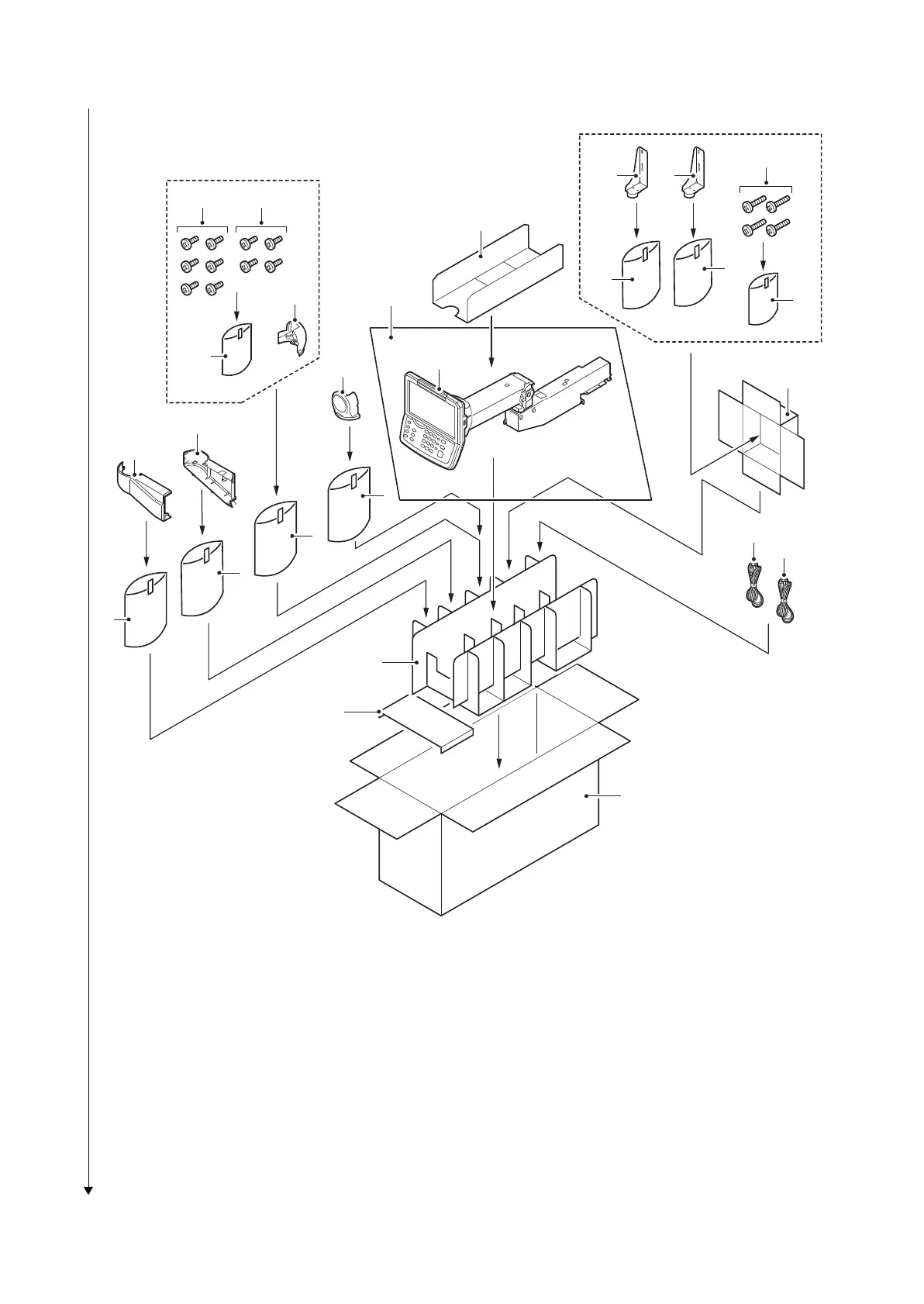

Operation arm
Figure 1-2-5
1
7
7
7
3
4
9
5
6
20
21
8
10
11
12
7
13
2
16
19
14
17
15
16
18
17
1. Arm outer case
2. Arm bottom spacer
3. Arm main pad
4. Plastic sheet
5. Operation arm assembly
6. Arm top spacer
7. Plastic bags
8. Operation mount cover A
9. Operation mount cover B
10. Arm hinge cover A
11. Arm hinge cover B
12. Plastic bag
13. M4 x 8 screws
14. M4 x 8 screws (black)
15. Stopper case
16. Plastic bags
17. Stoppers
18. Plastic bag
19. M4 x 20 screws (black)
20. Power cord
21. Power cord (120 V only)
