2N8/2N7
1-2-10
3. Open the original width guides and then
remove the spacer.

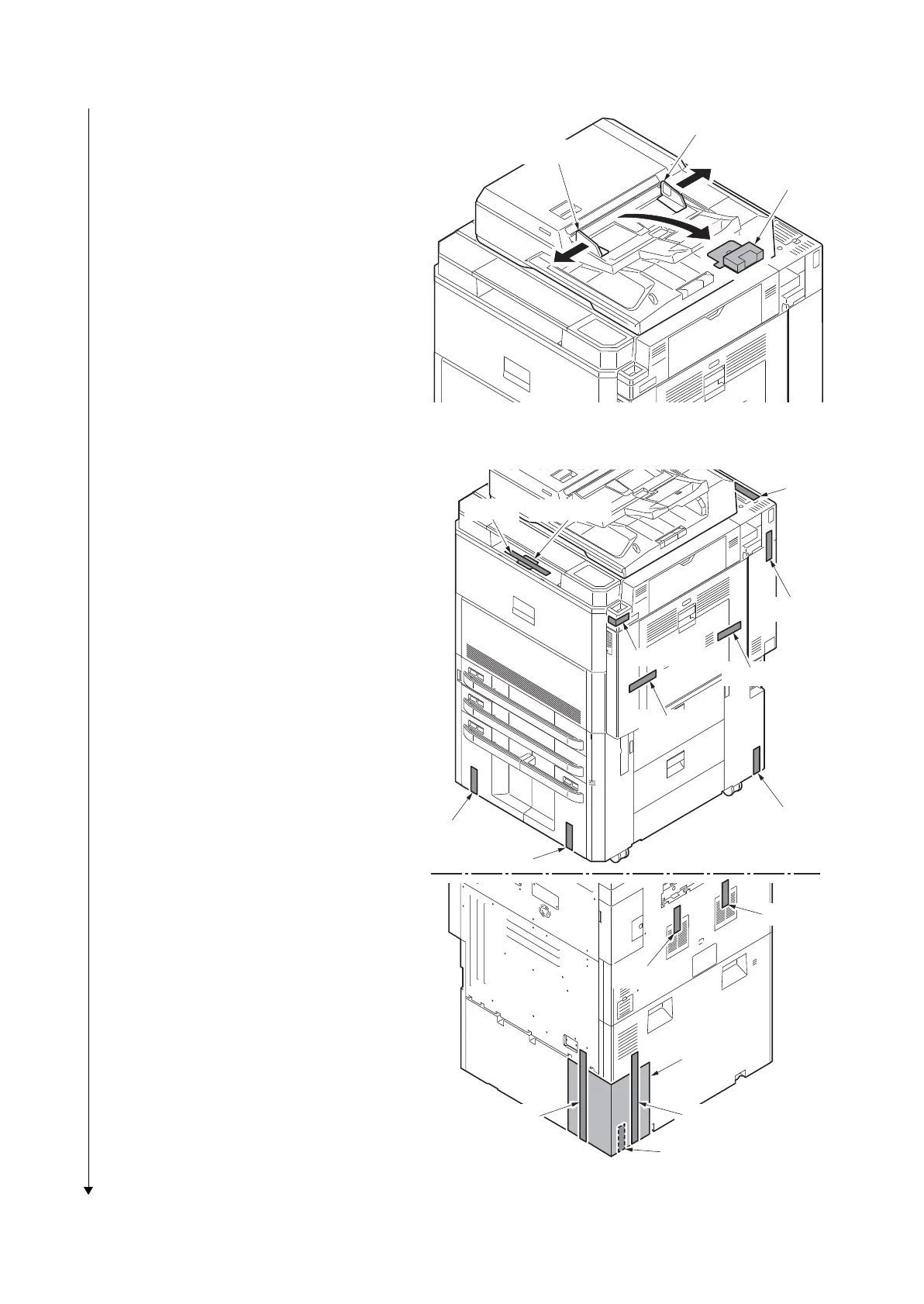

Figure 1-2-12
4. Remove fourteen tapes, silica gel and
sheet.
Figure 1-2-13
Original width guide
Original width guide
Spacer
Tap e
Tap e
Tap e
Tap e
Tap e
Tap e
Tap e
Tap e
Tap e
Tap e
Tap e
Tap e
Tap e
Sheet
Tap e
Silica gel
