12. Release the lock by pushing the fixed
levers at the right and left of inner unit.
13. Remove the inner unit.
14. Close the toner supply shutter of the
inner unit.
*: Be sure to unlock the lock to the devel-
oper eject duct after installing the inner
unit.

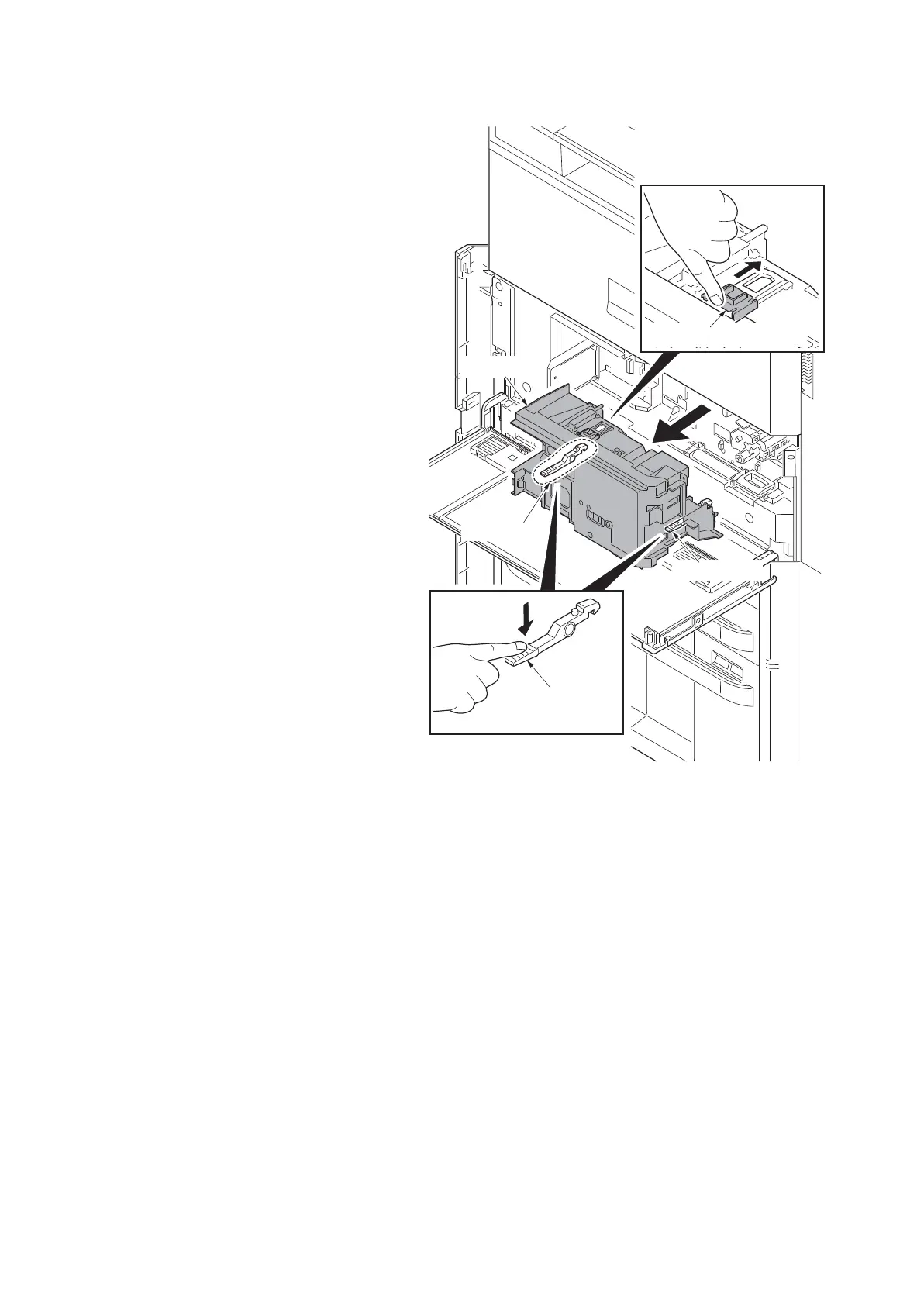

Figure 1-5-93
Toner supply shutter
Inner unit
Fixed lever
Fixed lever
Fixed lever
To Next Page
