Kyocera TASKalfa 6501i - Page 708

2N8/2N7
1-5-96
6. Remove two screws and then remove
the ISU right cover.
7. Remove the clip holder A.
8. Remove the screw and then remove
the clip holder B.
9. Unhook three hooks and then remove
the right upper cover.

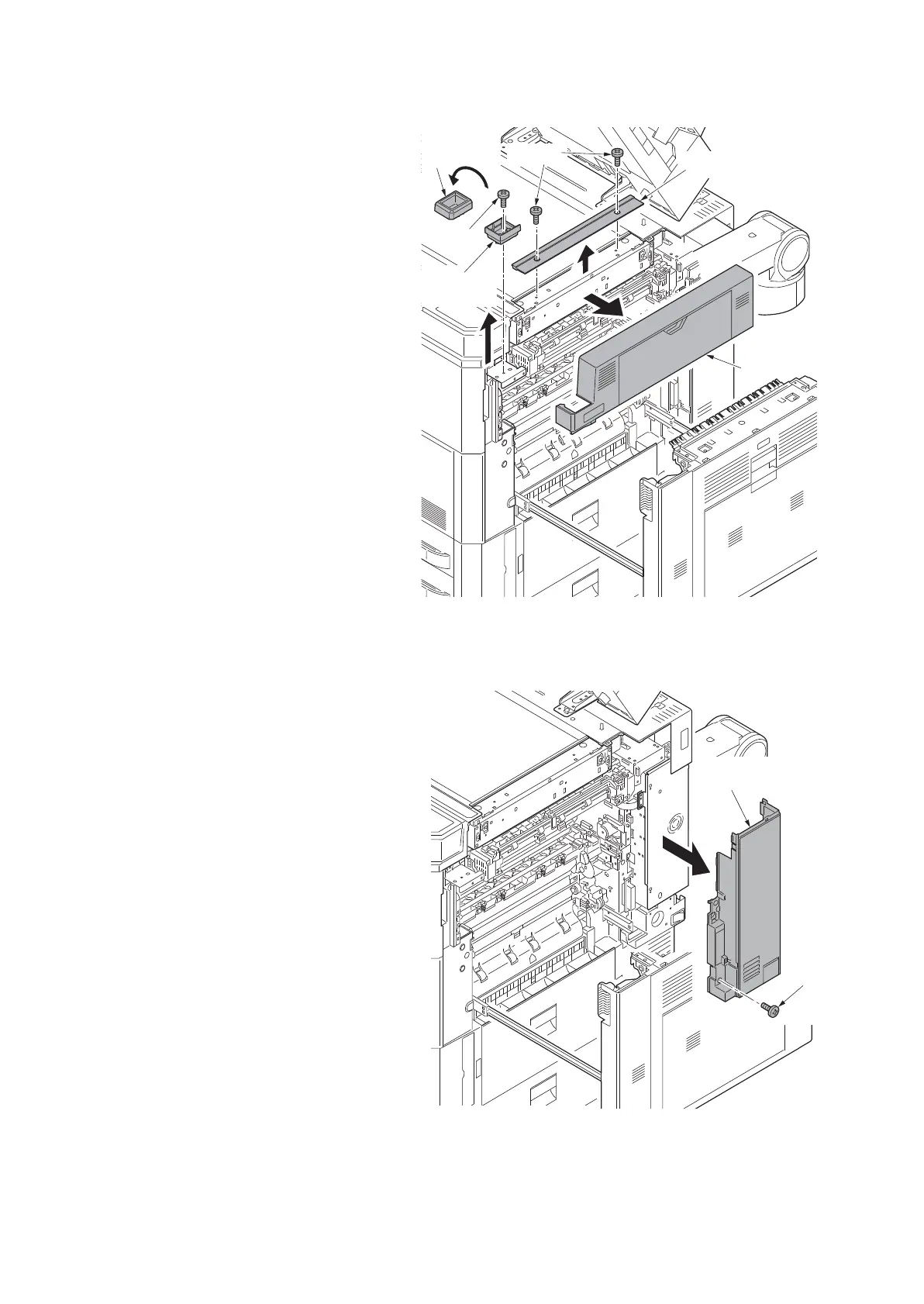

Figure 1-5-151
10. Remove the screw.
11. Unhook two hooks and then remove the
right middle rear cover.
Figure 1-5-152
ISU right cover
Screws
Clip
holder A
Clip
holder B
Screw
Right
upper cover
Screw
Right middle
rear cover
