12. Remove four screws and the remove
the fuser IH PWB cover.
13. Remove the IH wire cover.

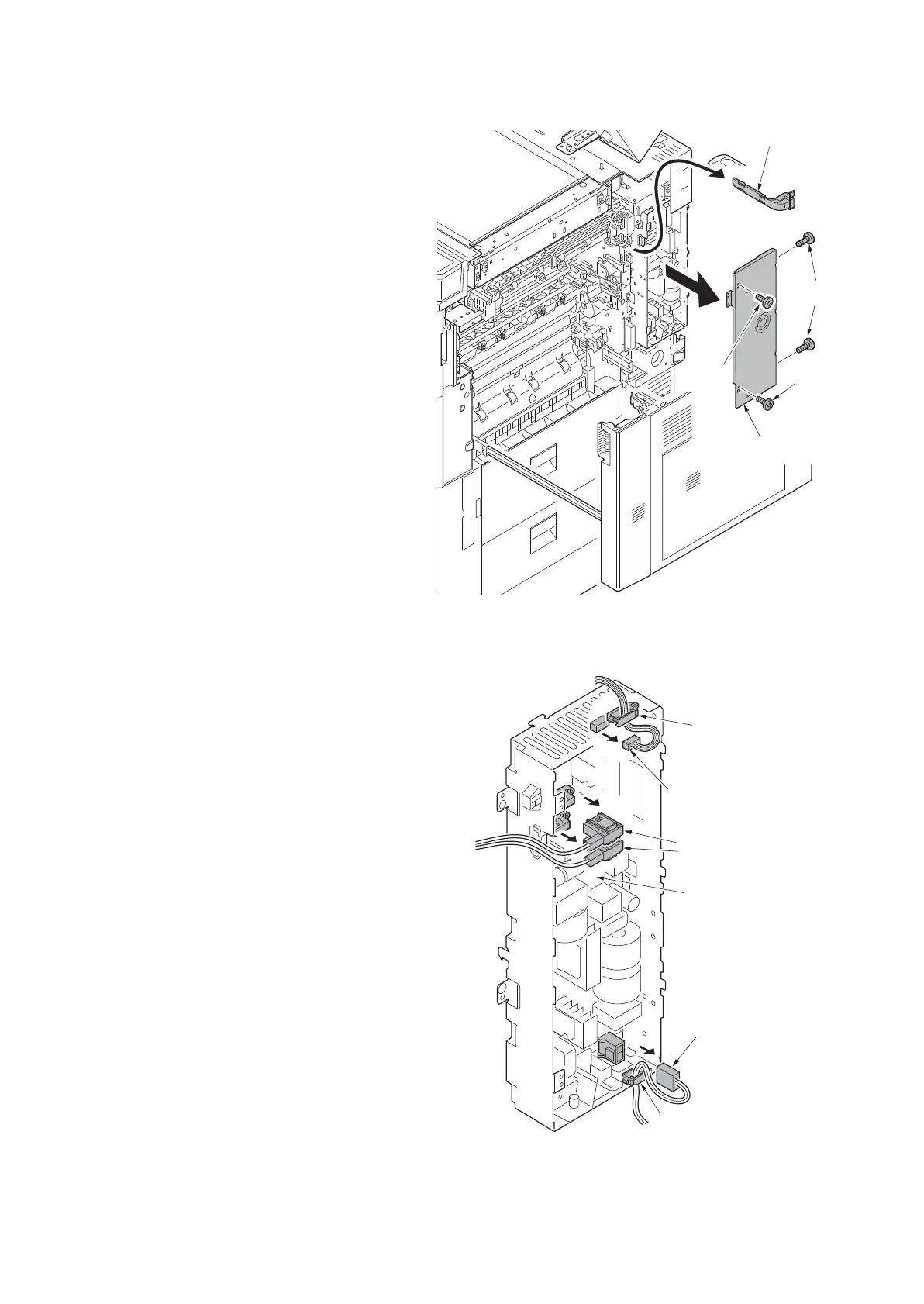

Figure 1-5-153
14. Release two wire saddles.
15. Remove four connectors from the fuser
IH PWB.
Figure 1-5-154
Screw
Screws
IH electric wire cover
Fuser IH PWB cover
Screw
Fuser IH PWB
Wire saddle
Wire saddle
Connector
Connectors
Connector
