16. Remove two wire holders.
17. Remove the connector (YC27) from
feed PWB 1.

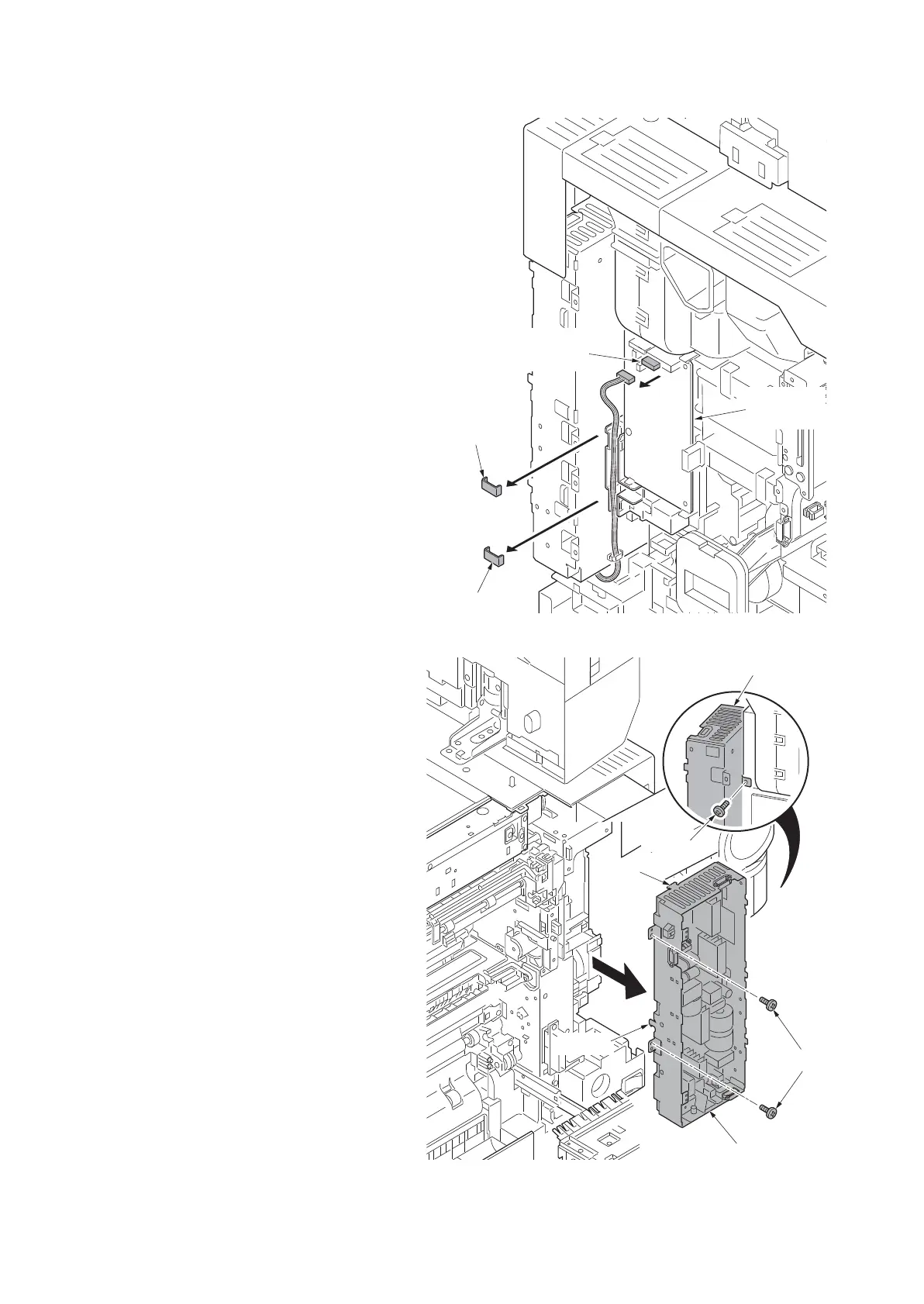

Figure 1-5-155
18. Remove three screws.
19. Unhook two hooks and then remove IH
box assembly.
Figure 1-5-156
Feed PWB 1
Connector
(YC27)
Wire holder
Wire holder
IH box assembly
Hook
Hook
Screw
Screws
IH box assembly
