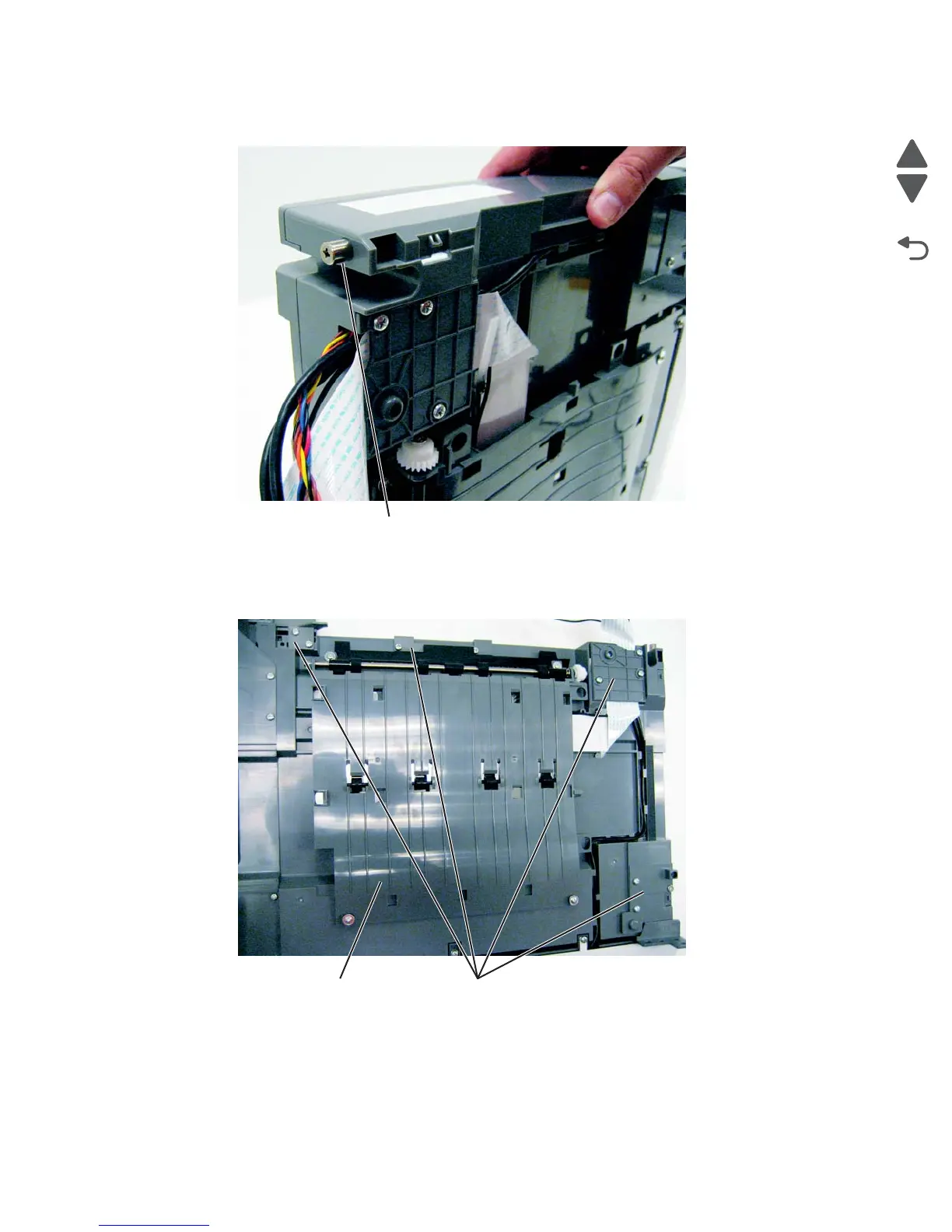

21. Remove the steel hinge stud (K). Save this for use on the replacement flatbed.

22. Remove the redrive unit (L). See “Redrive unit removal” on page 4-93.

23. Remove the cable cover plates and scanner homing plates (M). These will be used on the replacement

flatbed unit.

Warning: When replacing the rear cable cover plate, the cables must be routed as shown above. Failure

to do so could damage the cables and lead to possible paper skews and jamming.
