Repair information 4-81

7525-63x

Go Back

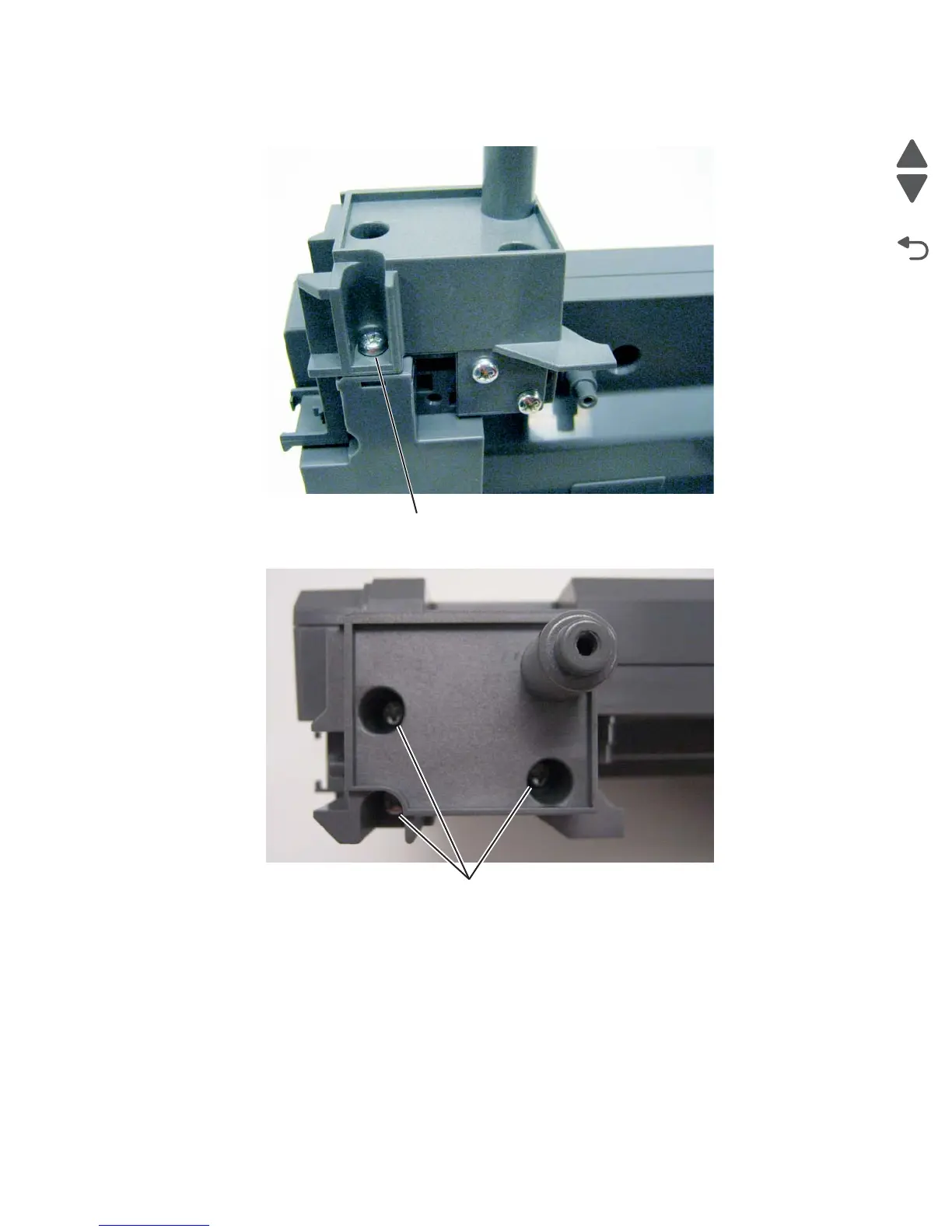

24. Remove the screws (N) securing the flatbed link to the flatbed.

25. Remove the flatbed link. It will be used on the replacement flatbed unit.

Note: The redrive, cable covers, operator panel assembly, scanner flatbed guides, op panel cable, and

USB cable need to be transferred to the replacement flatbed unit.
