Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 184

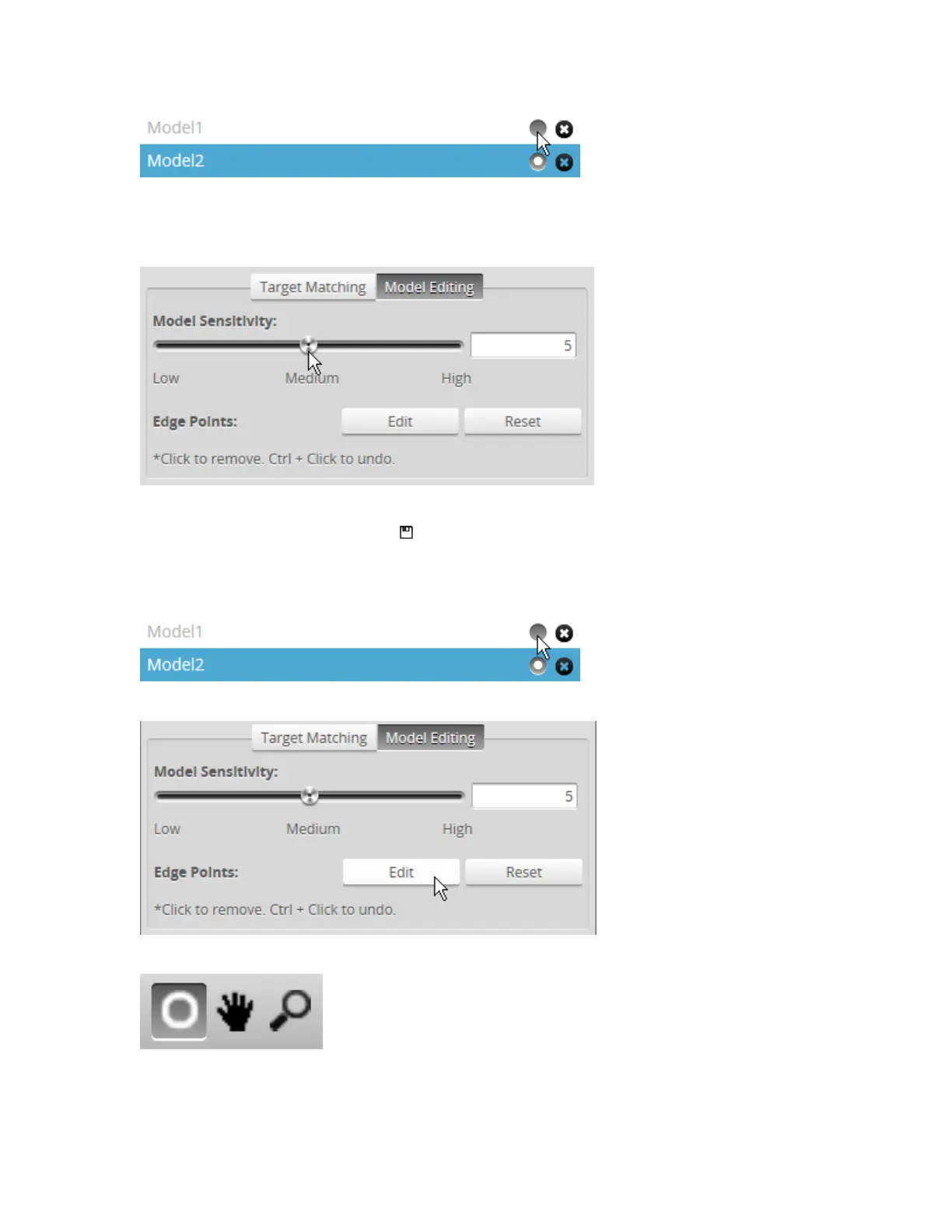

2. Click the Model Editing tab.
3. Adjust the Model Sensitivity slider to exclude noise and to properly detect the distinguishing features that
will match parts.
You can also set the sensitivity value manually in the provided text box.
4. Save the job by clicking the Save button .
To manually remove model edge points:
1. In the Models list, select the model you want to configure by clicking on its selection control.
2. In the Model Editing tab, click on the Edit button.
3. On the toolbar above the data viewer, make sure the Select tool is active.
4. Click in the data viewer and hold the mouse button while moving the pointer over the edge points you want
to remove.
