Bounding Box
The Bounding Box tool provides measurements related to the smallest box that contains the part (for
example, X position, Y position, width, length, etc.).
A bounding box can be vertical or rotated. A vertical bounding box provides the absolute position from
which the Position centroids tools are referenced.
The vertical bounding box X and Y correspond to the part frame of reference origin. For this reason
all X and Y measurements (except Bounding Box Global X and Global Y) are referenced to this point
when Frame of Reference on the Part Detection panel is set to Part. See Part Detection on page
153 for more information.

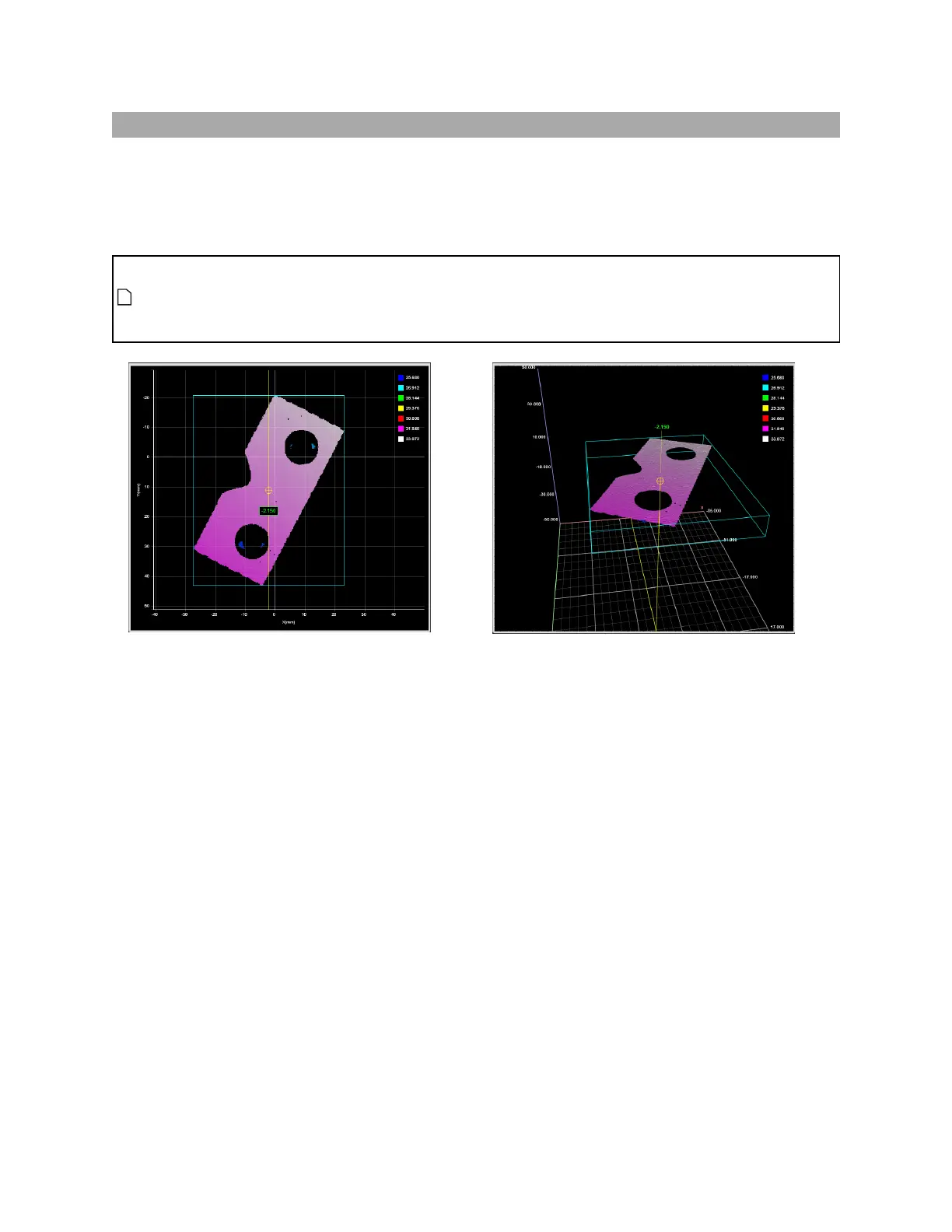

2DView
