Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 252

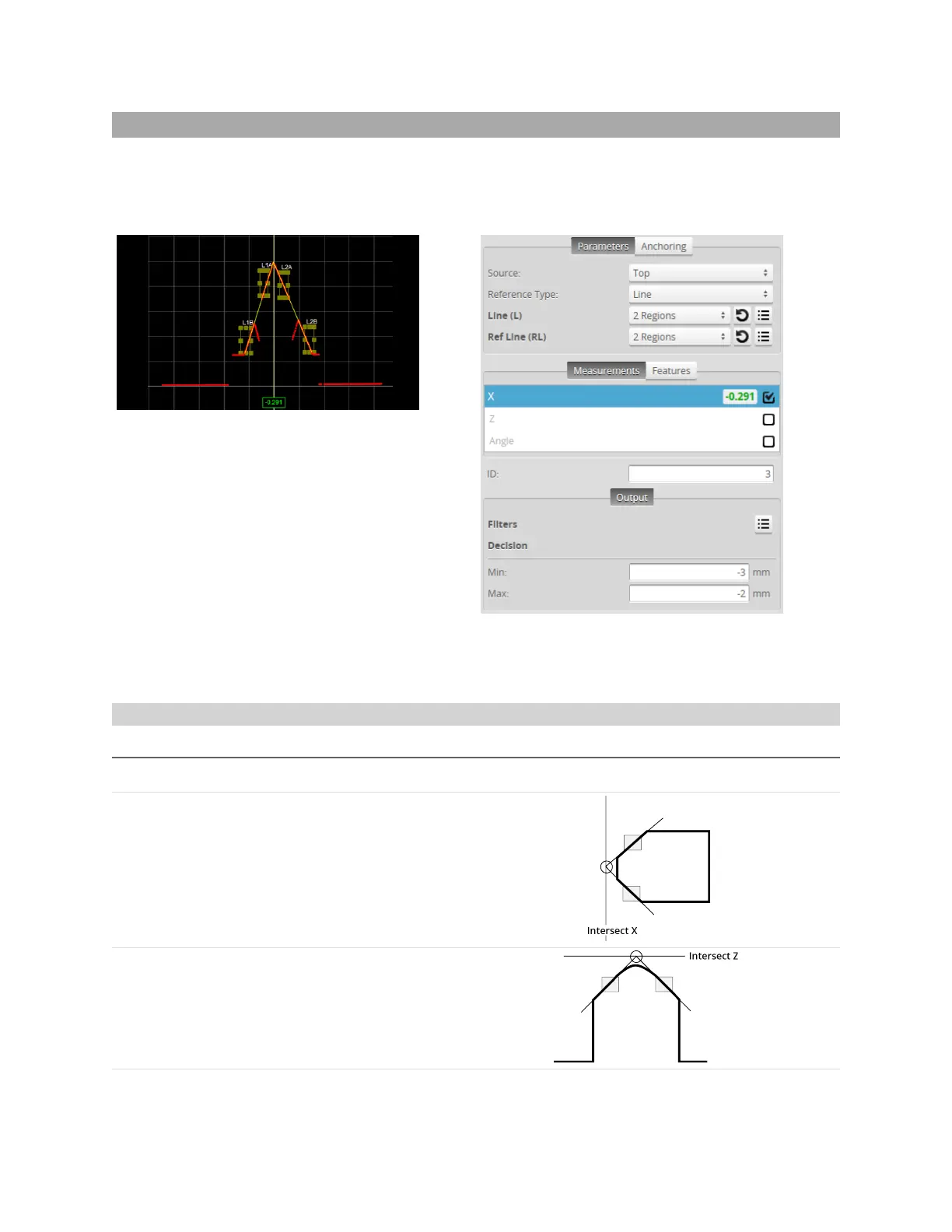

Intersect
The Intersect tool determines intersect points and angles.
The Intersect tool's measurements require two fit lines, one of which is a reference line set to the X axis (z
= 0), the Z axis (x = 0),or a user-defined line.
For information on adding, managing, and removing tools and measurements, as well as detailed
descriptions of settings common to most tools, see Tools Panel on page 198.
Measurements, Features, and Settings
Measurement Illustration
X
Finds the intersection between two fitted lines and
measures the X axis position of the intersection point.
Z
Finds the intersection between two fitted lines and
measures the Z axis position of the intersection point.
Measurements
