Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 329
Measurements, Features, and Settings

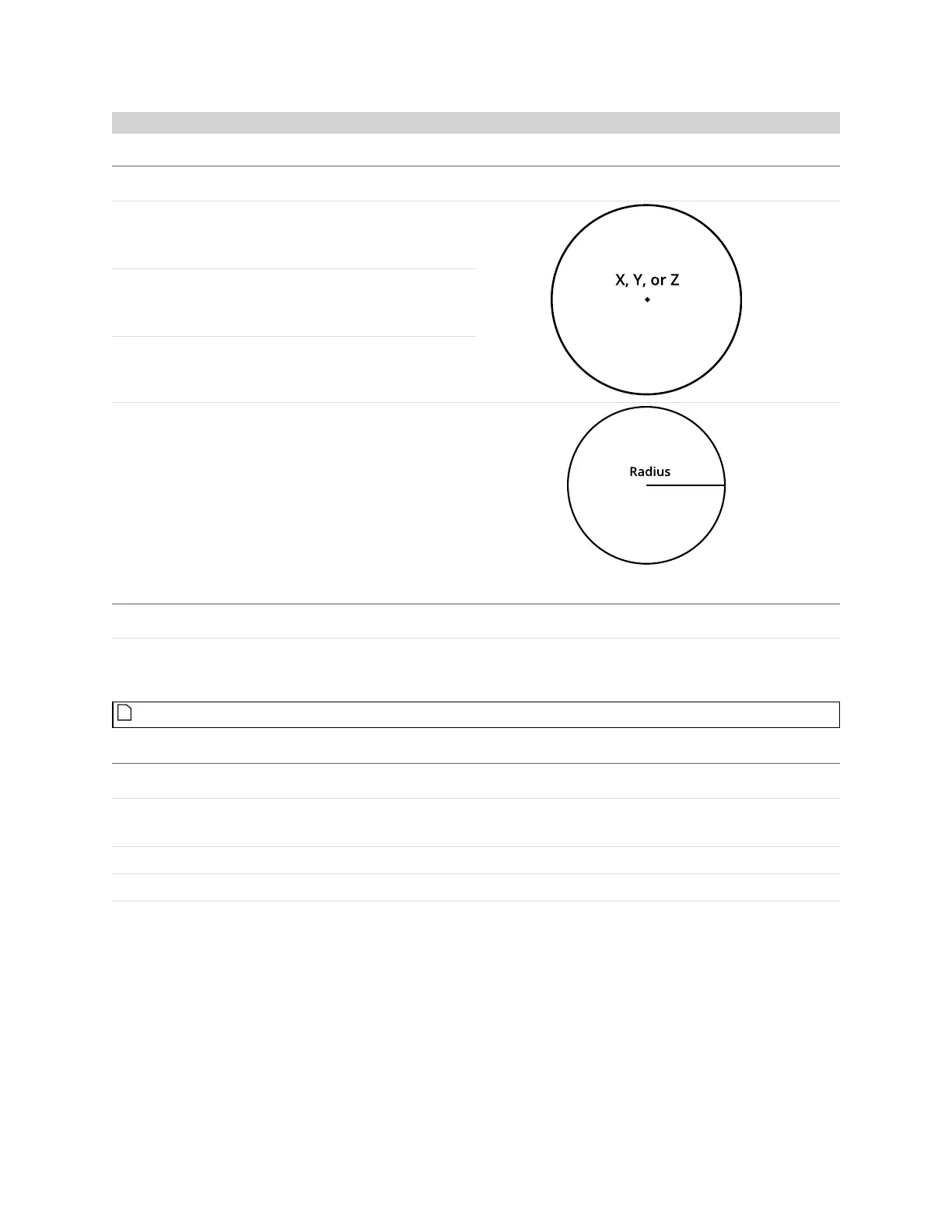

Measurement Illustration
X
Determines the X position of the hole center.
Y
Determines the Y position of the hole center.
Z
Determines the Z position of the hole center.
Radius
Determines the radius of the hole.
Measurements
Type Description
Center Point
The center point of the hole. The Z position of the center
point is at the Z position of the surrounding surface.
Features
For more information on geometric features, see Geometric Features on page 206.
Parameter Description
Source The sensor, or combination of sensors, that provides data for the tool's measurements. For
more information, see Source on page 201.
Nominal Radius Expected radius of the hole.
Radius Tolerance The maximum variation from the nominal radius (+/- from the nominal radius).
Parameters
