Gocator Line Profile Sensors: User Manual
Specifications • 756
Linearity Z is the worst case difference in average height measured, compared to the actual position over
the measurement range.
Resolution X is the distance between data points along the laser line.
Repeatability Z is measured with a flat target at the middle of the measurement range. It is the 95%
confidence variation of the average height over 4096 frames. Height values are averaged over the full
FOV.
See Resolution and Accuracy on page 55 for more information.
ALL 2500 SERIES MODELS
Scan Rate
2.4 kHz (2510 full field of view) / 1.6 kHz (2520 full field of view) to 10 kHz
Interface Gigabit Ethernet
Inputs Differential Encoder, Laser Safety Enable, Trigger
Outputs 2x Digital output, RS-485 Serial (115 kBaud)
Housing Gasketed aluminum enclosure, IP67
Input Voltage (Power) +24 to +48 VDC (15 W); Ripple +/- 10%
Operating Temp. 0 to 40° C
Storage Temp. -30 to 70° C
Mechanical dimensions, CD/FOV/MR, and the envelope for each sensor model are illustrated on the
following pages.

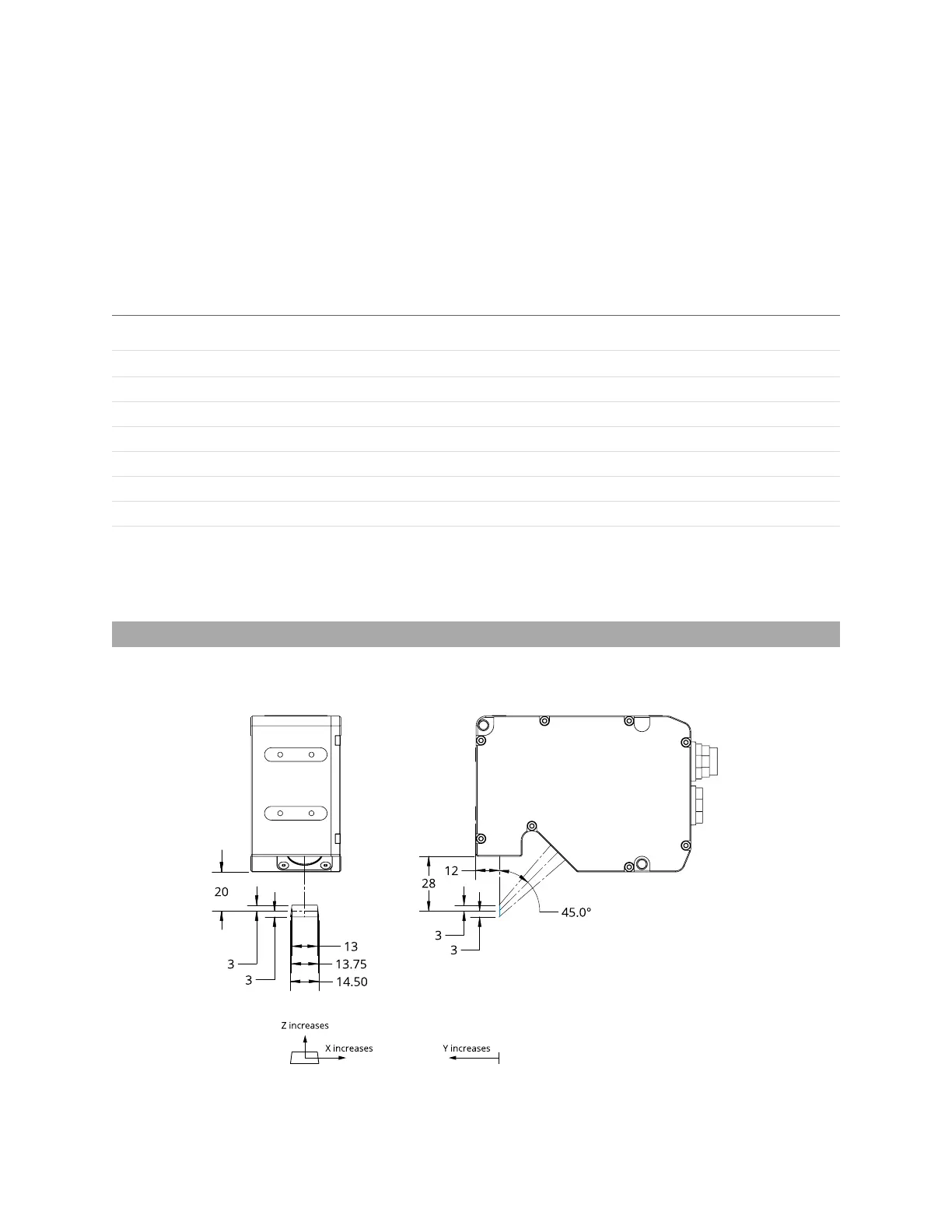

Gocator 2510
Field of View / Measurement Range / Coordinate System Orientation
