Gocator Web Interface • 343
Measurements, Features, and Settings

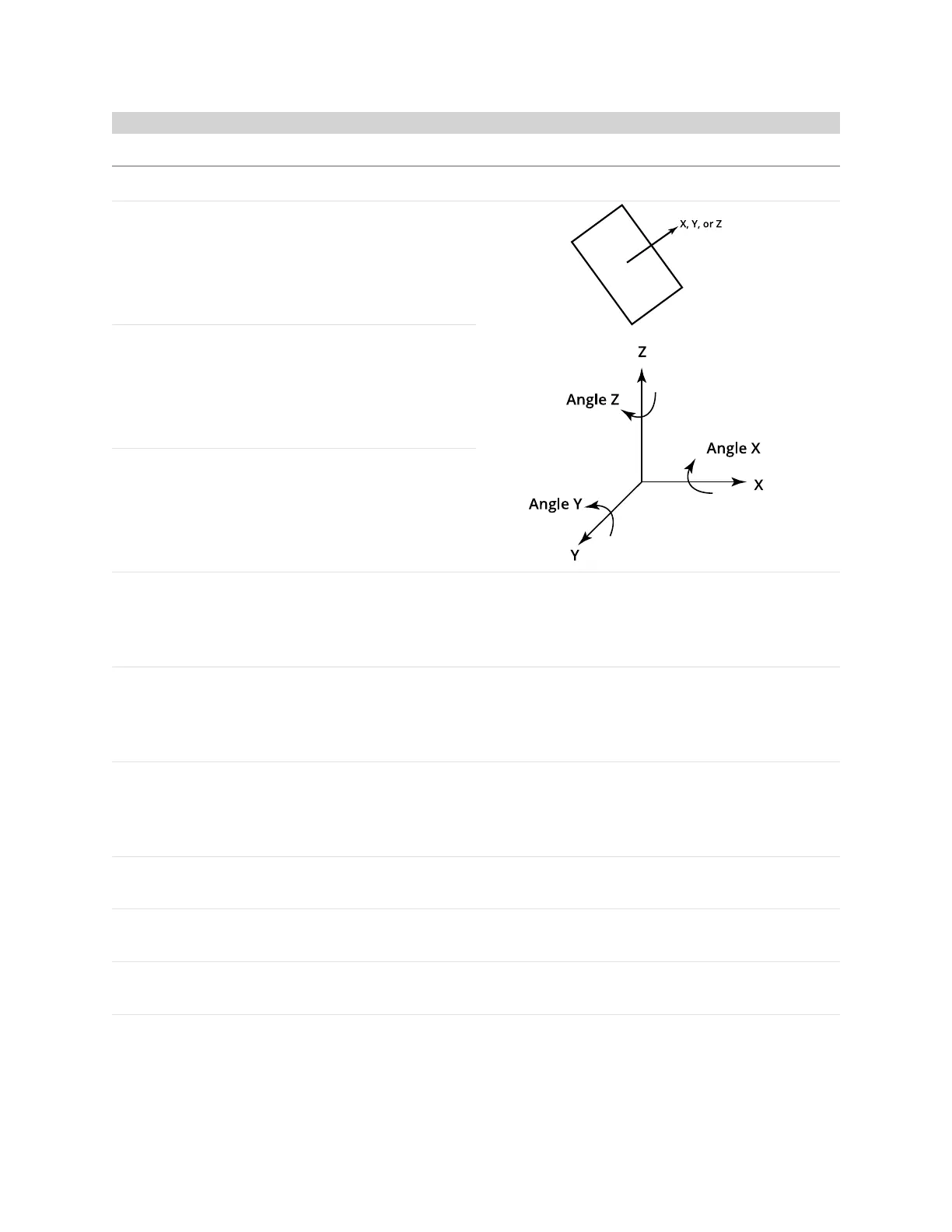

Measurement Illustration
Angle X
Determines the X angle of the surface with respect to the
alignment target.
Angle Y
Determines the Y angle of the surface with respect to the
alignment target.
Offset Z
Determines the Z value of intersection of the plane and the
Z axis.
Standard Deviation
Measures the standard deviation of the points of the
surface from the detected plane within the specified region
or regions.
Min Error
Measures the minimum error from the detected plane (the
maximum distance below the plane, perpendicular to the
plane) within the specified region or regions.
Max Error
Measures the maximum error from the detected plane (the
maximum distance above the plane, perpendicular to the
plane) within the specified region or regions.
XNormal
Returns the Xcomponent of the surface normal vector.
YNormal
Returns the Ycomponent of the surface normal vector.
ZNormal
Returns the Zcomponent of the surface normal vector.
Distance
Distance from the origin to the plane.
