Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 216
To remove an anchor from a tool:
1. Click on the anchored tool's Anchoring tab.
Select Disabled in the X, Y, or Z drop-down.
Enabling and Disabling Measurements
All of the measurements available in a tool are listed in the measurement list in the Tools panel after a
tool has been added. To configure a measurement, you must enable it.
To enable a measurement:
1. Go to the Scan page by clicking on the Scan icon.
2. Choose Profile or Surface mode in the Scan Mode panel.
If one of these modes is not selected, tools will not be available in the Measure panel.
3. Go to the Measure page by clicking on the Measure icon.

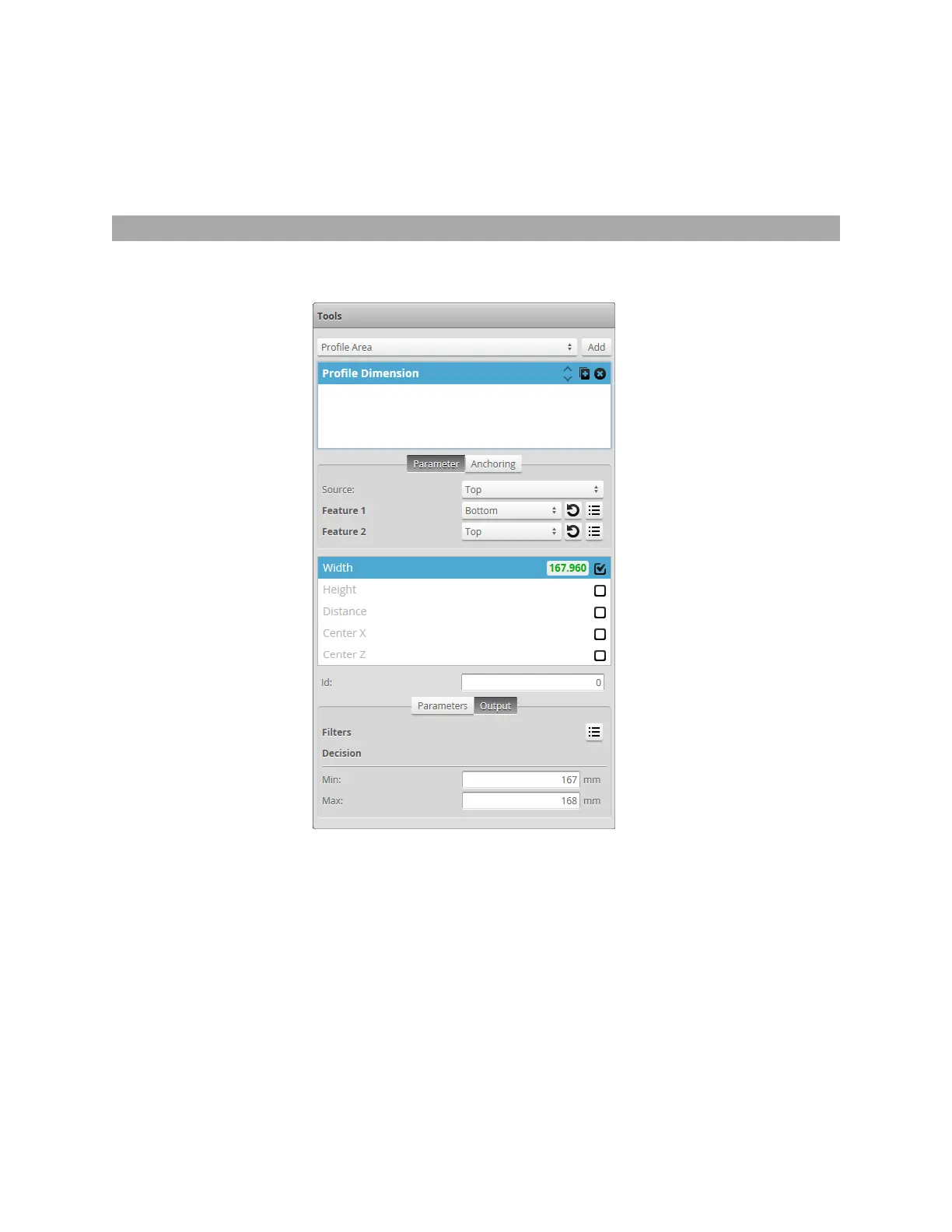

4. In the measurements list, check the box of the measurement you want to enable.
The measurement will be enabled and selected. The Output tab, which contains output settings will be
displayed below the measurements list. For some measurements, a Parameters tab, which contains
measurement-specific parameters, will also be displayed.
