Gocator Line Profile Sensors: User Manual
Specifications • 755
Gocator 2500 Series
The Gocator 2500 series consists of the following models:
MODEL 2510 2520
Data Points / Profile
1920 1920
Resolution X (µm)
(Profile Data Interval)
8.0 13.0 - 17.0
Linearity Z (+/- % of MR) 0.015% 0.006%
Repeatability Z (µm) 0.2 0.4
Clearance
Distance (CD) (mm)
17.0 47.5
Measurement
Range (MR) (mm)
6 25
Field of View (FOV) (mm) 13.0 - 14.5 25 - 32.5
Laser Classes
2 (blue, 405 nm) 2 (blue, 405 nm)
Dimensions (mm) 46x80x110 46x80x110
Weight (kg) 0.65 0.65

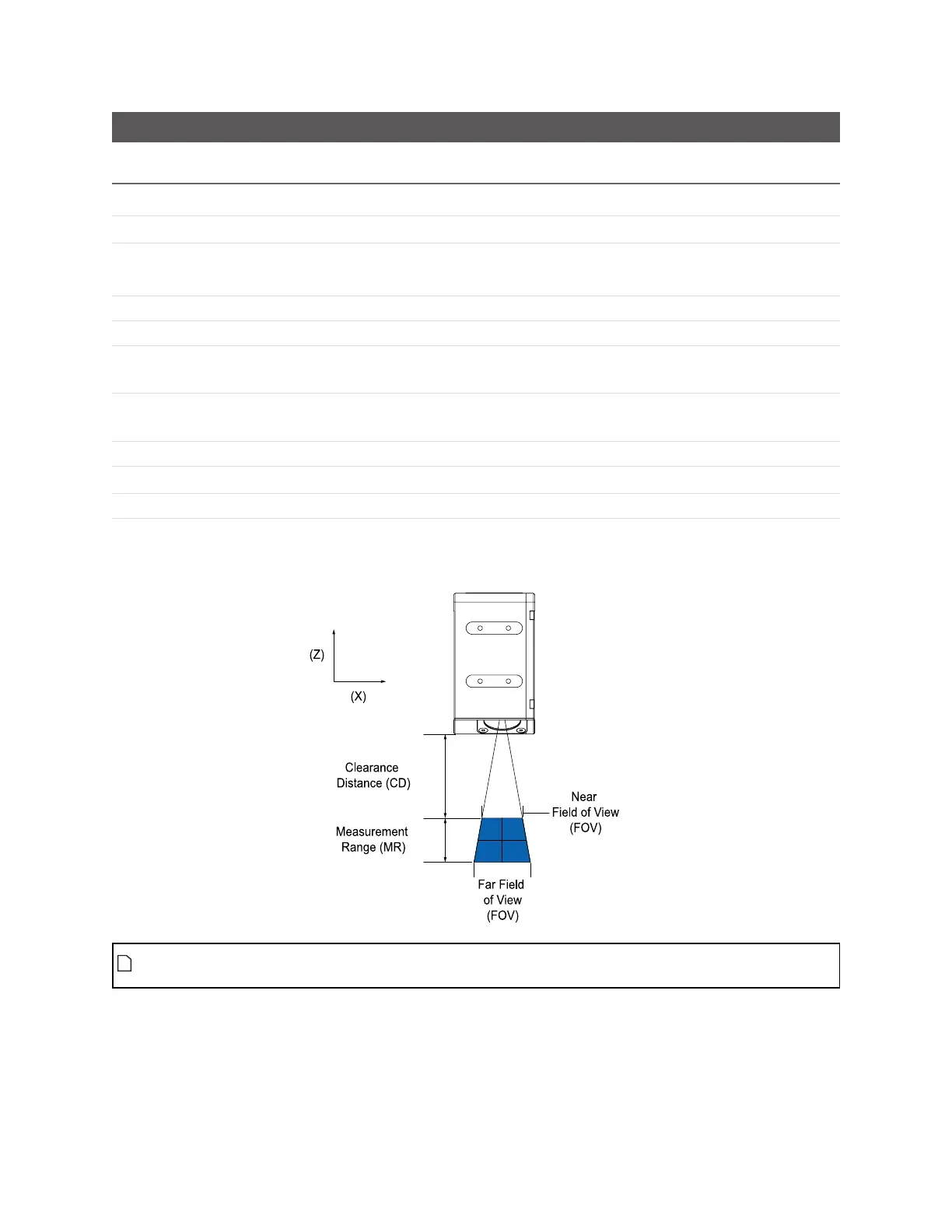

The following diagram illustrates some of the terms used in the table above.
Unlike other Gocator line profile sensors, the clearance distance for Gocator 2500 sensors is
measured from the lowest point of the sensor's housing, not the laser window.
Specifications stated are based on standard laser classes. Linearity Z and Repeatability Z may vary for
other laser classes.
All specification measurements are performed on LMI’s standard calibration target (a diffuse, painted
white surface).
