LMI Technologies Gocator 2500 Series User Manual

Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 312
Ellipse

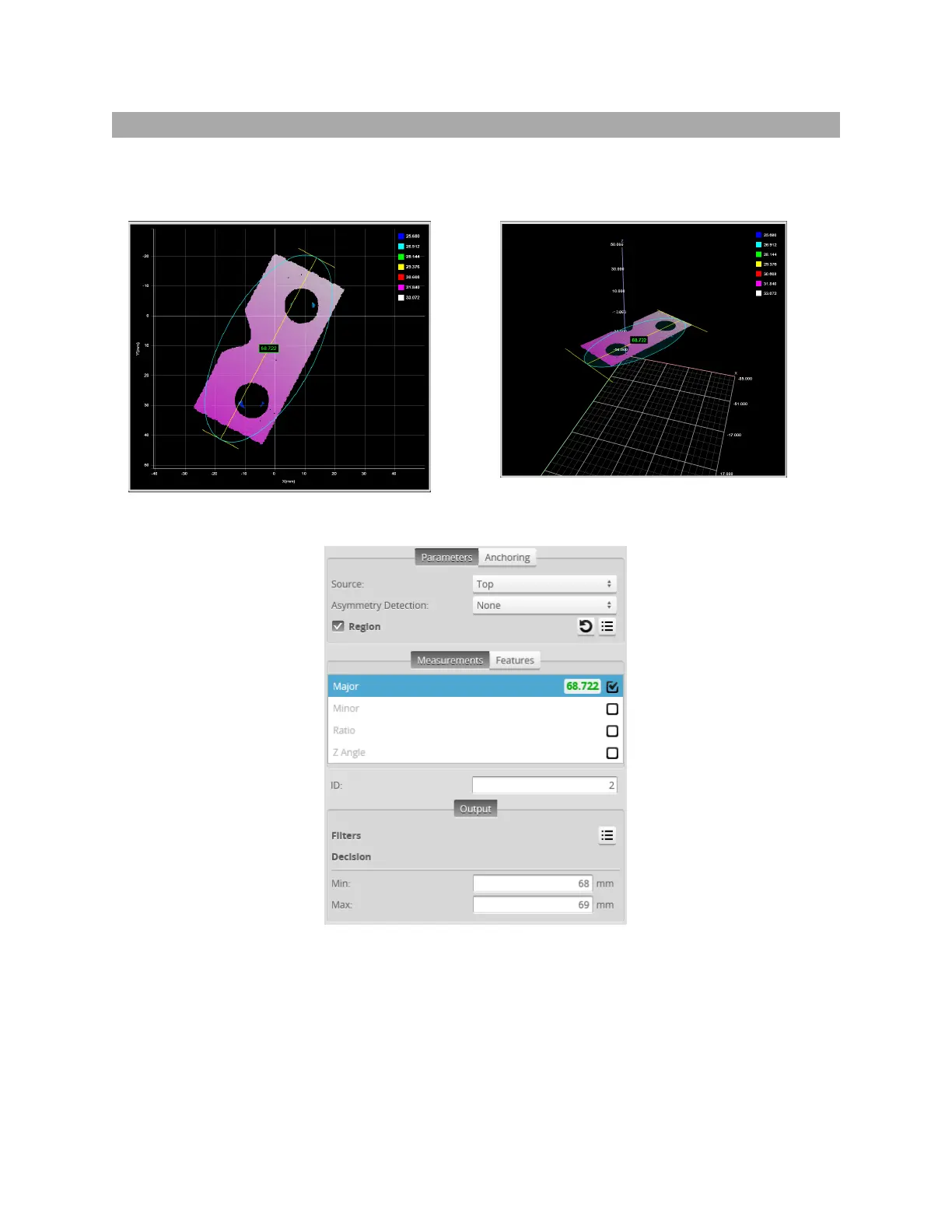

The Ellipse tool provides measurements for the major and minor axis lengths of an ellipse fitted to the
part's shape in the XY plane, and also for the ratio of the major and minor axis lengths and for the
orientation angle of the ellipse.
2DView
3DView
Measurement Panel
For information on adding, managing, and removing tools and measurements, as well as detailed
descriptions of settings common to most tools, see Tools Panel on page 198.
