Dimension

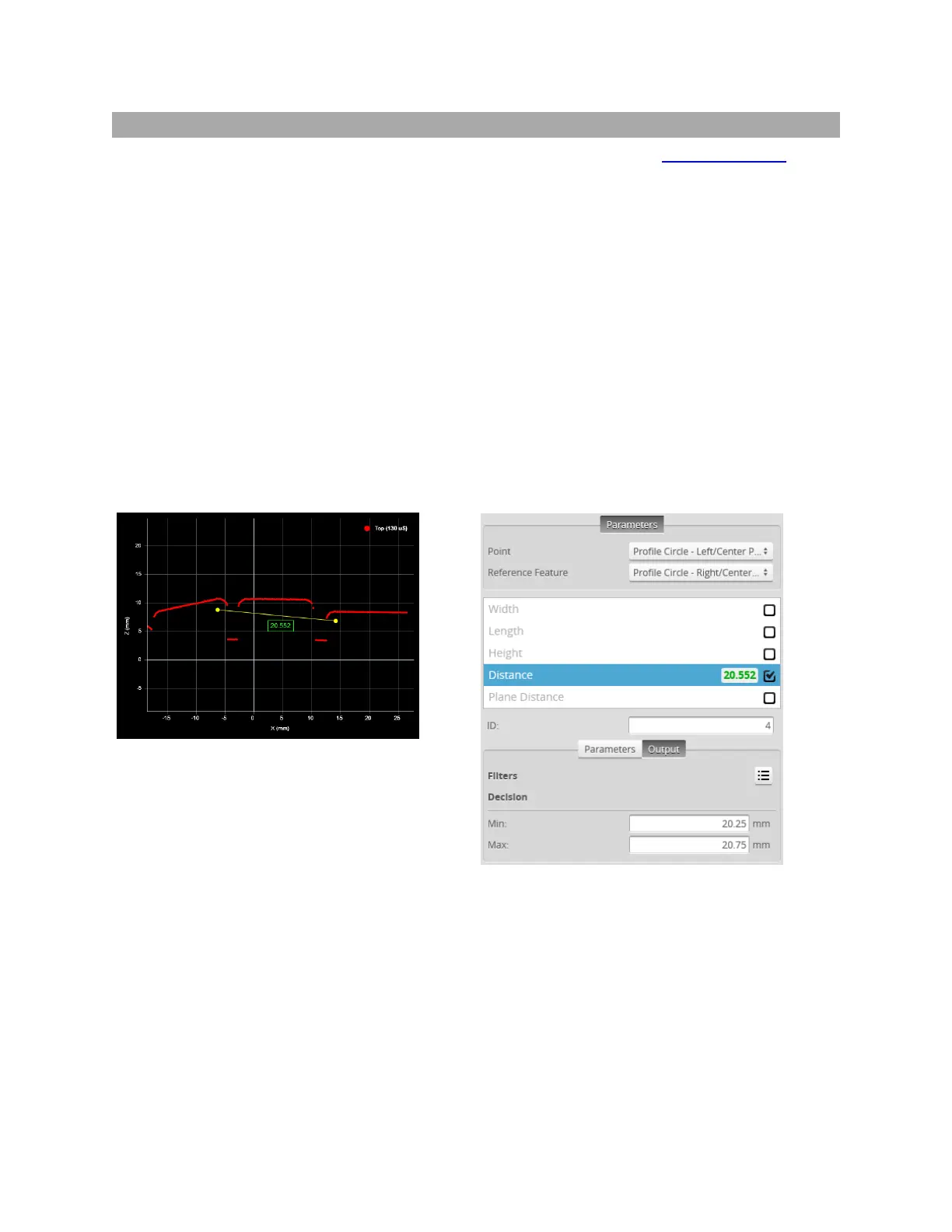

The Feature Dimension tool provides dimensional measurements from a point geometric feature to a
reference point, line, or plane geometric feature.
Some examples:
l Measuring the distance between the center of a hole and an edge.
l Measuring the distance between the centers of two holes.
l Measuring the distance between a point and a plane.
l Obtaining the length of a stud by measuring the distance between its tip and base.
Gocator compares the measurement value with the values in Min and Max to yield a decision. For more
information on decisions, see Decisions on page 208.
See Adding and Configuring a Measurement Tool on page 198 for instructions on how to add
measurement tools.
