Plane
The Plane tool provides measurements that report a plane's position and orientation (X Angle, Y Angle, Z
Offset, Normal, Distance), as well as the maximum and average deviations from the plane.
The Z offset reported is the Z position at zero position on the X axis and the Y axis.
The results of the Angle X and Angle Y measurements can be used to manually customize the tilt angle in
the Hole, Opening, and Stud tools.

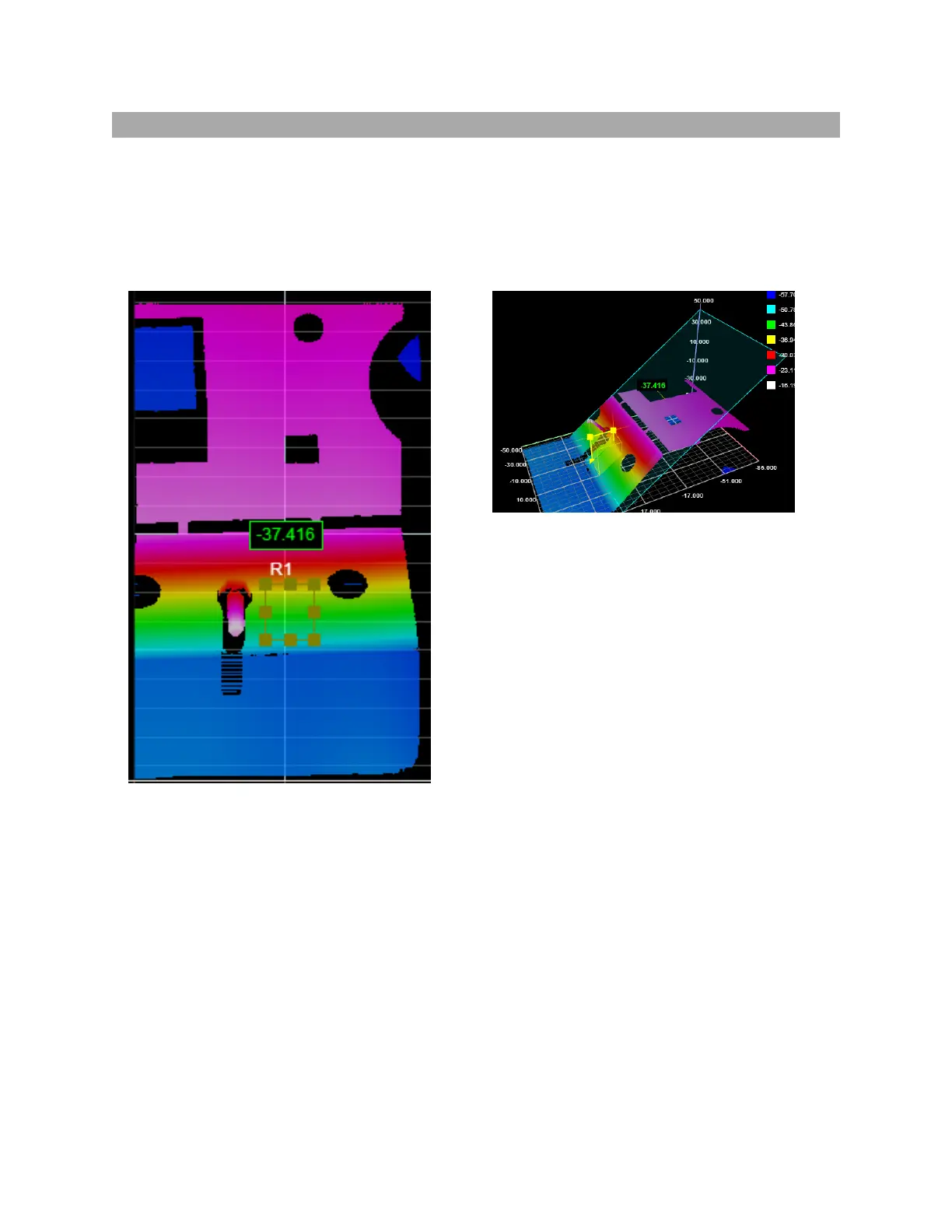

2DView
3DView
