Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 313
Measurements, Features, and Settings

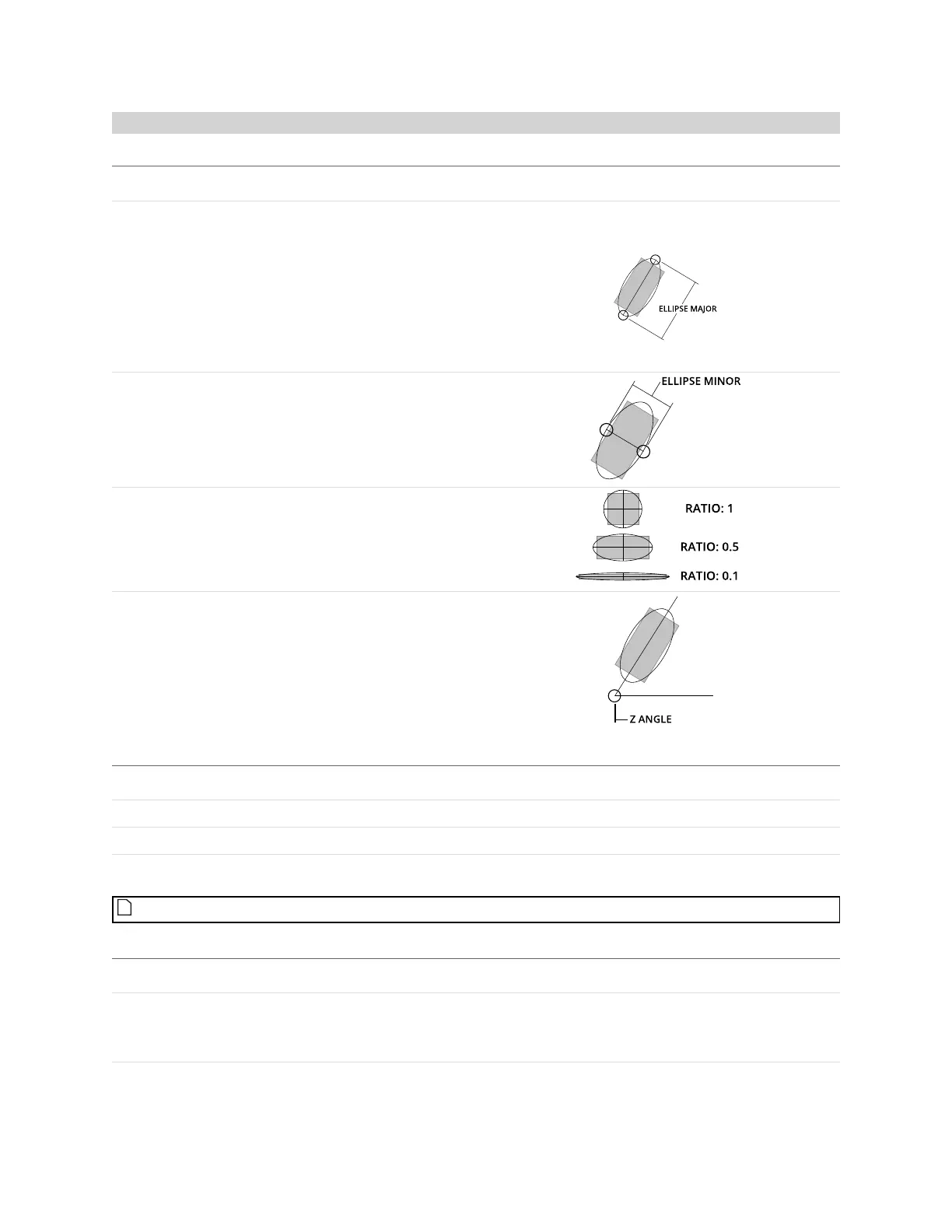

Measurement Illustration
Major
Determines the major axis length of an ellipse fitted to the
part's area in the XY plane.
Minor
Determines the minor axis length of an ellipse fitted to the
part's area in the XY plane.
Ratio
Determines the minor/major axis ratio of an ellipse fitted to
the part's area in the XY plane.
Z Angle
Determines the orientation angle of an ellipse fitted to the
part's area in the XY plane.
Measurements
Type Description
Center Point
The center point of the fitted ellipse.
Major Axis A line representing the major axis of the fitted ellipse.
Minor Axis A line representing the minor axis of the fitted ellipse.
Features
For more information on geometric features, see Geometric Features on page 206.
Parameter Description
Source The sensor, or combination of sensors, that provides data
for the tool's measurements. For more information, see
Source on page 201.
Parameters
To Next Page
