Gocator Line Profile Sensors: User Manual
Getting Started • 24

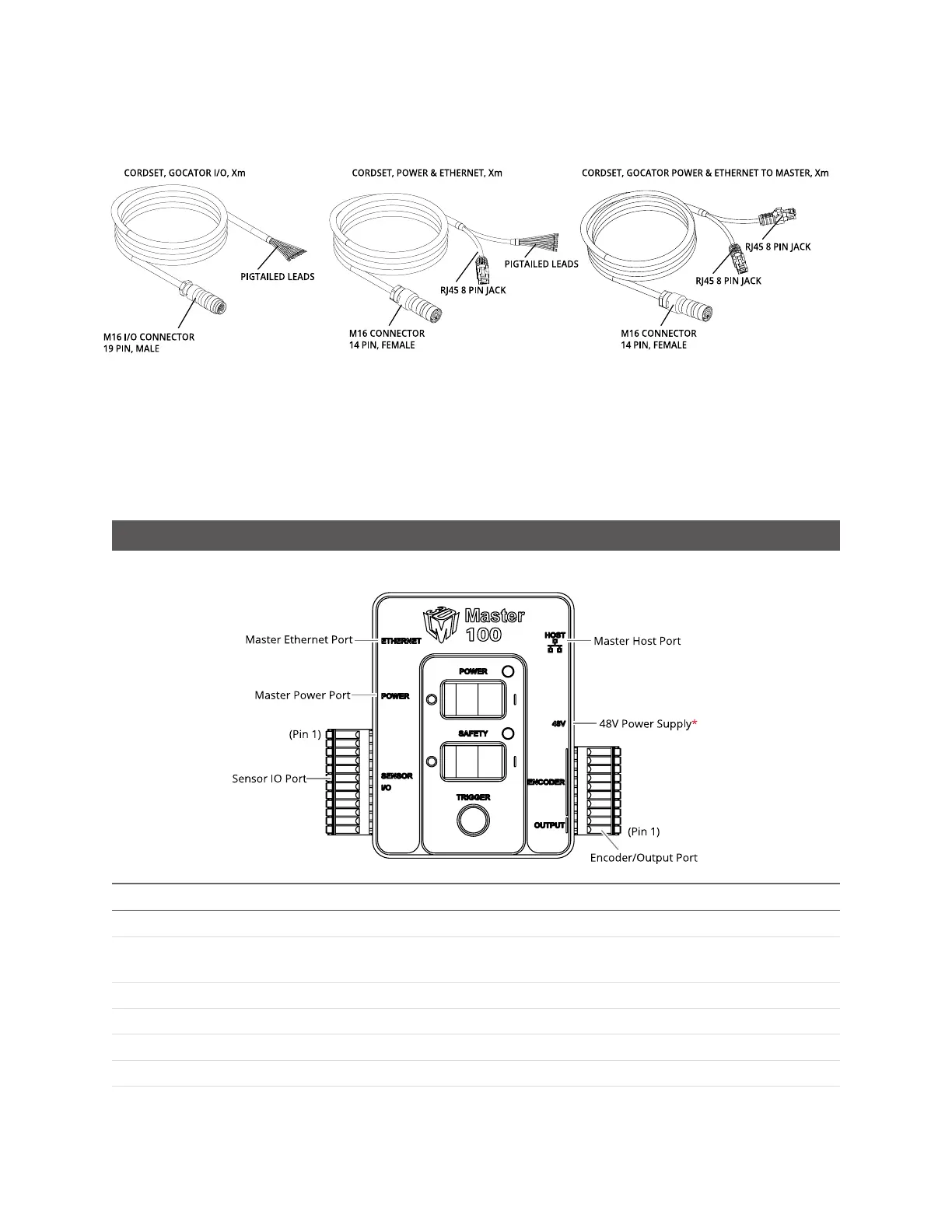

The Gocator I/O cordset provides digital I/O connections, an encoder interface, RS-485 serial connection,
and an analog output.
The maximum cordset length is 60 m.
See Gocator I/O Connector on page 768 and Gocator Power/LAN Connector on page 766 for pinout
details.
See Accessories on page 791 for cordset lengths and part numbers. Contact LMI for information on
creating cordsets with customized lengths and connector orientations.
Master 100
The Master 100 is used by Gocator sensors for standalone system setup (that is, a single sensor).
Item Description
Master Ethernet Port Connects to the RJ45 connector labeled Ethernet on the Power/LAN to Master cordset.
Master Power Port Connects to the RJ45 connector labeled Power/Sync on the Power/LAN to Master
cordset. Provides power and laser safety to the Gocator.
Sensor I/O Port Connects to the Gocator I/O cordset.
Master Host Port Connects to the host PC's Ethernet port.
Power Accepts power (+48 V).
Power Switch Toggles sensor power.
