Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 90

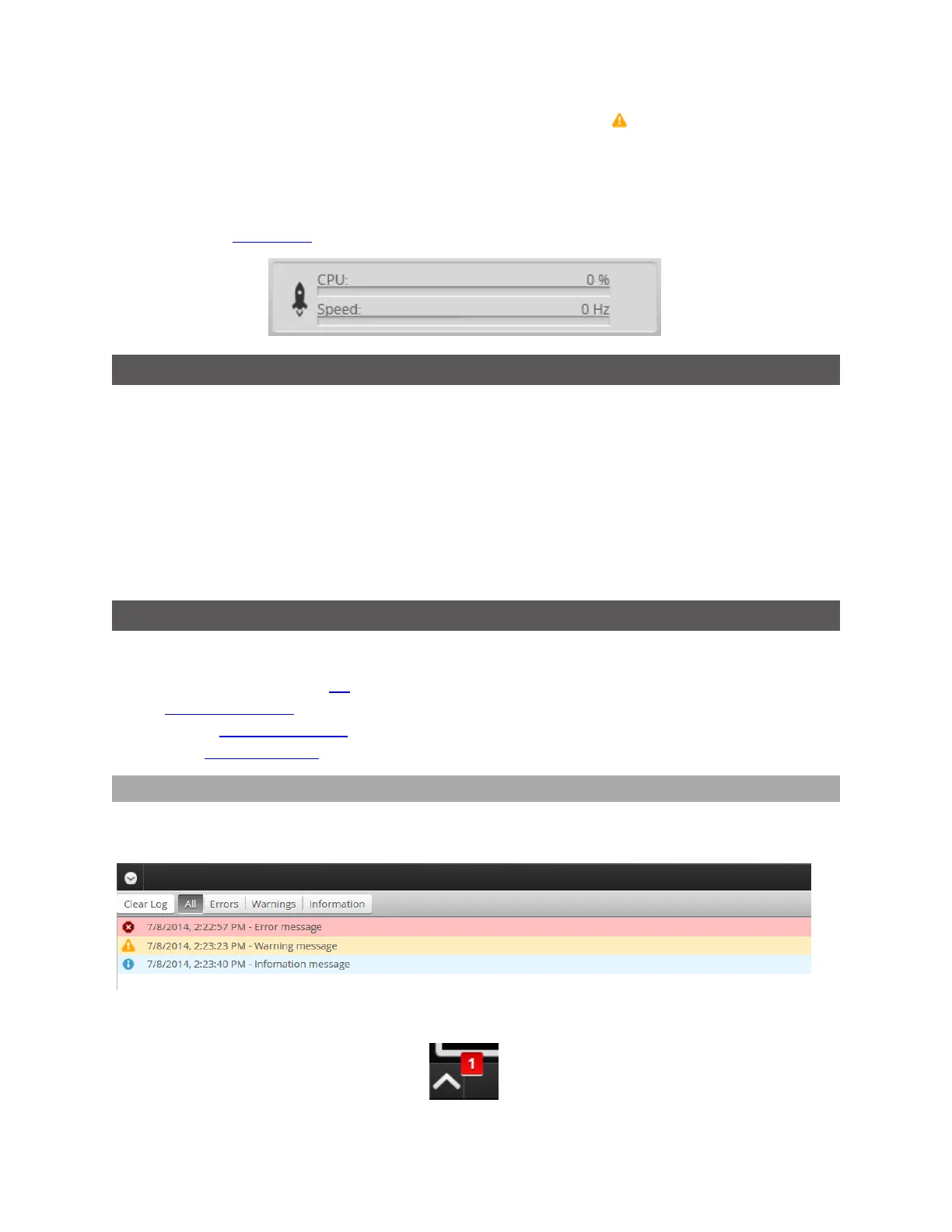

The Speed bar displays the frame rate of the sensor. A warning symbol ( ) will appear next to it if
triggers (external input or encoder) are dropped because the external rate exceeds the maximum frame
rate.
Open the log for details on the warning. For more information on logs, see Log below.
When a sensor is accelerated a "rocket"icon appears in the metrics area.
Data Viewer
The data viewer is displayed in both the Scan and the Measure pages, but displays different
information depending on which page is active.
When the Scan page is active, the data viewer displays sensor data and can be used to adjust the active
area and other settings. Depending on the selected operation mode (page 116), the data viewer can
display video images, profiles, sections, or surfaces. For details, see Data Viewer on page 160.
When the Measure page is active, the data viewer displays sensor data onto which representations of
measurement tools and their measurements are superimposed. For details, see Data Viewer on page
197.
Status Bar
The status bar lets you do the following:
l See sensor messages in the log.
l See frame information.
l Change the interface language.
l Switch to Quick Edit mode.
Log
The log, located at the bottom of the web interface, is a centralized location for all messages that the
Gocator displays, including warnings and errors.
A number indicates the number of unread messages:
