Gocator Line Profile Sensors: User Manual
Getting Started • 43
System Setup

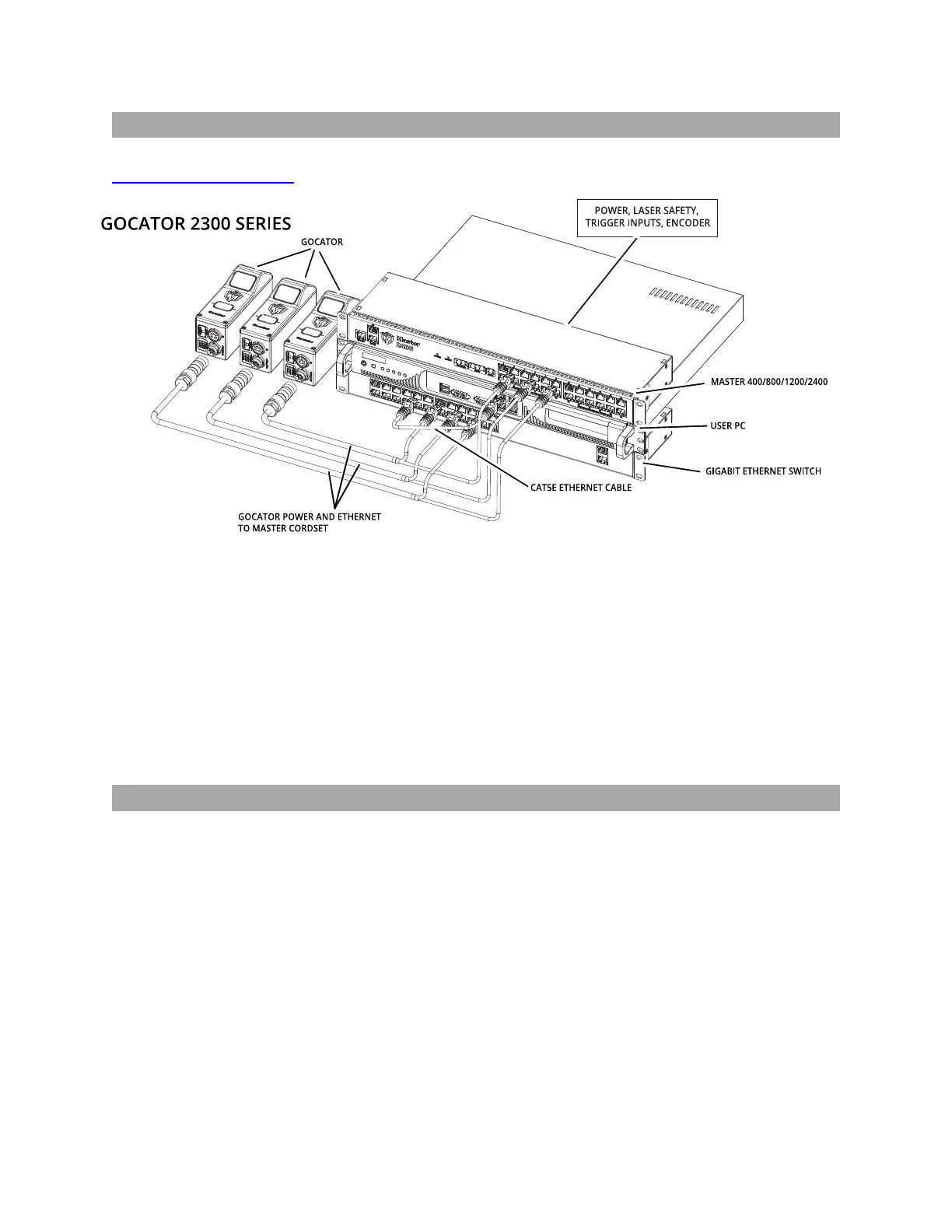

A typical Gocator 2375 system is set up as a multi-sensor system. The sensors are powered using a
Master network controller (excluding Master 100).
To connect a Gocator 2375:
1. Connect the Power and Ethernet to Master cordset to the Power/LAN connector on the sensor.
2. Connect the RJ45 jack labeled Power to an unused port on the Master.
3. Connect the RJ45 jack labeled Ethernet to an unused port on the switch.
4. Repeat the steps above for each sensor.
See Master 400/800 on page 775 and Master 1200/2400 on page 788 for more information on how to
install a Master.
Software Configuration
Each sensor is shipped with a default IP address of 192.168.1.10. Before you add a sensor to a multi-
sensor system, its firmware version must match that of the other sensors, and its IP address must be
unique.
To configure a Gocator 2375 for the first time:
1. Set up the sensor’s IP address.
a. Follow the steps in Running a Standalone Sensor System on page 48.
b. Make sure that there is no other sensor in the network with the IP address 192.168.1.10.
2. Upgrade the firmware.
a. Follow the steps in Firmware Upgrade on page 111.
3. Set up profiling parameters.
