Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 244

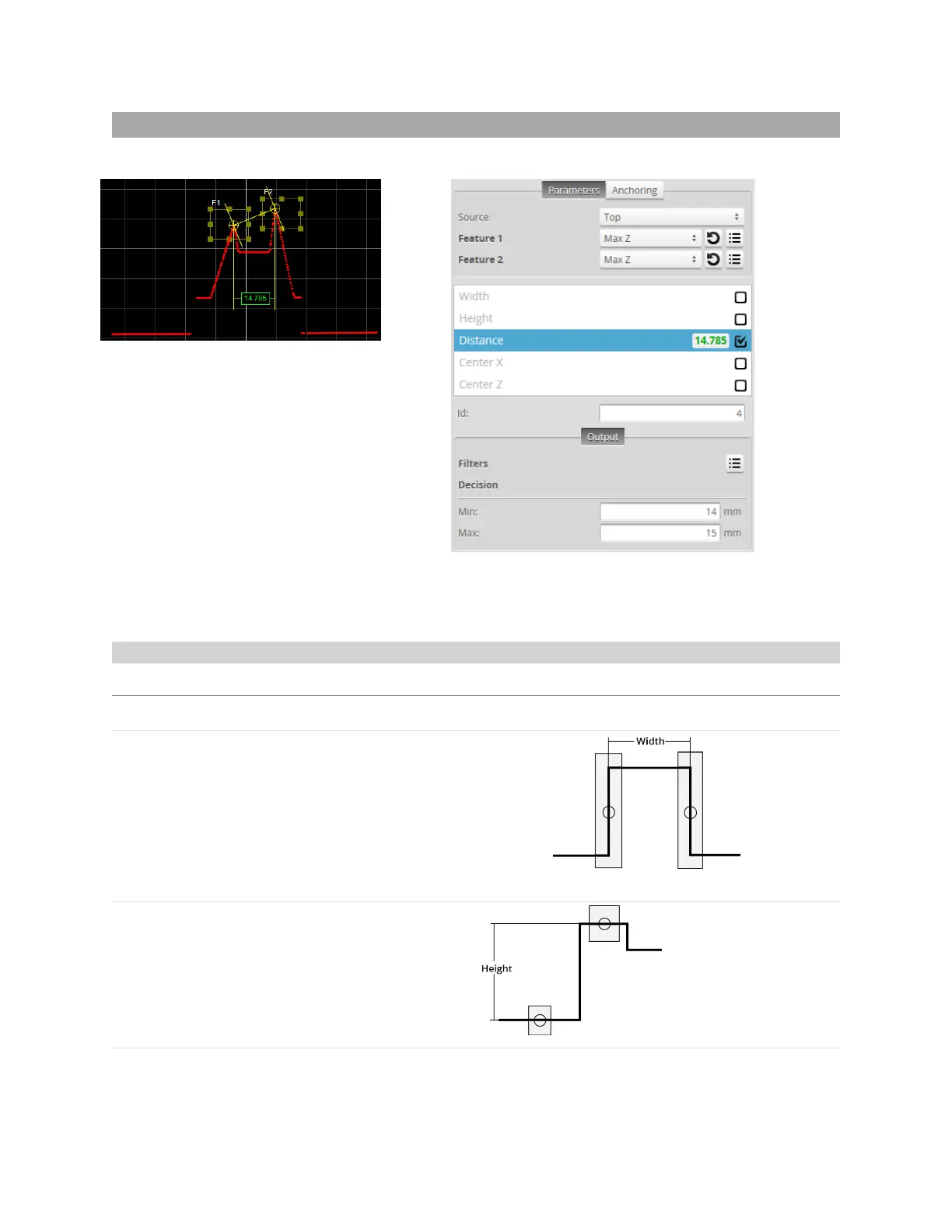

Dimension
The Dimension tool provides Width, Height, Distance, Center X, and Center Zmeasurements.
For information on adding, managing, and removing tools and measurements, as well as detailed
descriptions of settings common to most tools, see Tools Panel on page 198.
Measurements and Settings
Measurement Illustration
Width
Determines the difference along the X axis between two
feature points.
The difference can be calculated as an absolute or signed
result. The difference is calculated by:
Width = Feature 2
X position
– Feature 1
X position
Height
Determines the difference along the Z axis between two
feature points.
The difference can be expressed as an absolute or signed
result. The difference is calculated by:
Height = Feature 2
Z position
– Feature 1
Z position
Measurements
