Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 402
Vibration Correction
This tool is not supported on A and B revision Gocator 2100 and 2300 sensors. It will however
appear in emulator scenarios created using these sensors.
The Vibration Correction tool analyzes variation in surface data to remove high frequency noise in the
data. The tool is useful for improving repeatability and accuracy of measurements when subtle
vibrations in your transport system introduce height variations. The tool's intended use is to send
corrected surface data to other tools.
The Vibration Correction tool requires at least 64 lines of data in the surface data it receives as
input to be able to output corrected surface data.

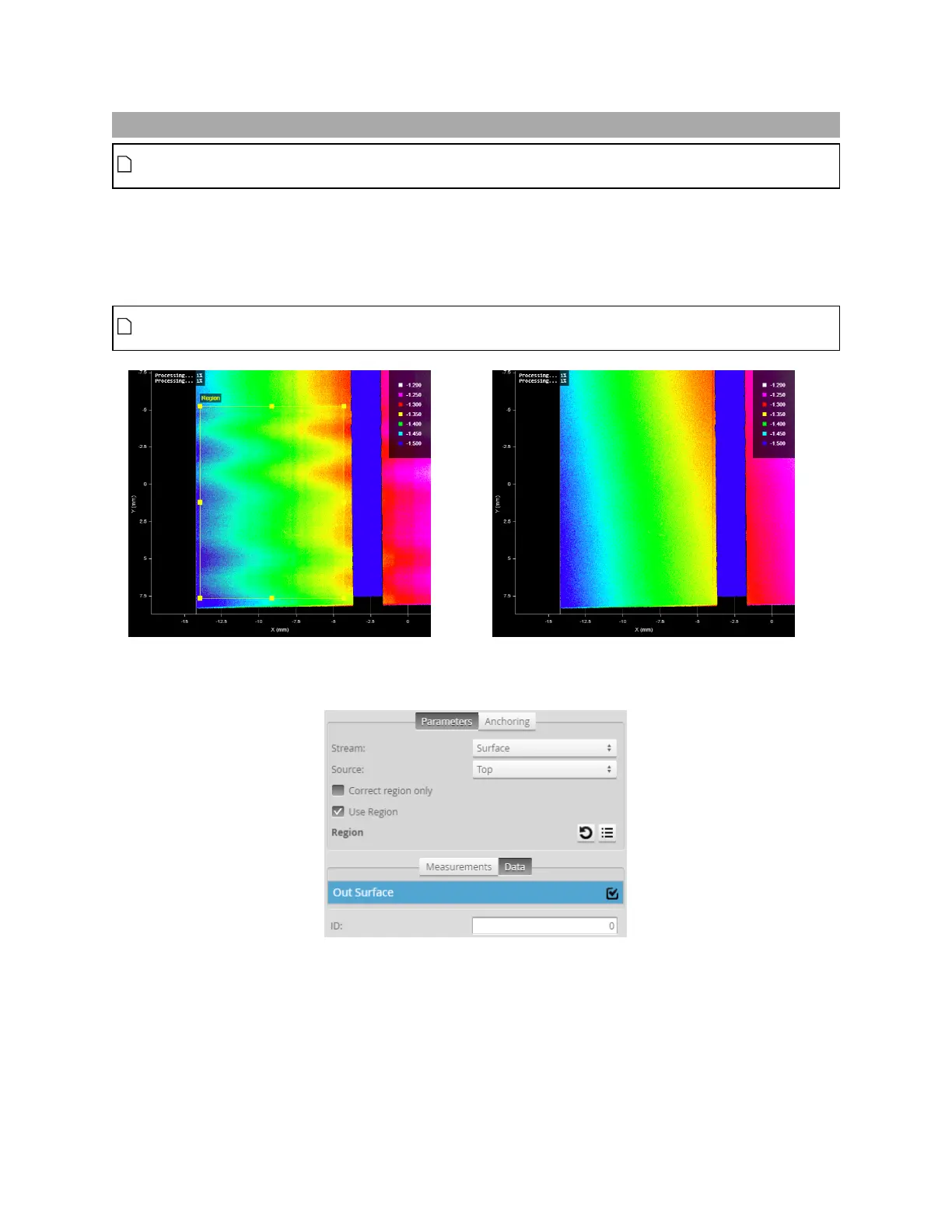

Uncorrected surface data Corrected surface data:a better
representation of the actual target
Measurement Panel
For information on adding, managing, and removing tools and measurements, as well as detailed
descriptions of settings common to most tools, see Tools Panel on page 198.
