Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 385
Parameter Description
Nominal Area The expected cross-sectional area under the rulers on the track.
Area Tolerance The tolerance applied to the nominal area.
Offset Tolerance The maximum allowed distance between the center (highest) pointon a ruler and the
path. This setting applies to the center point.

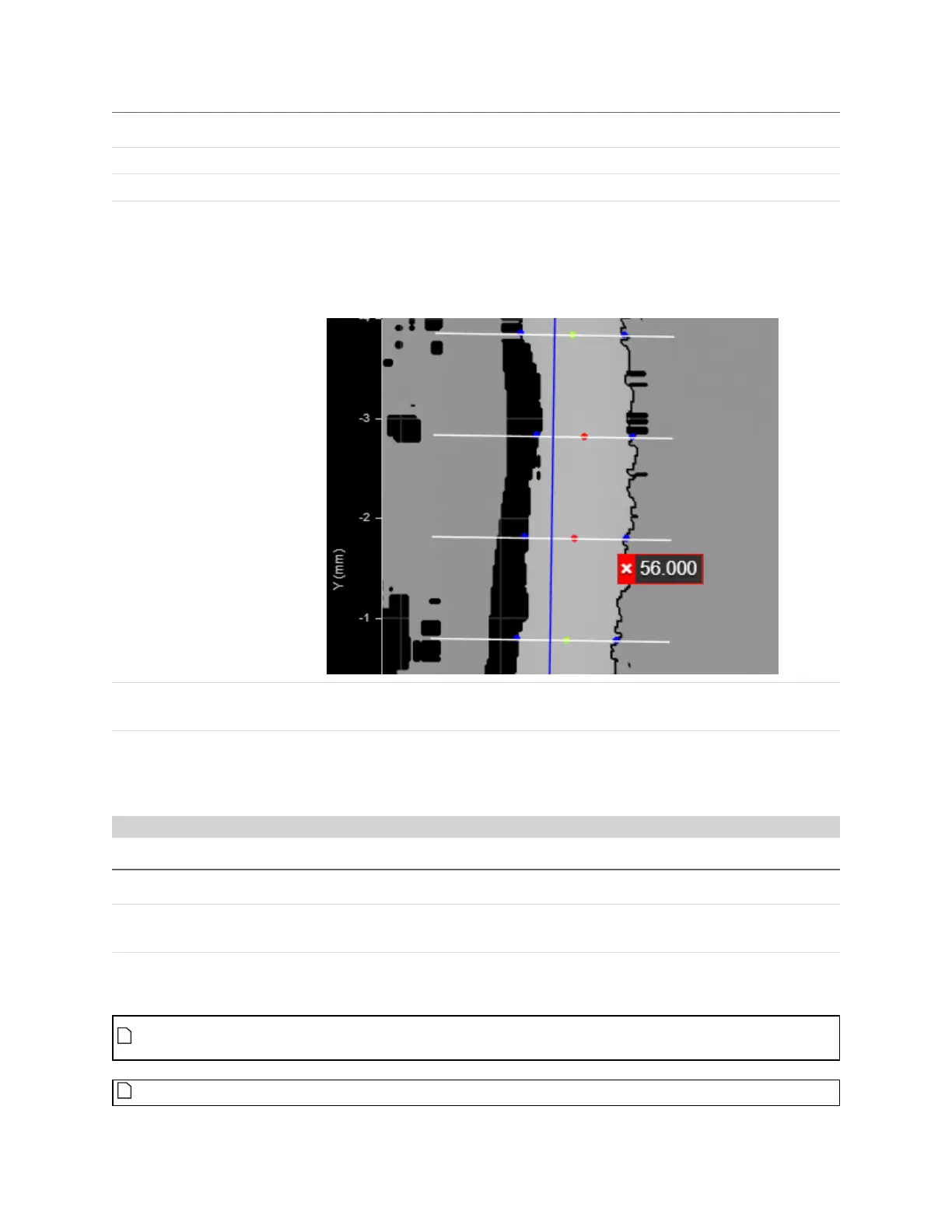

In the following, the top and bottom center points (green) are at an acceptable
distance from the blue path. The red center points fail because they are too far from
the path. The track is lighter grey than the surrounding surface.
Filters The filters that are applied to measurement values before they are output. For more
information, see Filters on page 209.
Decision The Max and Min settings define the range that determines whether the
measurement tool sends a pass or fail decision to the output. For more information,
see Decisions on page 208.
Anchoring
Anchor Description
X, Y, or Z Lets you choose the X, Y, or Z measurement of another tool
to use as a positional anchor for this tool.
Z angle Lets you choose the Z Angle measurement of another tool to
use as an angle anchor for this tool.
Anchoring
A measurement must be enabled in the other tool for it to be available as an anchor. The anchor
measurement should also be properly configured before using it as an anchor.
For more information on anchoring, see Measurement Anchoring on page 211.
